Greenwood Reserve #2

The following are photos of the construction progress on the Greenwood Reserve #2 Site.

Click on photos to enlarge:

Insulation at R-50 value for increased comfort and energy & utility savings

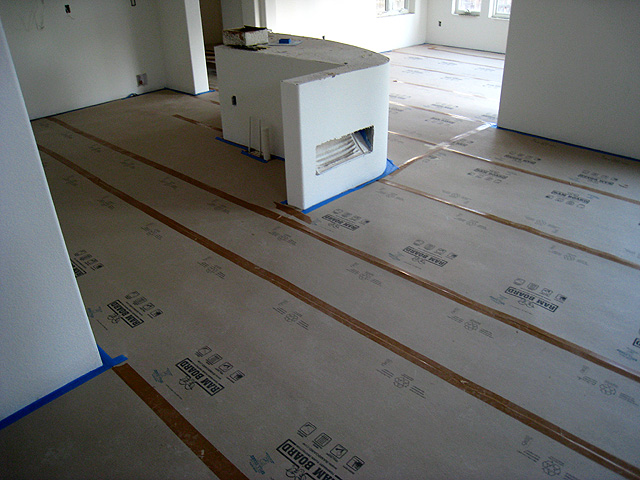

Completed hardwood floors protected with Ram Board
Medium knock down texture
Bathroom floor tiles

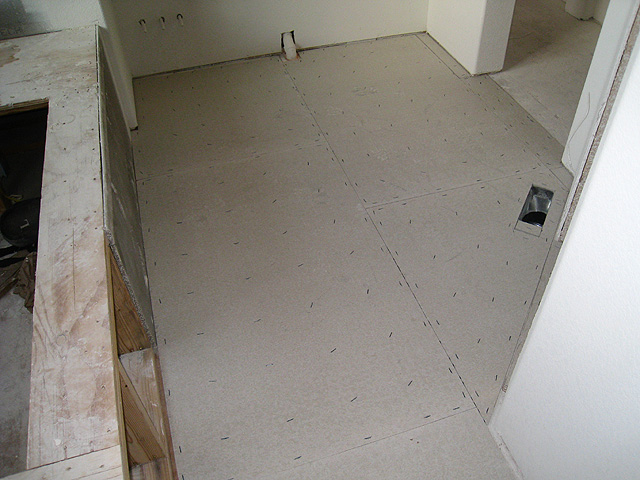

Hardibacker in master bathroom for higher quality of tile installation
Floor in kitchen being installed
Engineered hardwood floor in study
Engineered hardwood floor installation in great room in progress
Interior trim & interior doors on racking system for better inventory storage
Future dog door
Backing support for planter box

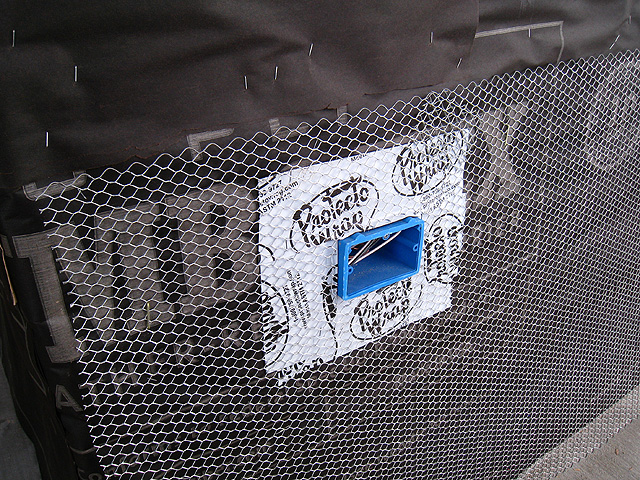

Jumbotex double paper and wire mash in preparation of stucco scratch coat

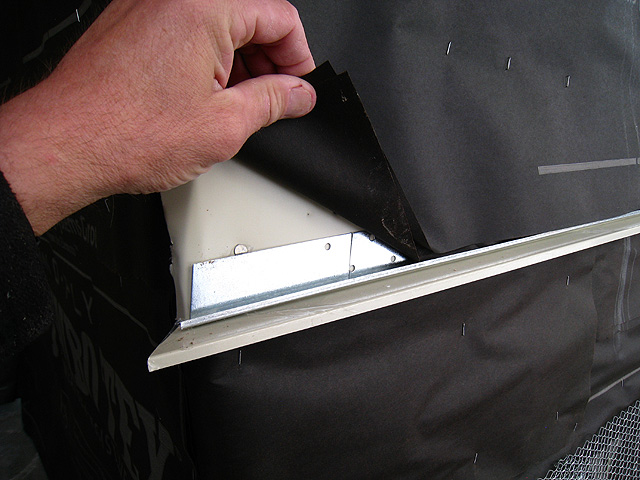

Flashing, J metal, double paper under stucco for moisture control

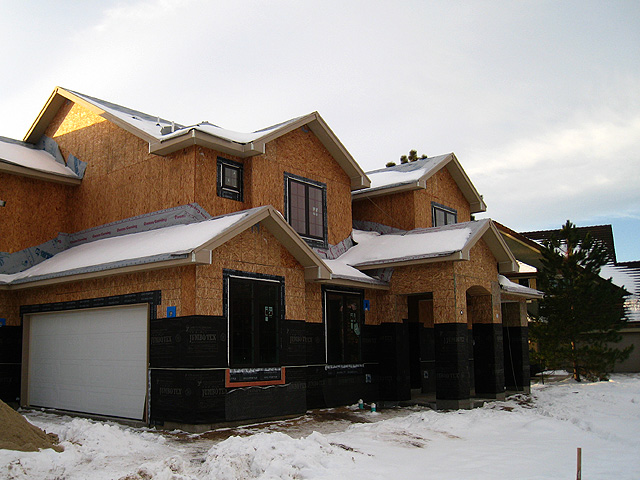

Front of house with finished fascias

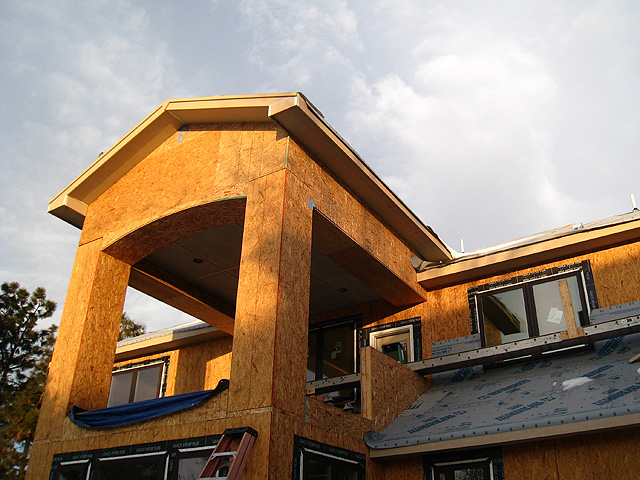

Fascias on rear gable

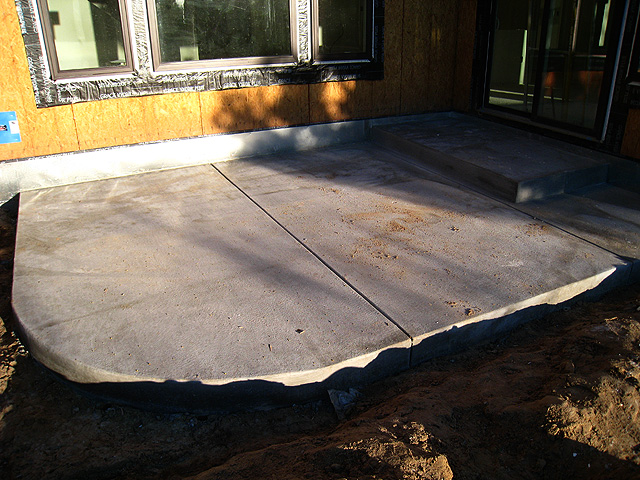

Rear concrete patio is placed with moisture and flashing control at wall
Fascias at front gables

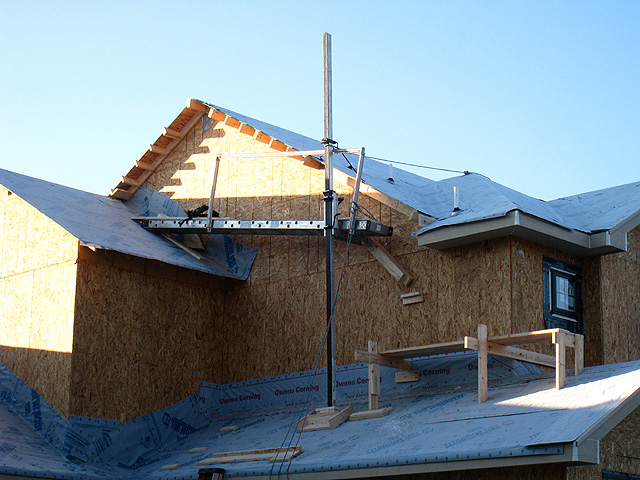

Scaffold ready for fascia work

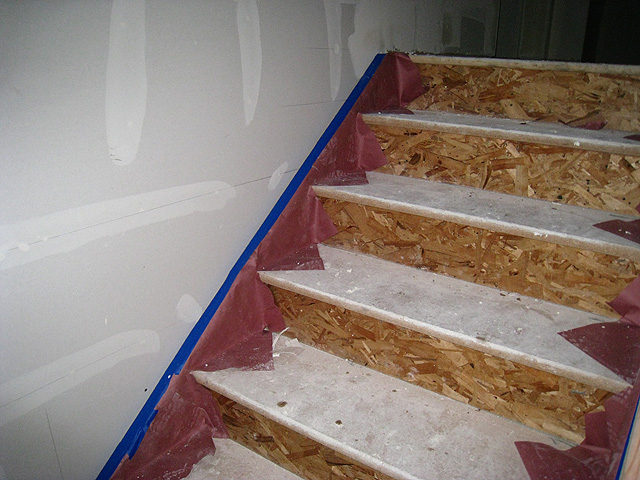

Stairs are protected
Temporary filter over cold air return

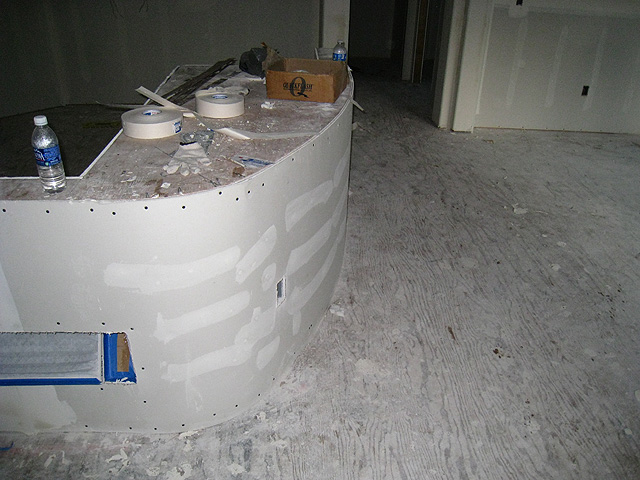

Curved kitchen island

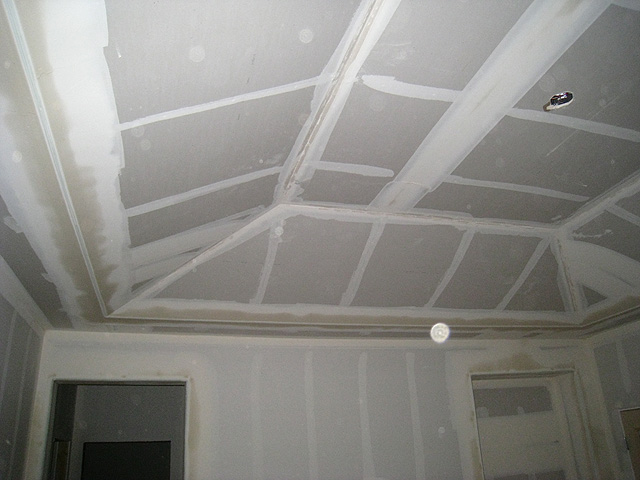

Master bedroom ceiling

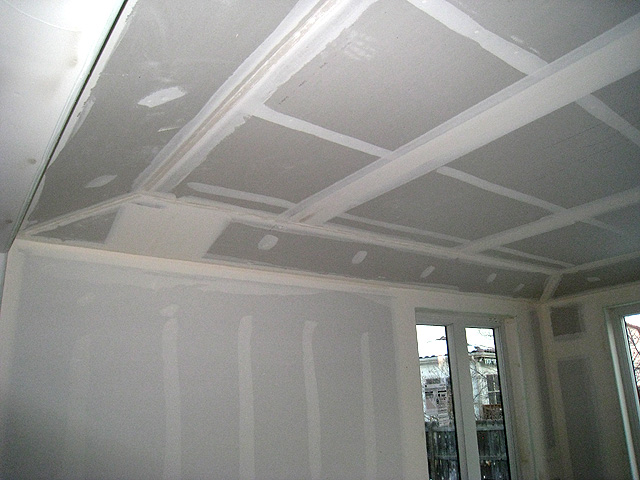

Dining room ceiling

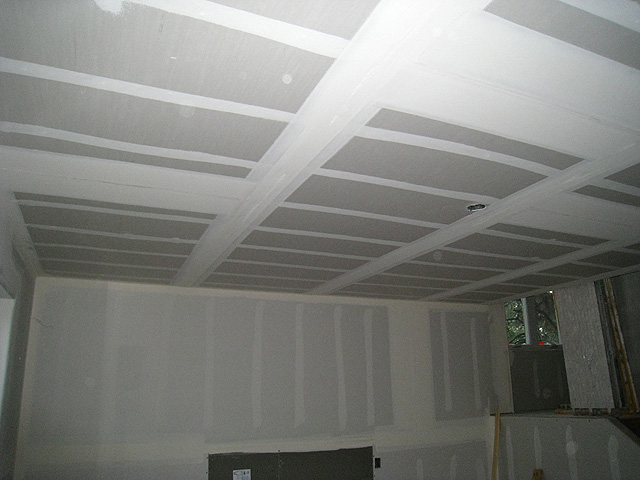

Drywall taped

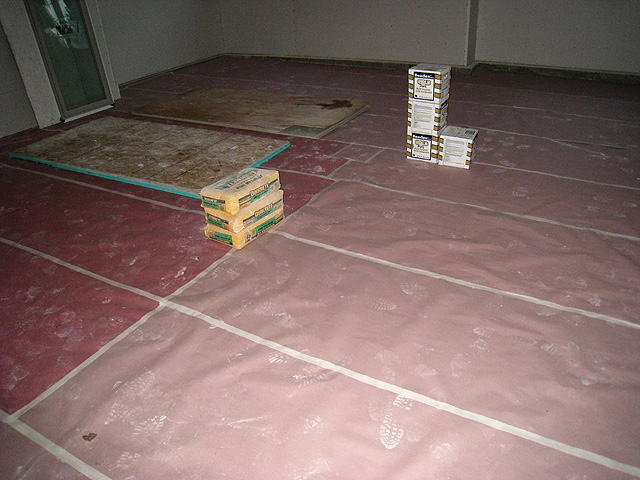

Garage floor protected before taping
Drywall compound

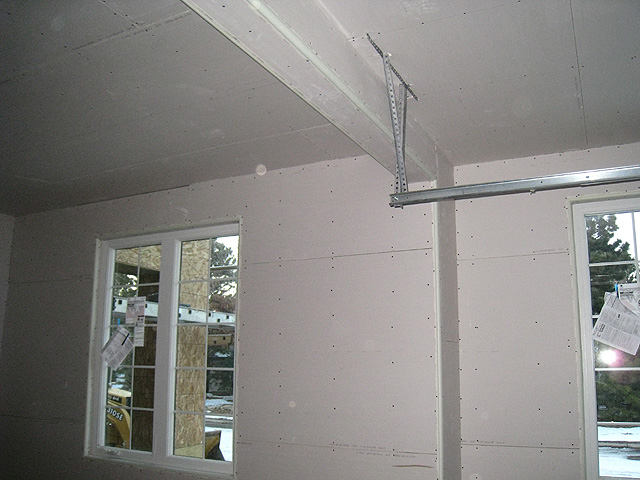

Garage drywall before taping

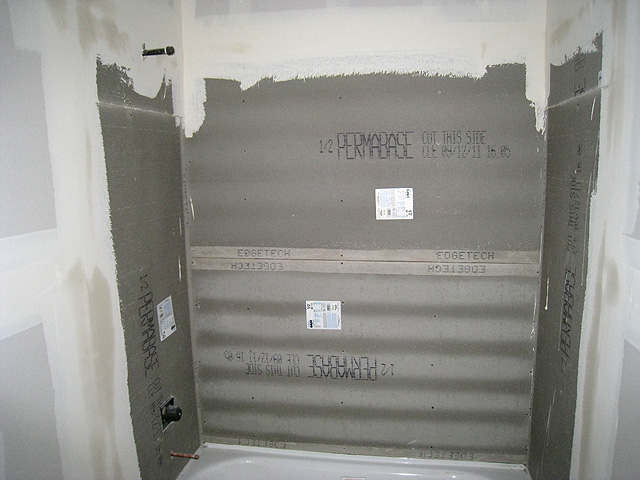

Tub surround with Durock for better moisture control

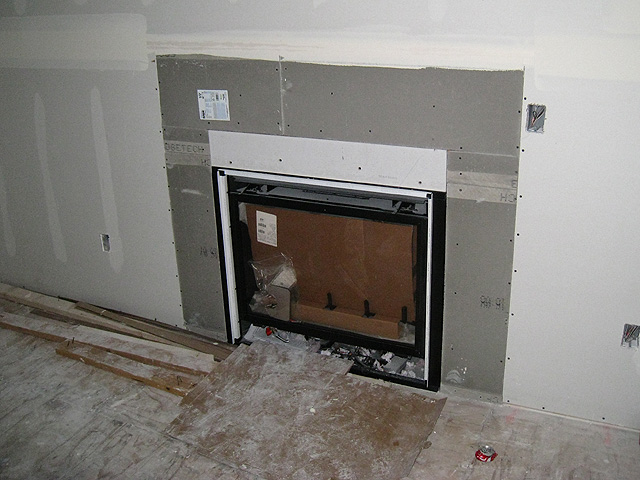

Durock surround at fireplace
Durock at master bath for better moisture control

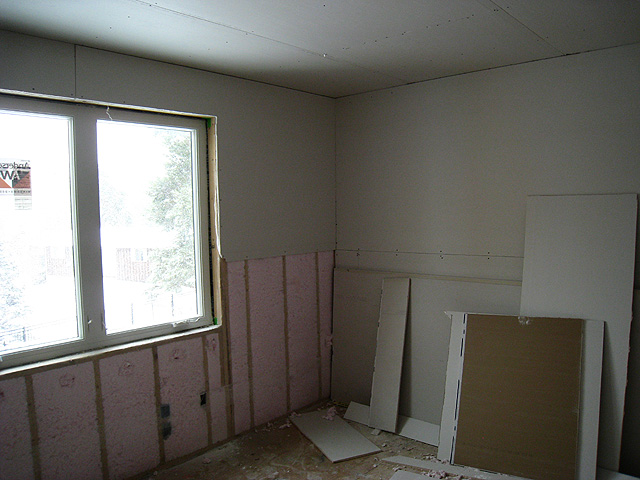

Drywall hanging in progress

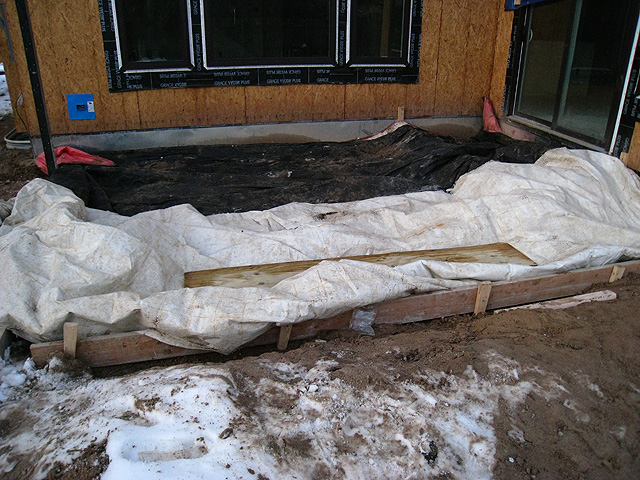

Blankets protecting ground before concrete pour

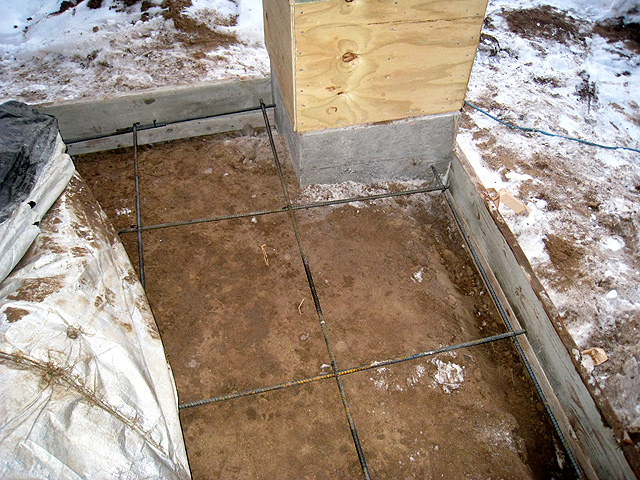

Rebars at front porch for sturdier concrete placement

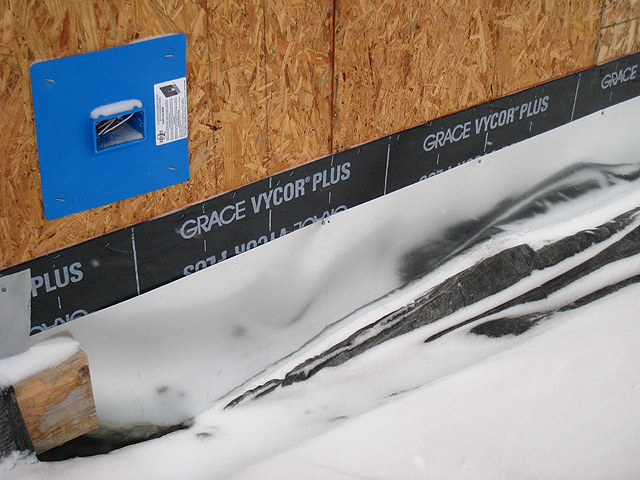

Flashings before patio poured for moisture control

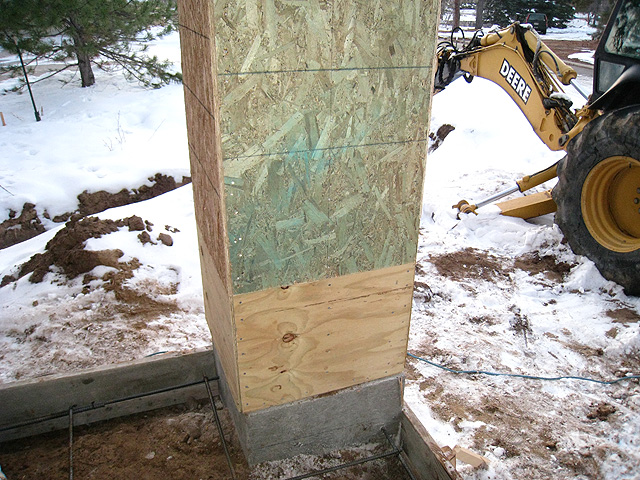

Bottom of box columns with treated plywood for better building practices

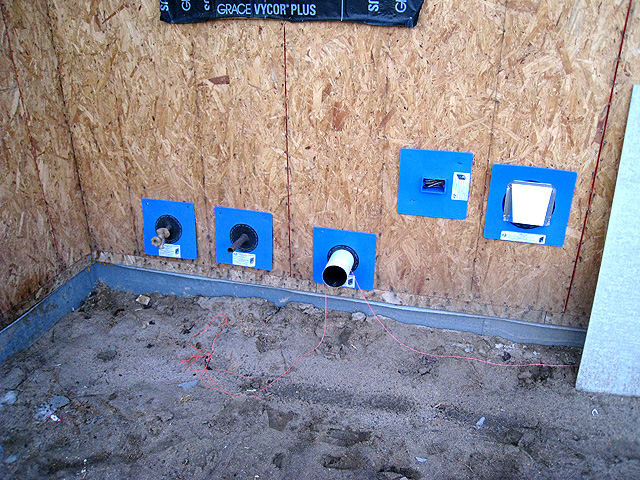

Blue QuickFlash used for excellent moisture control

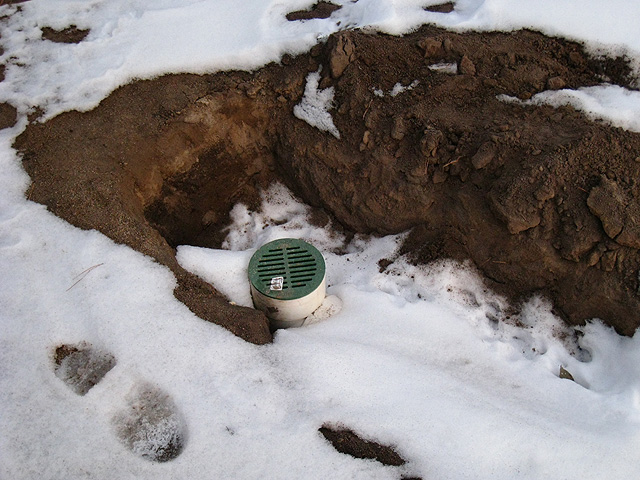

Drains and pipes for pond collector

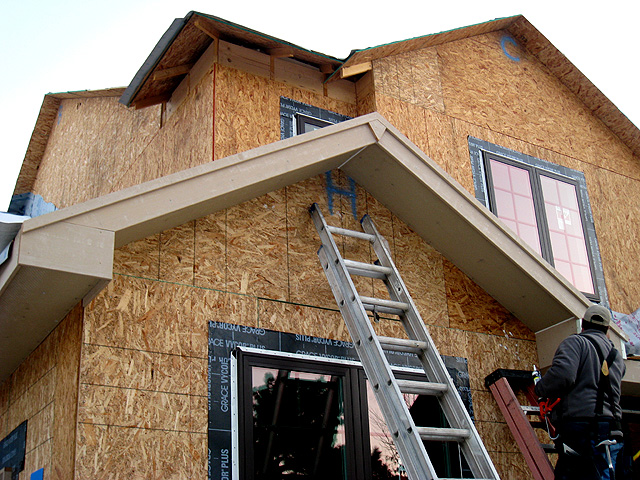

Fascias on gables

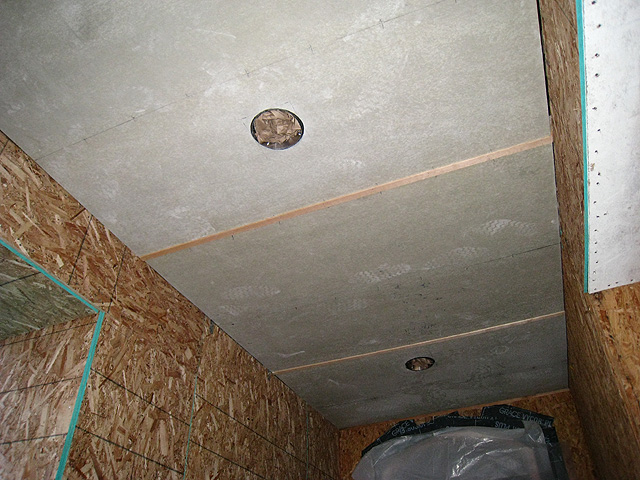

Entry soffit with Hardiboard
Soffit above rear deck
Vented Hardi soffit
Arch and soffits at front porch

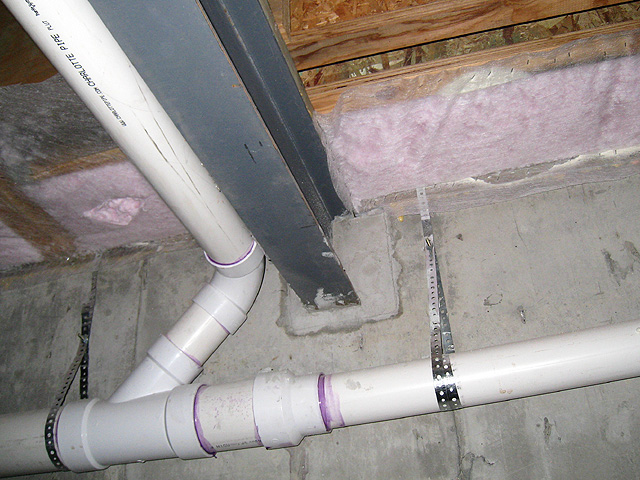

Beam pockets filled with concrete
Rimboard in basement insulated

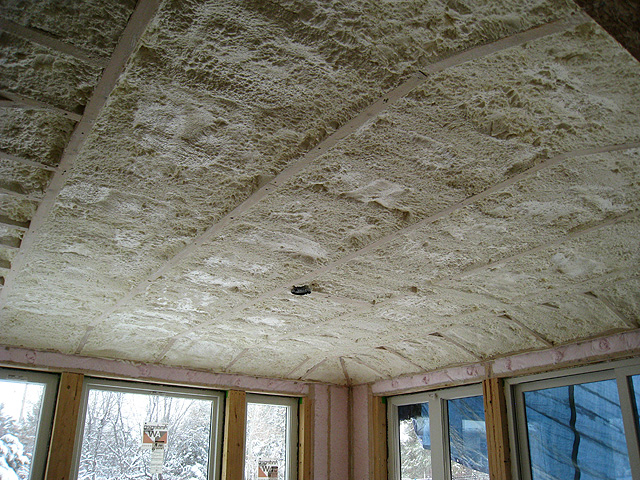

Dining room ceiling insulated with foam

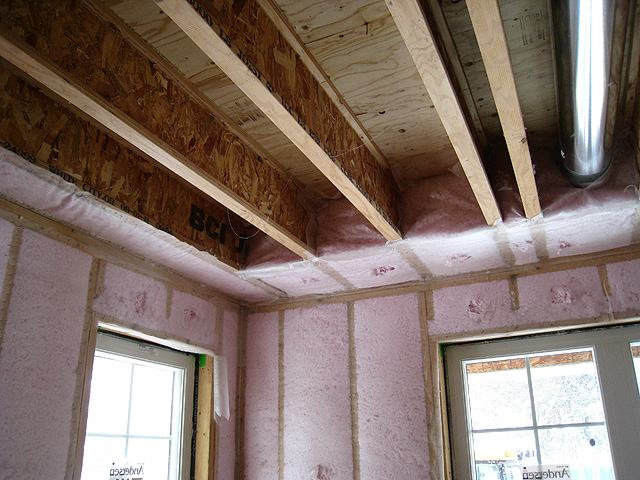

Rimboard insulated

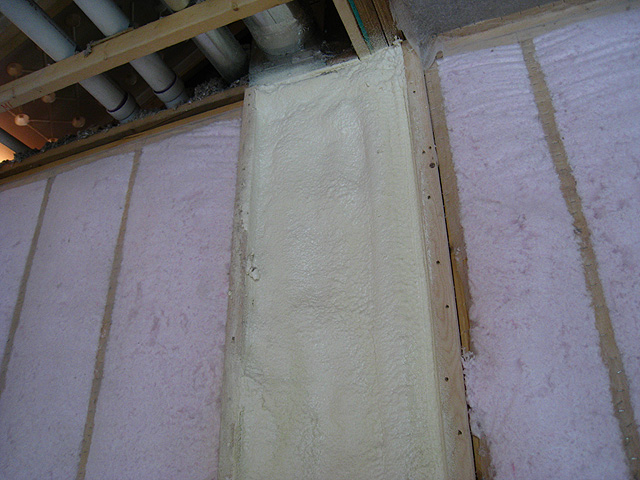

HVAC chase between kitchen and garage insulated with spray foam
Attic baffles installed to control air movement from soffit

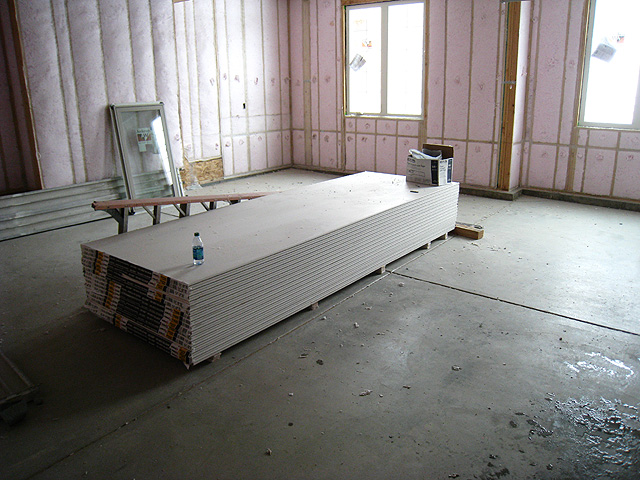

Drywall for garage delivered

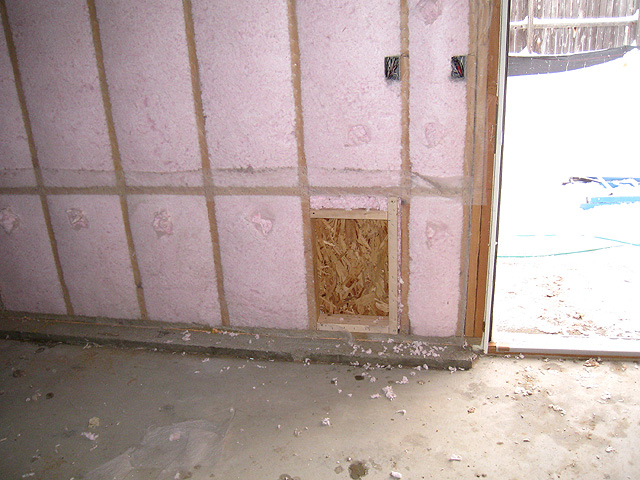

Future dog door in garage

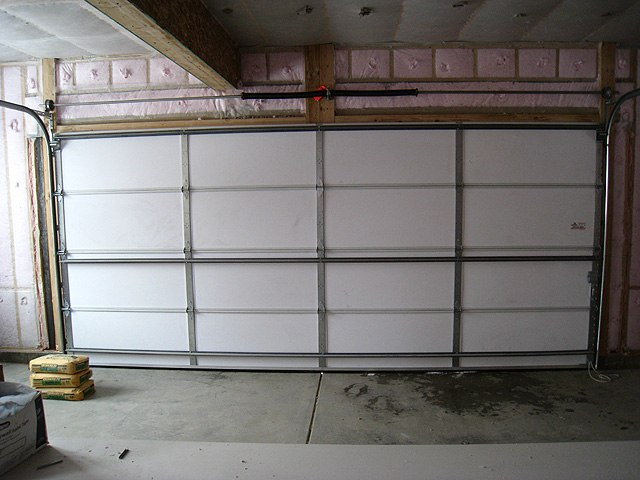

Garage doors are also insulated

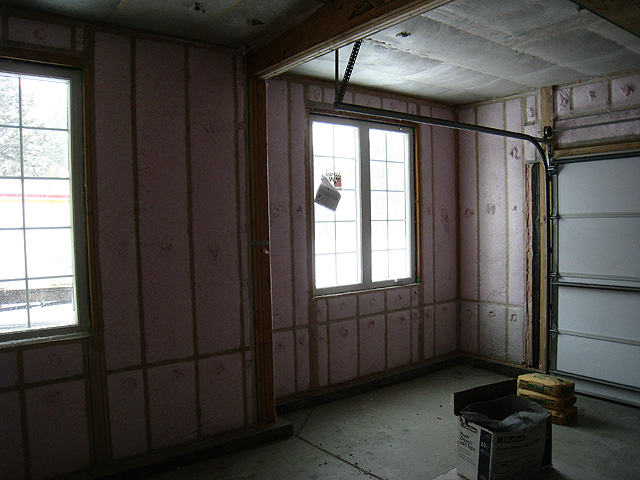

Garage is insulated to improve temperature control

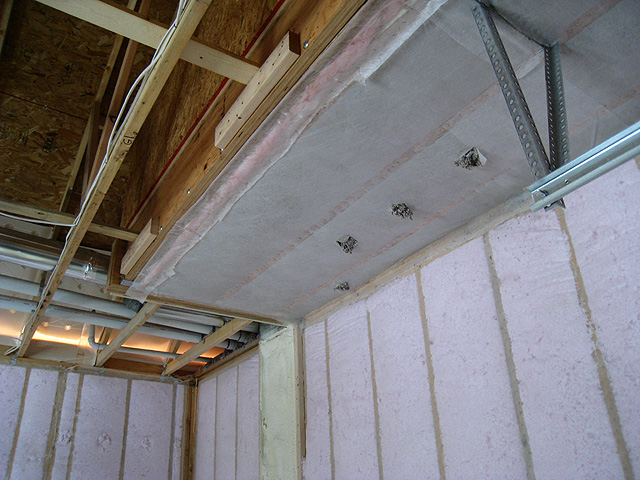

Floor above garage insulated for better floor temperature control

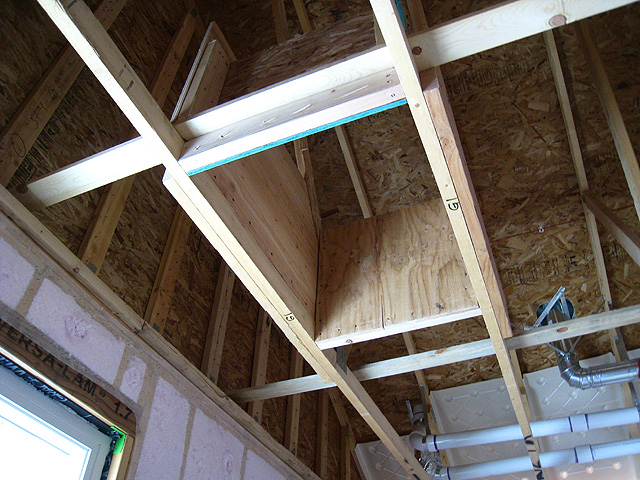

Attic access in garage

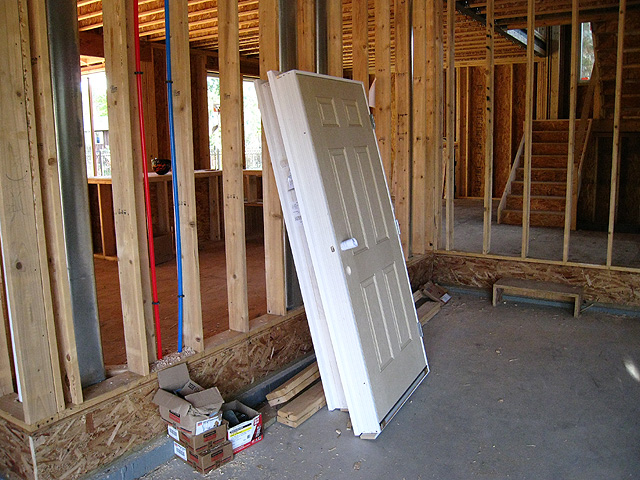

Exterior doors delivered

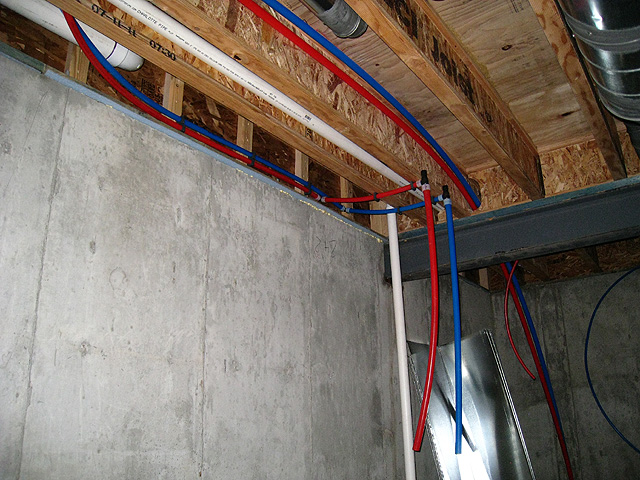

Pex water lines for improved delivery & safety

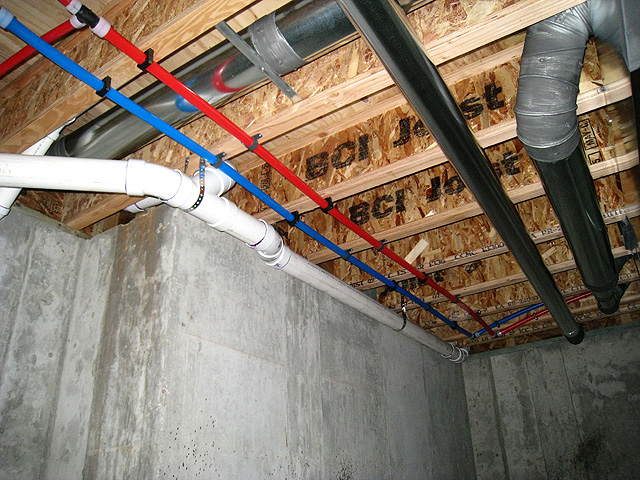

Pex water lines in basement

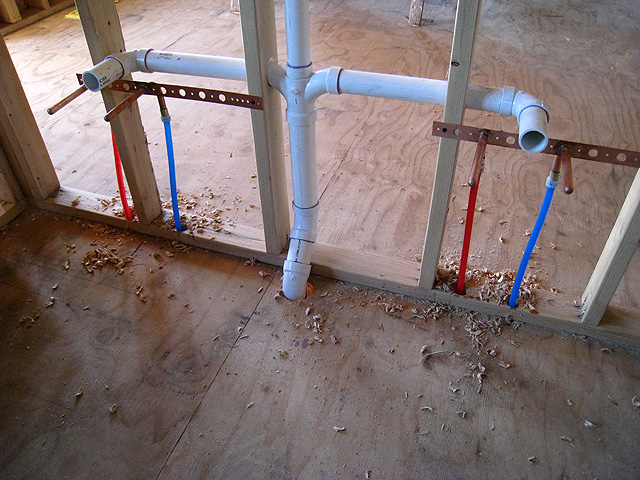

Pex water and drain lines in master bathroom

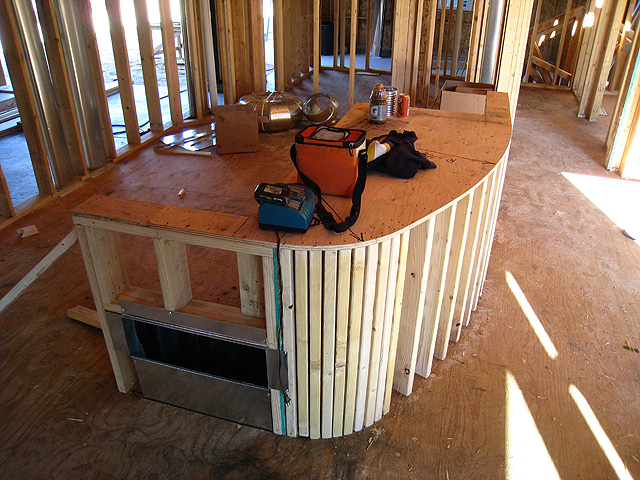

Kitchen island walls with air return

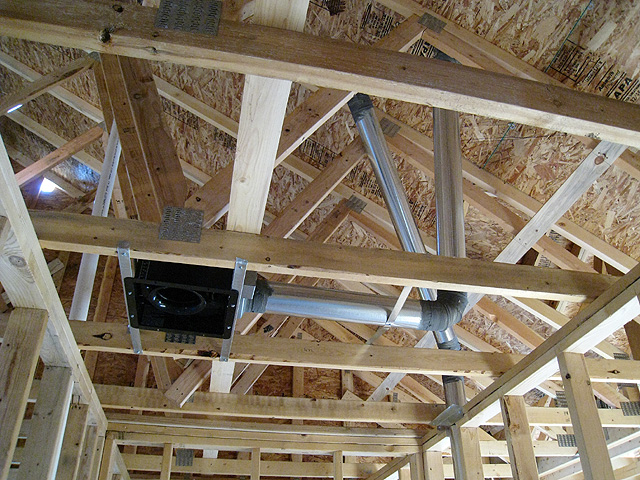

Panasonic bath fans for moisture removal (Fan duct properly sealed for better delivery of exhaust)
Heat runs connection with mastic sealant

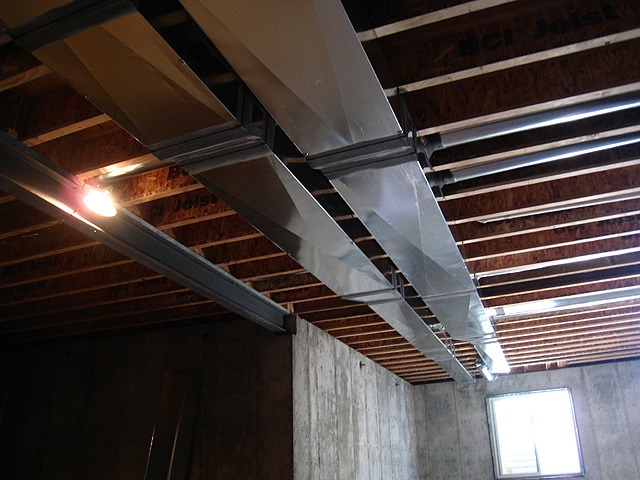

Heat runs in basement
Stairs installed with strong steel straps

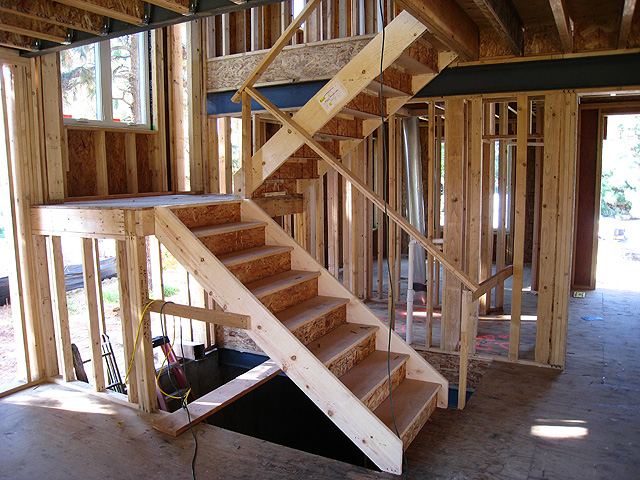

Upper set of stairs

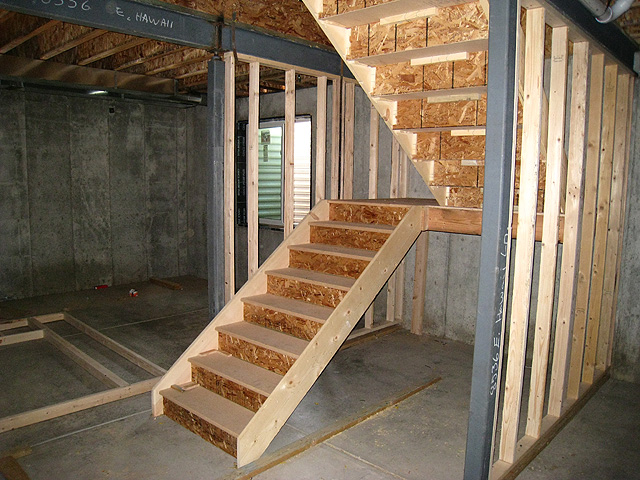

Lower set of stairs
Stairs to basement

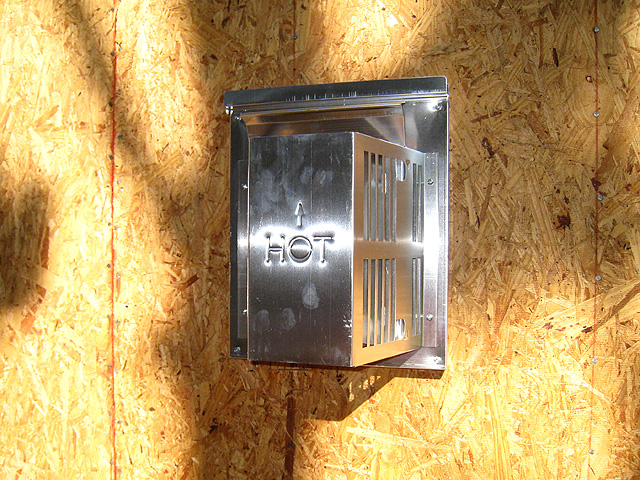

Fireplace vent

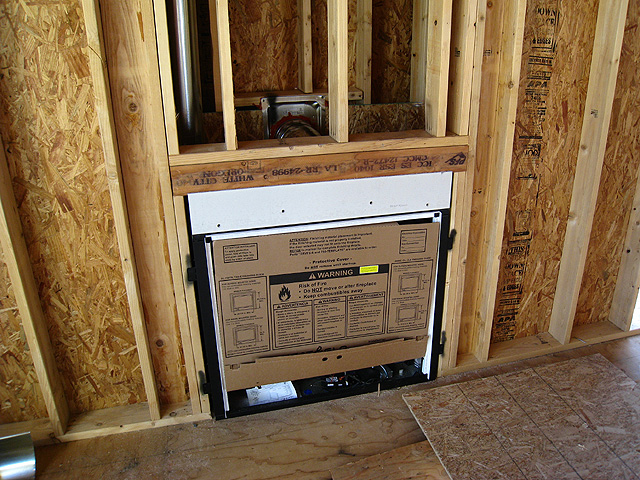

Fireplace installed

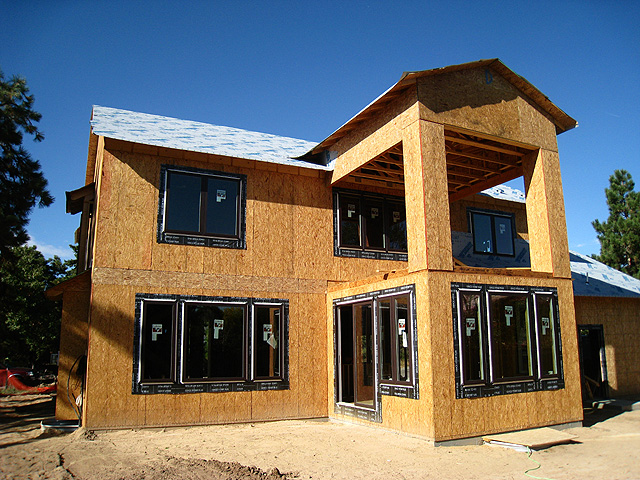

View of rear of house with windows installed

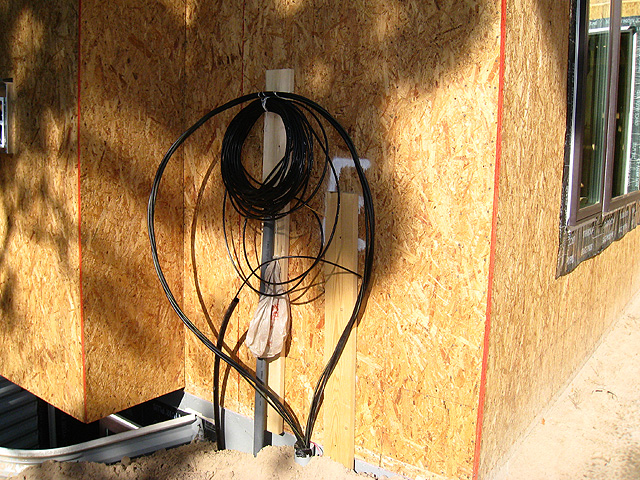

Electric, TV and phone connection

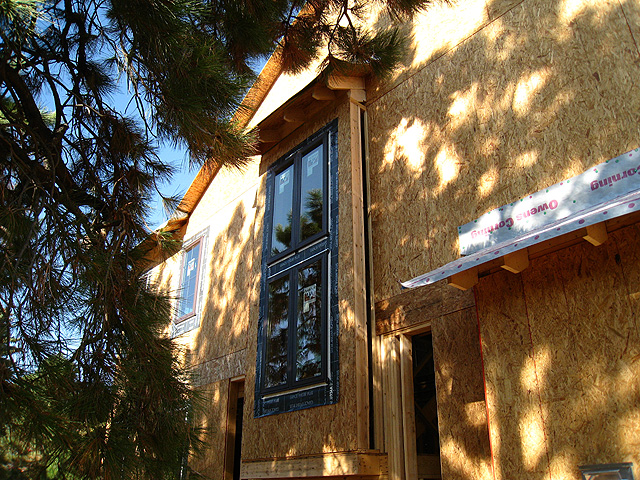

Windows and small roof by stairs.

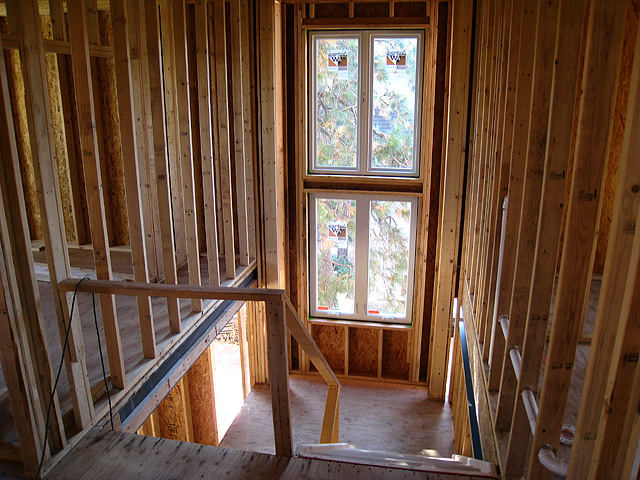

Windows by stairs

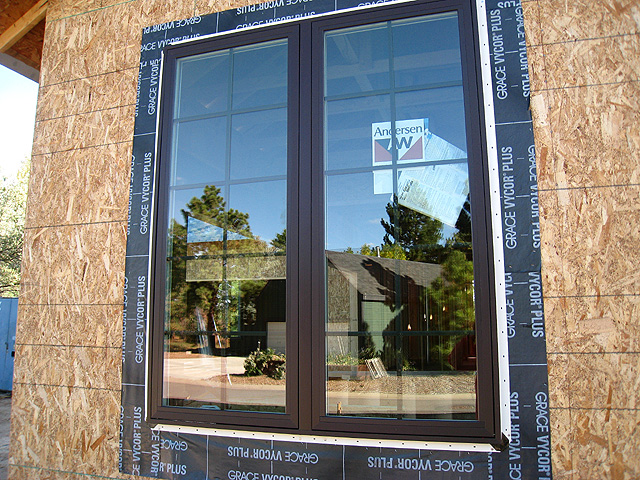

Energy efficient Andersen windows installed for increased comfort

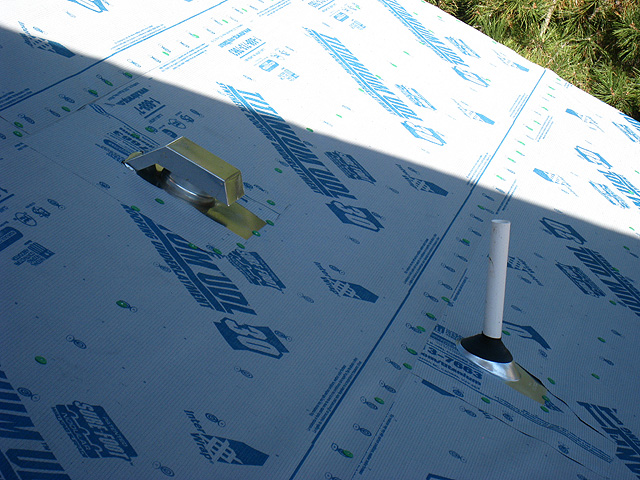

Roof properly dried-in

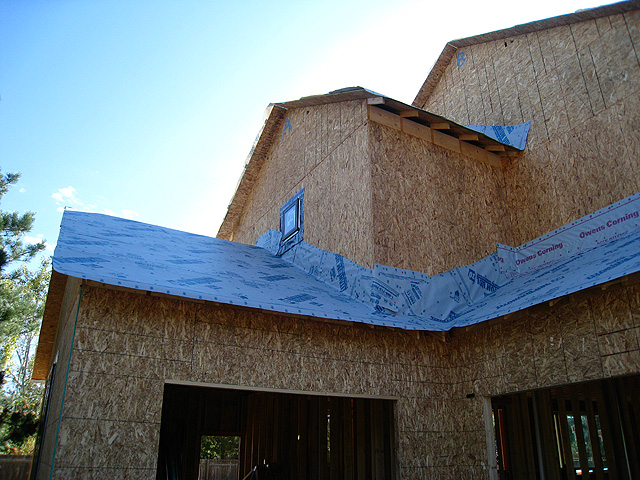

Roof dry-in with extra strength underlayment

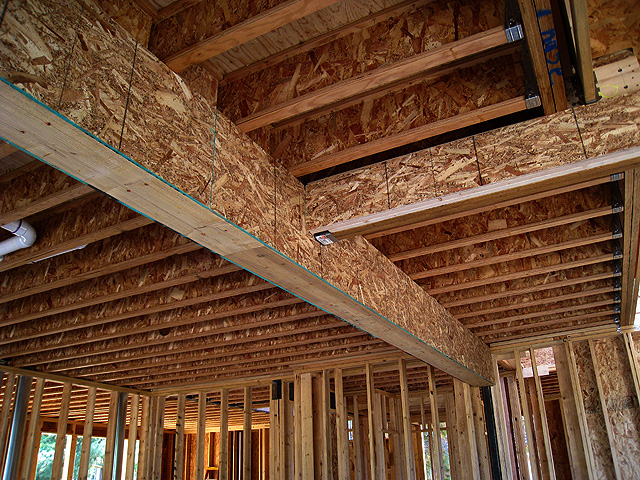

Steel beam in garage wrapped for drywall

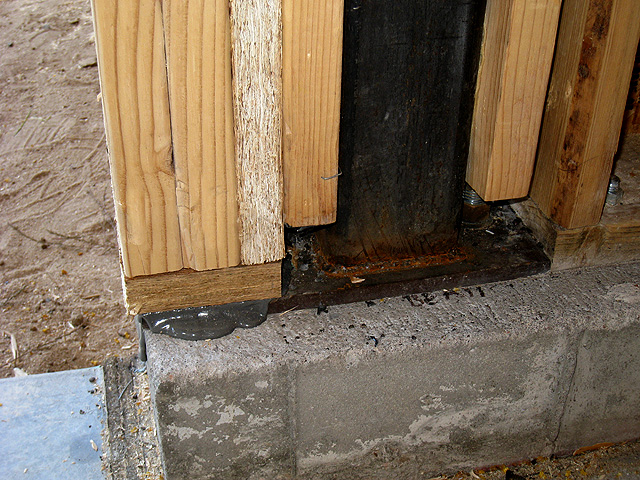

Detail of garage door trimmer and plate set in epoxy

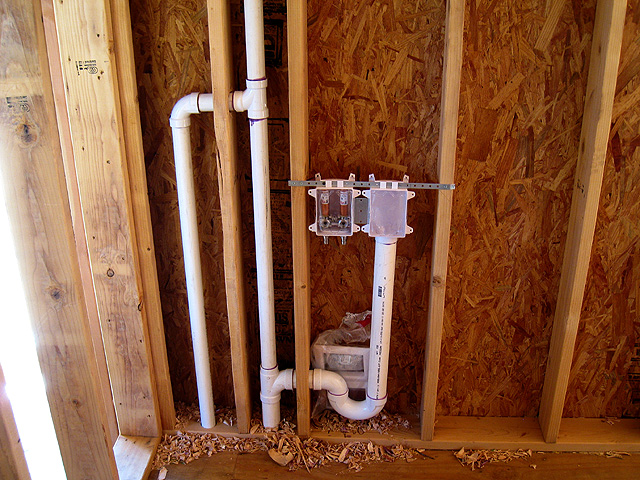

Laundry plumbing
Plumbing under master bathroom

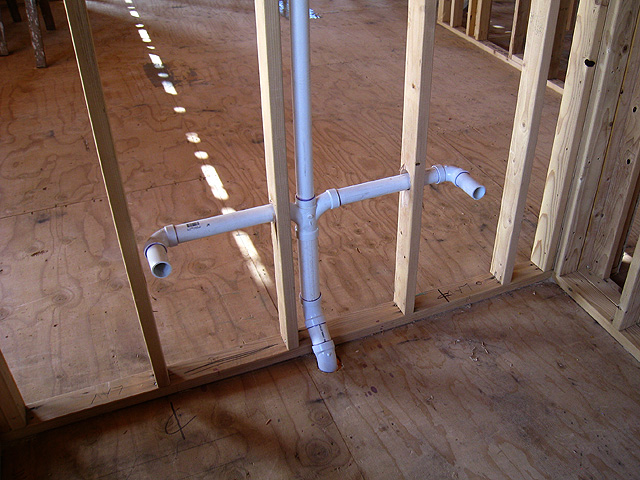

Plumbing for master vanity
Master tub deck

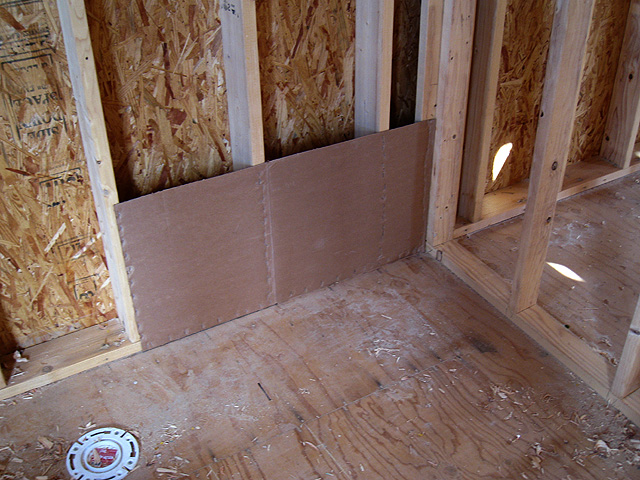

Insulation barrier prior to tub placement
Insulation barrier behind fireplace
Duct works are sealed for better air flow

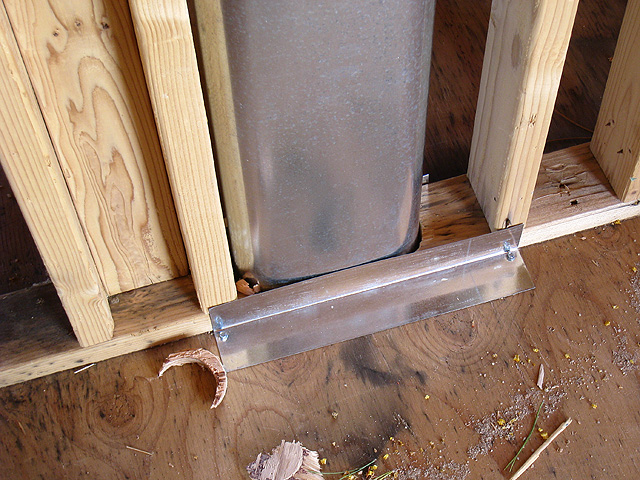

Duct works in 2x4 interior walls

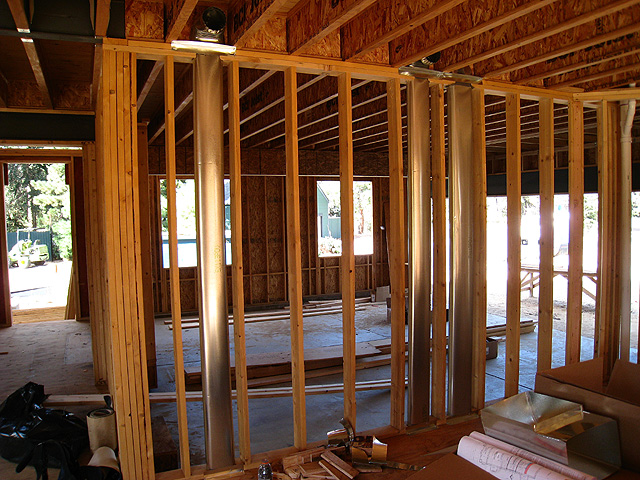

Duct works in kitchen wall

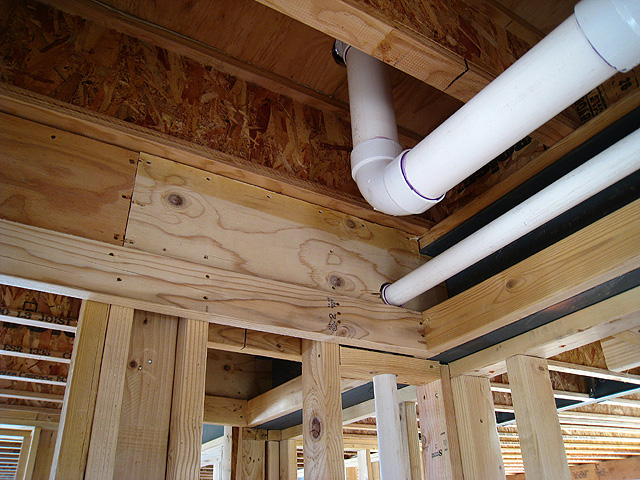

Firestops for dropped ceilings are installed before plumbing

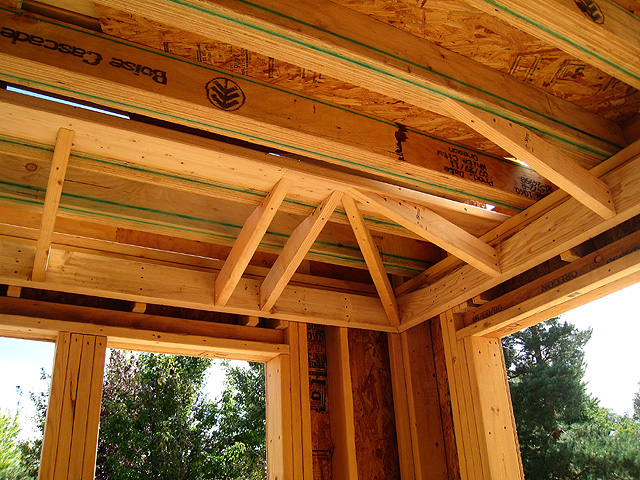

Dining hip ceiling

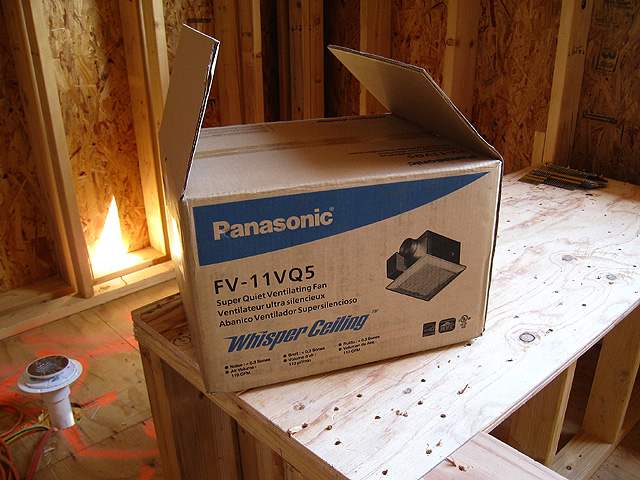

Bathroom fans are Panasonic and Energy Star Rated

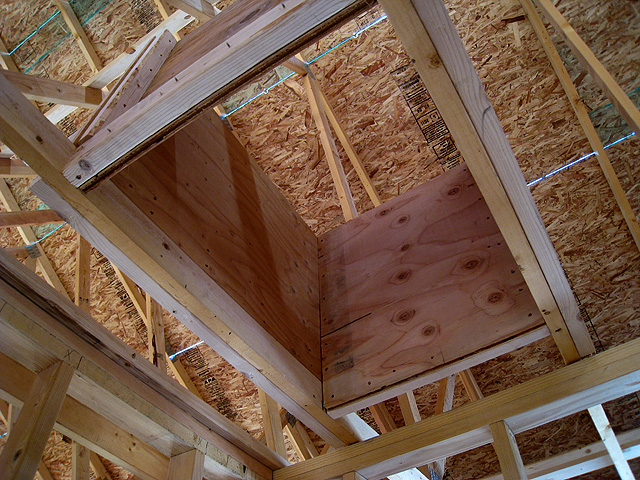

Attic access boxed in for better insulation placement

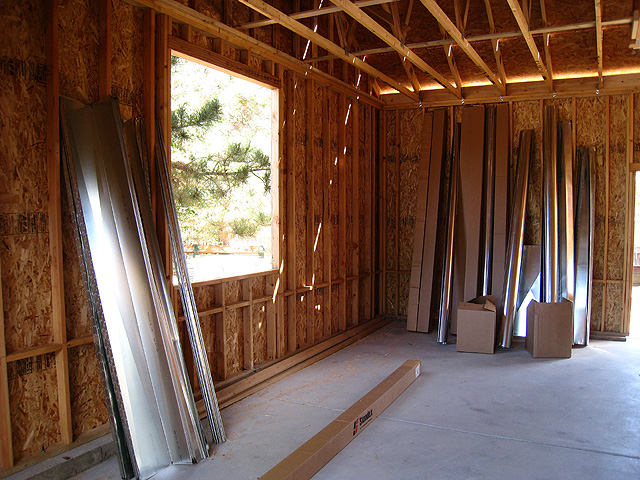

Material for HVAC delivered

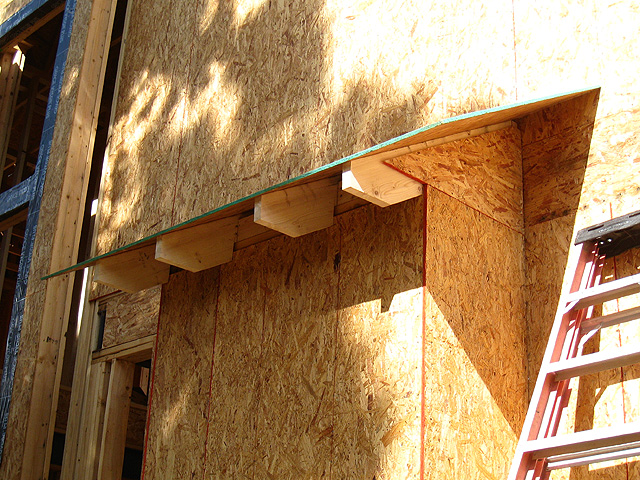

Small roof above fireplace

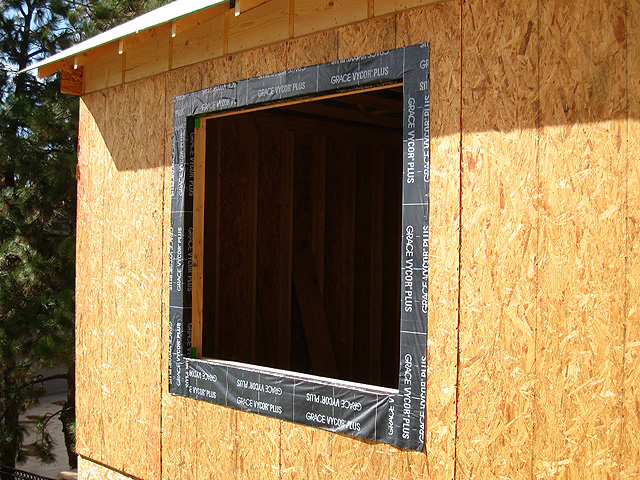

Vycor flashing for window installation

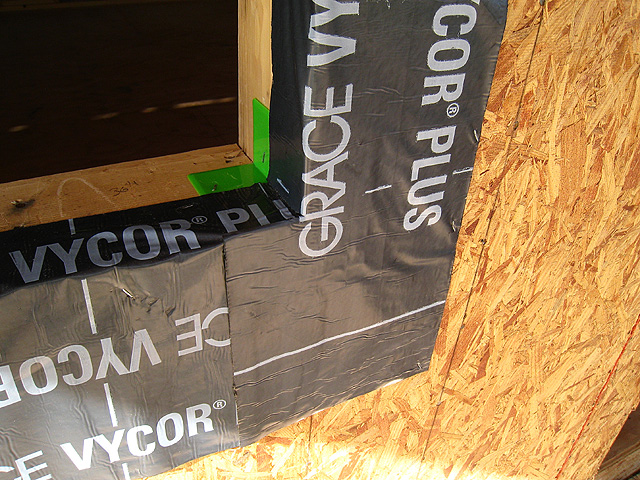

Green corners are used with Vycor flashing for excellent moisture control
Lower garage roof
Roof finished on two front dormers

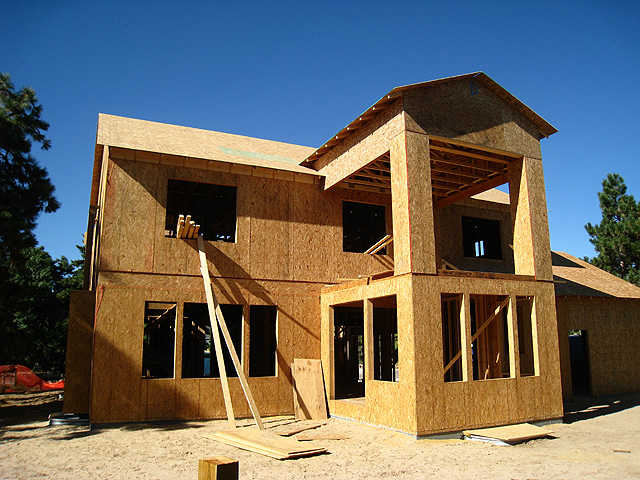

View from southwest
View from southeast

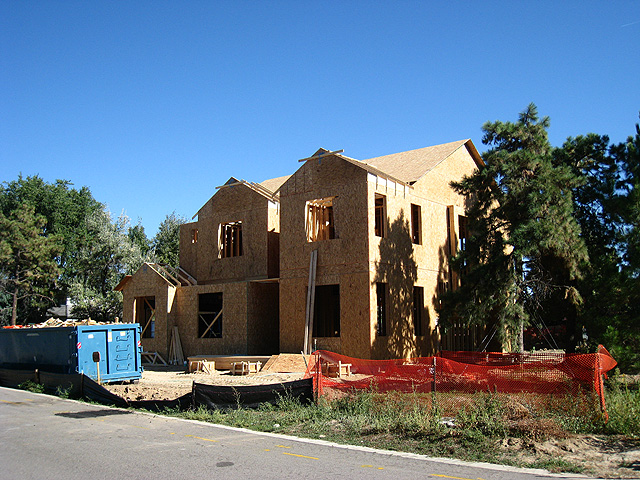

View from northwest

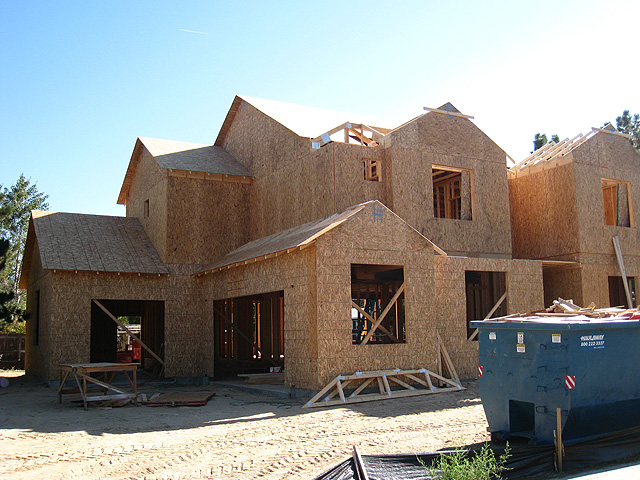

View from northeast

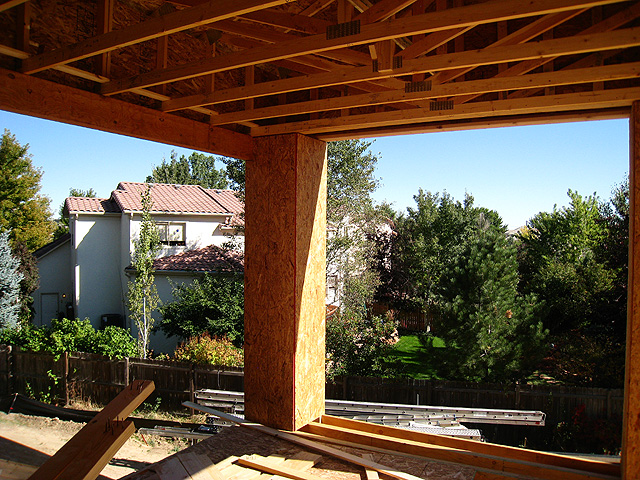

View from rear deck

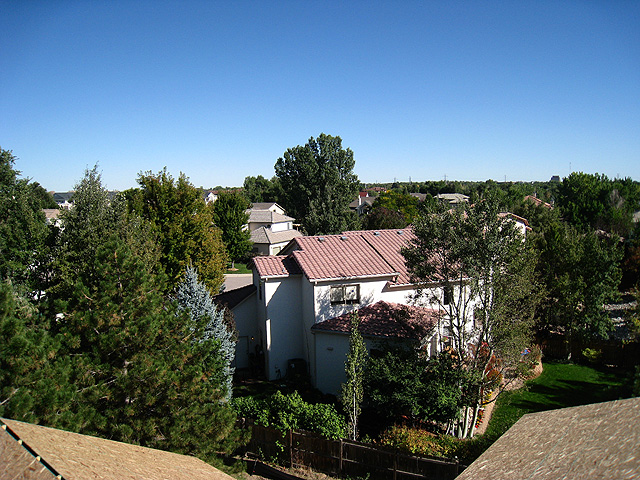

View from roof

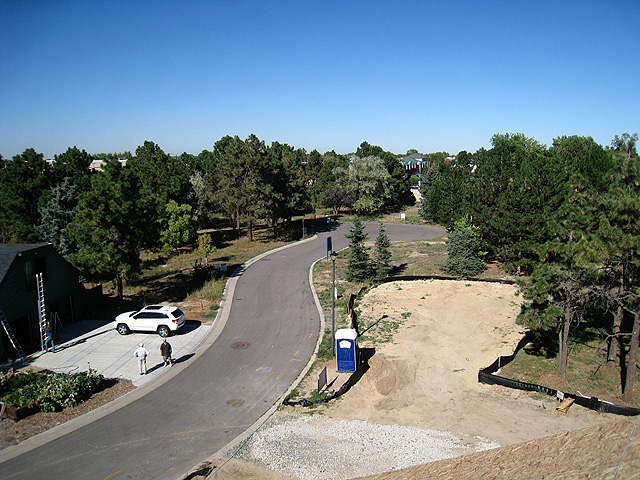

View of Hawaii Lane from roof

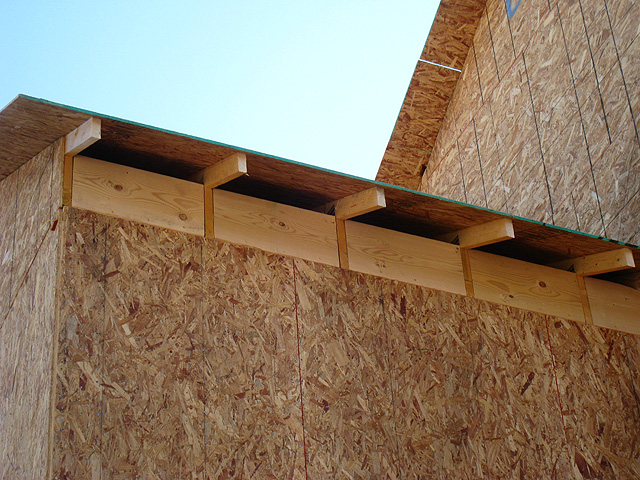

2x12 roll blocks will hold insulation in attic

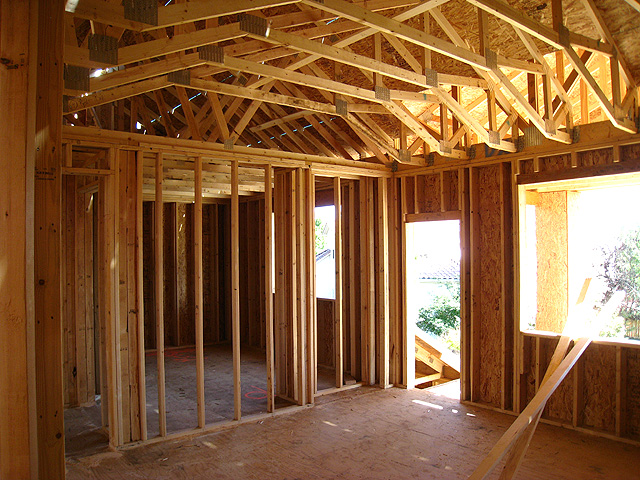

Master bedroom - bracing removed
Garage roof next to rear deck

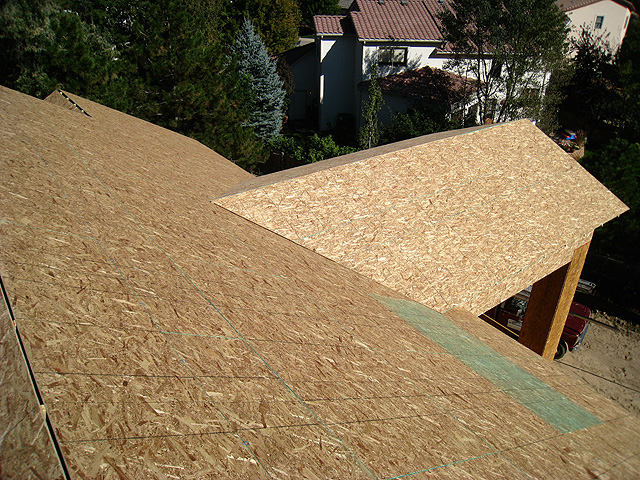

Main south roof

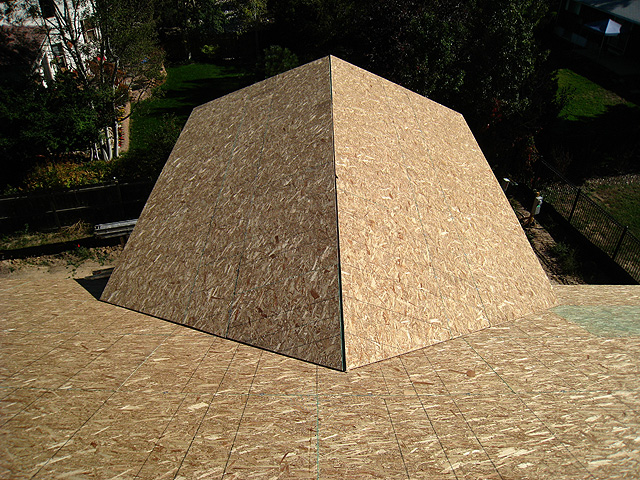

Roof of rear deck

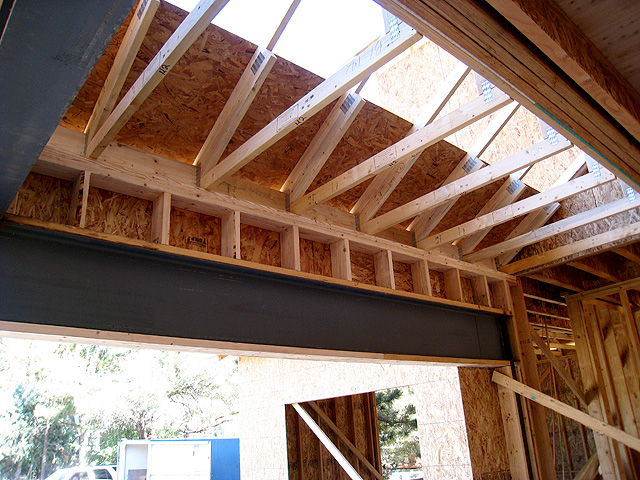

Knee wall on top of steel garage header

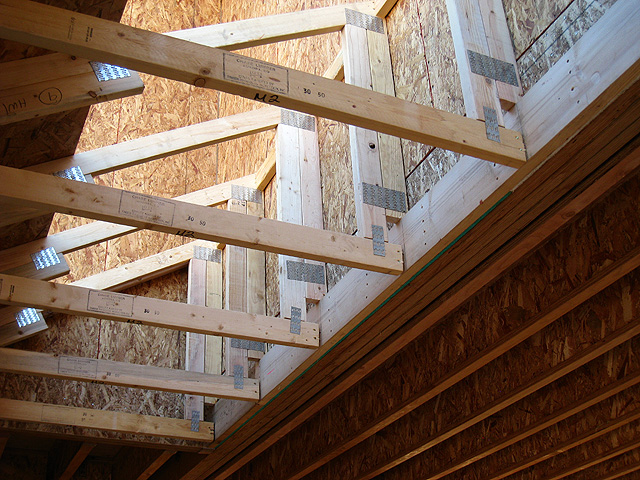

Small trusses sit on 2x8 ledger with no hangers

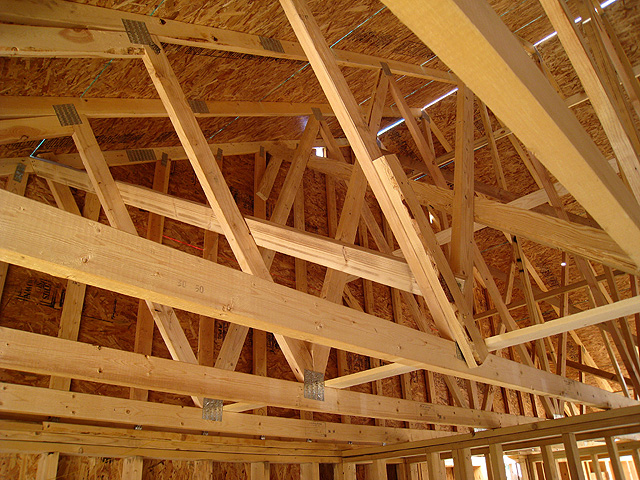

Gables braced with angle bracing
Hangers nailed

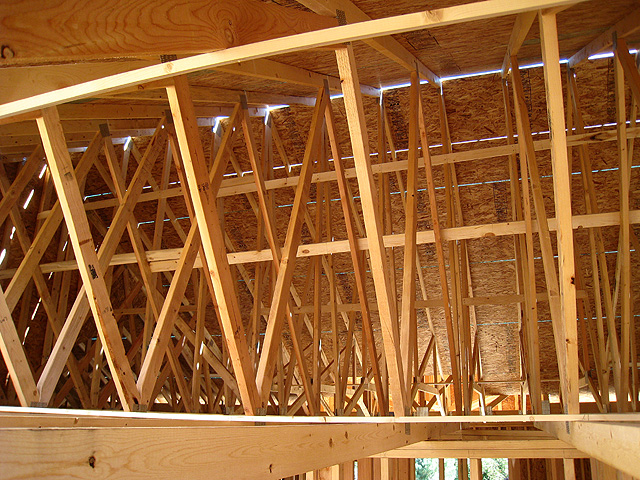

Truss bracing finished
Rear deck trusses with 3 feet heel

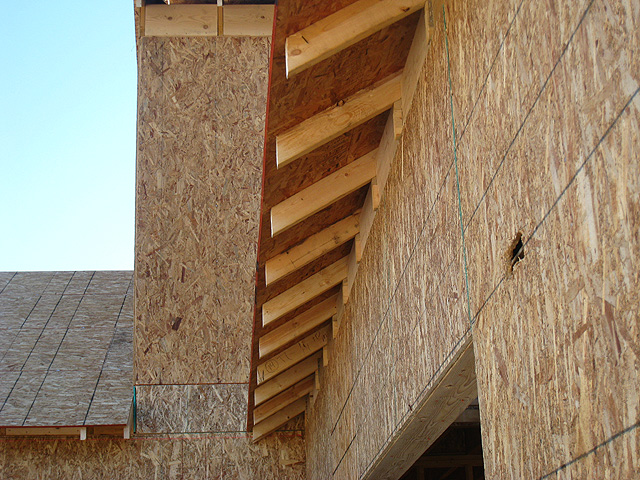

Truss tails are cut per string line

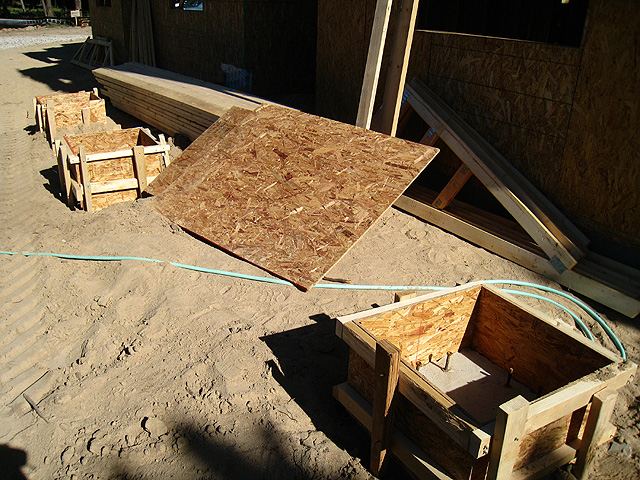

Extension for porch pilasters are formed

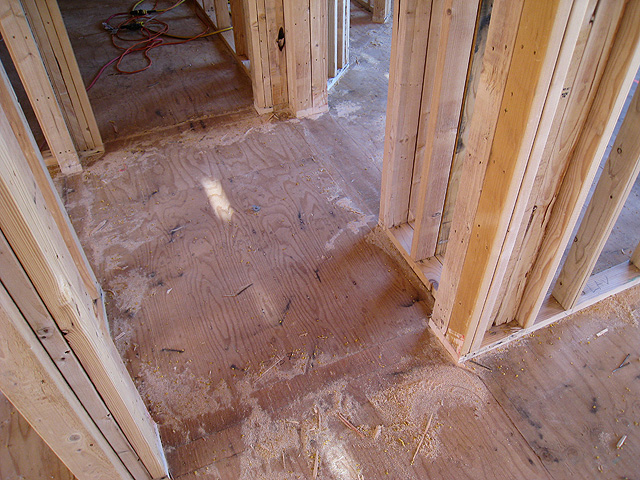

Door plates are cut off
OSB protected before concrete pour

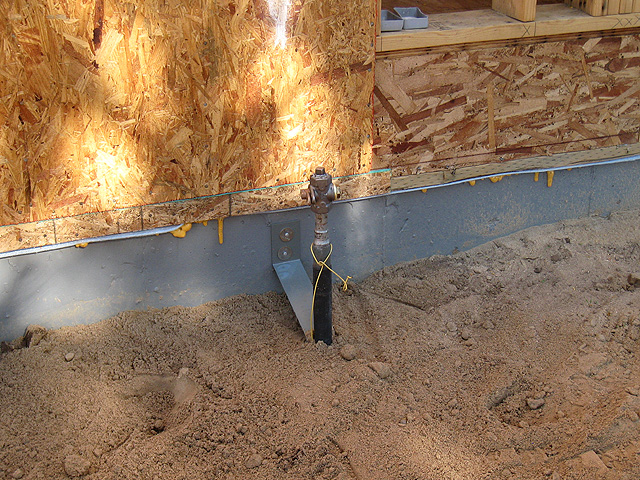

Gas connection

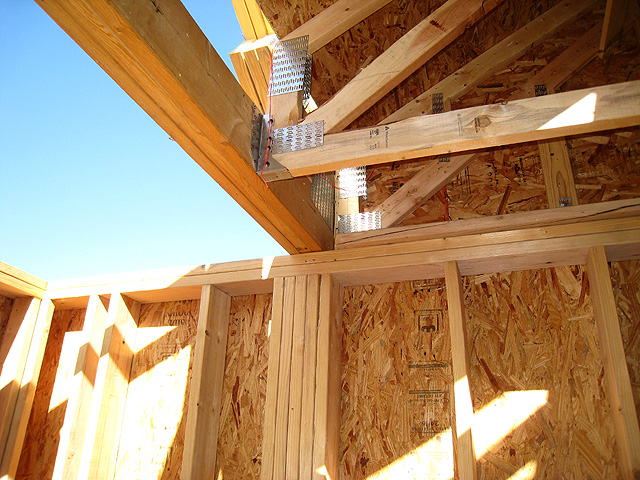

Big girder sits on post

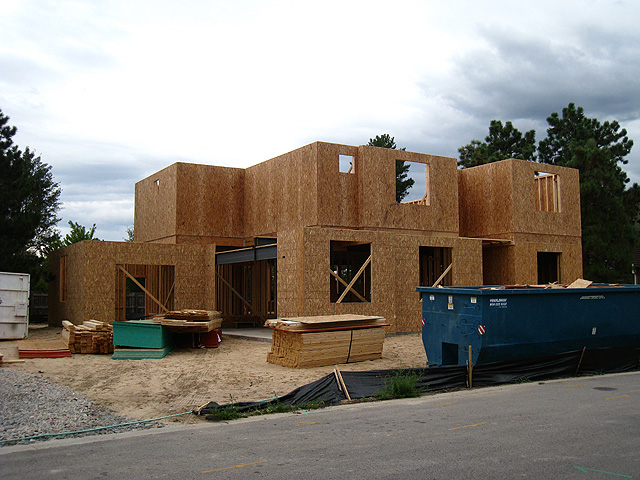

View of front elevation

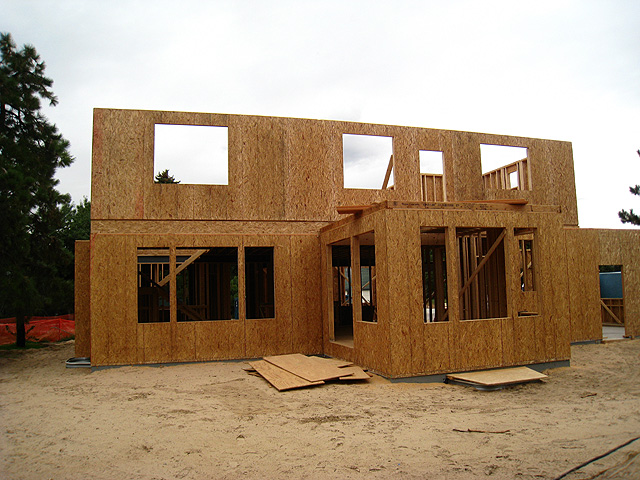

View of rear elevation

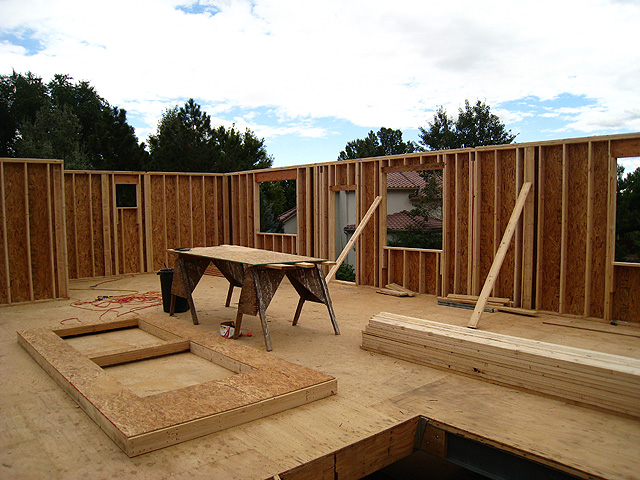

Second floor exterior walls are finished

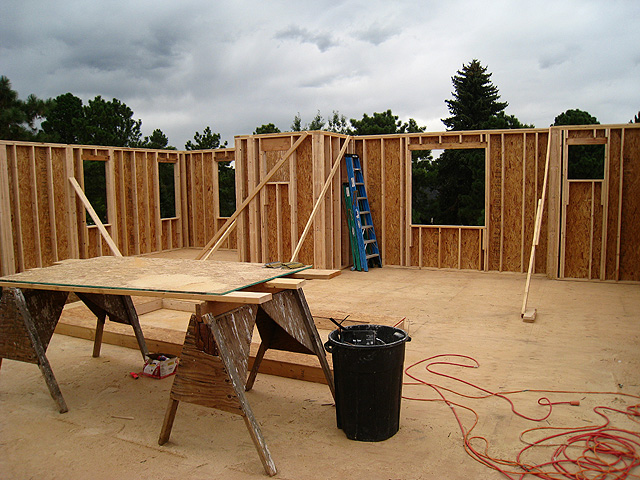

Second floor exterior walls

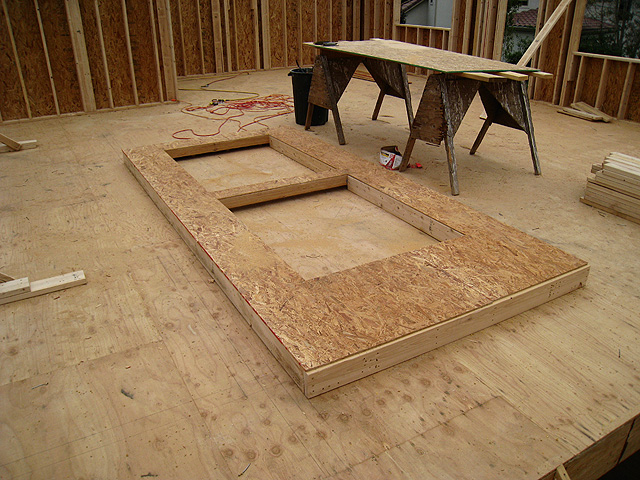

The tall stair wall is ready for crane

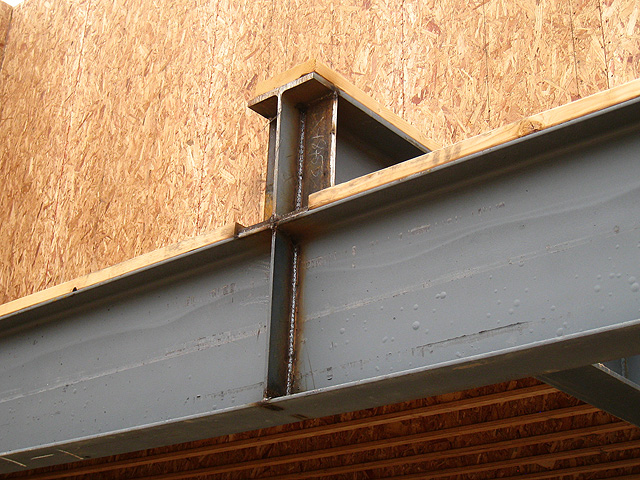

Web stiffeners added

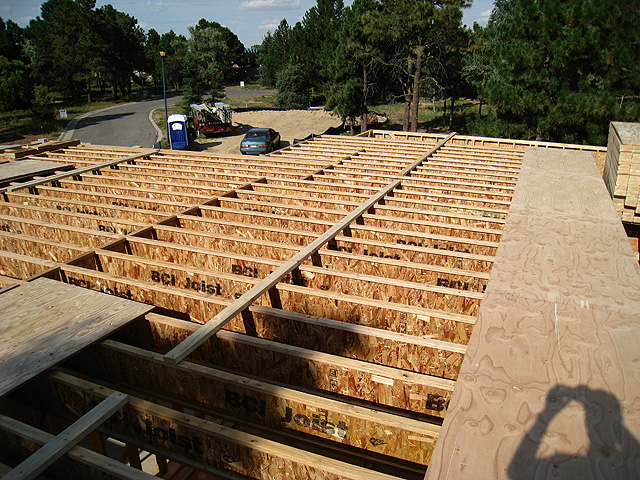

Joists are braced before sheathing

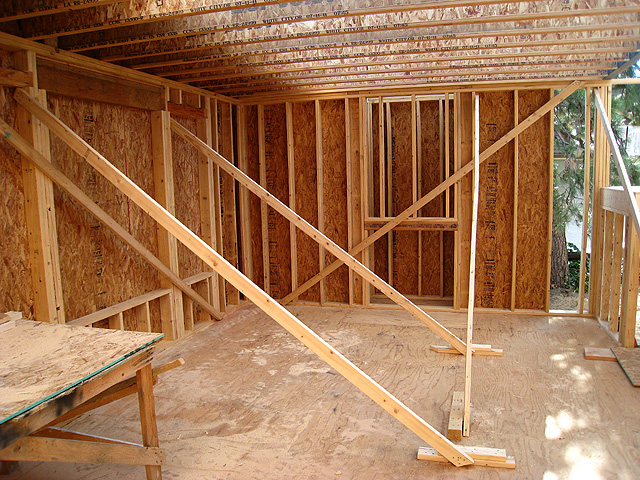

Walls are braced before floor is installed
Rear deck LVL 3.5x5.5 joists
Temp stairs
Firestop on top of chase
Second floor overhang at garage
Roll blocks installed over bearing walls and beams
Rim reinforced with blocks and drywall backings installed
LVL beam is flush with top flange hangers
Connection of steel and LVL beam by stairs

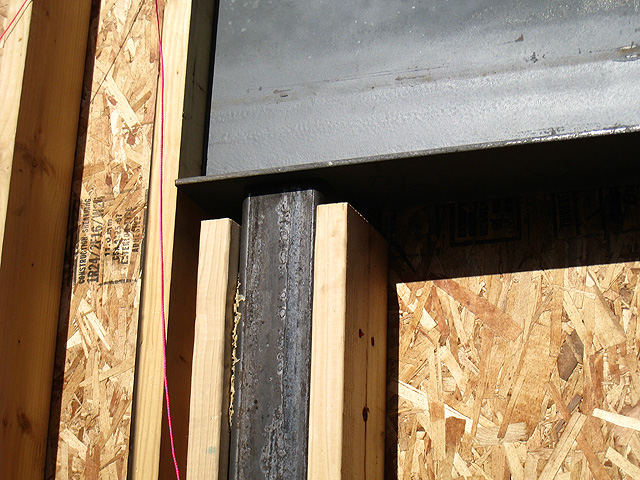

Steel columns supporting beams

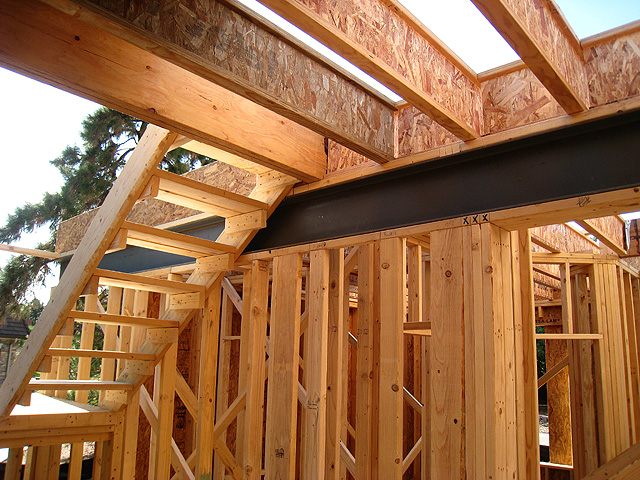

Steel beam inside interior wall by stairs

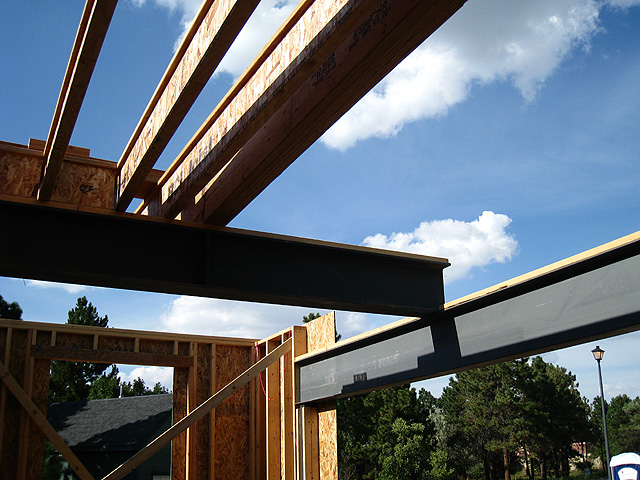

Massive steel beams supporting second floor

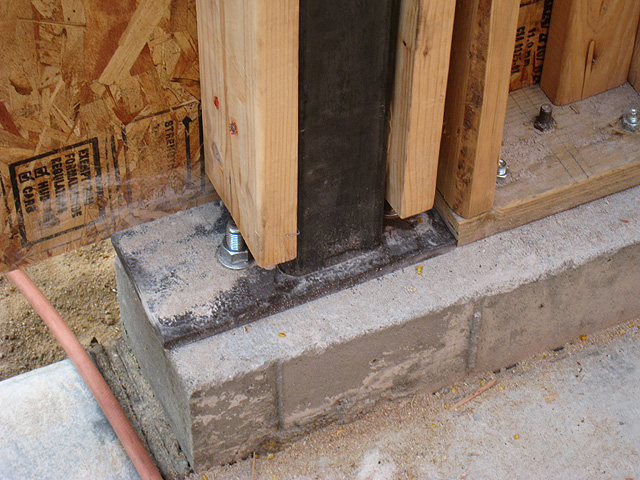

Base of steel column

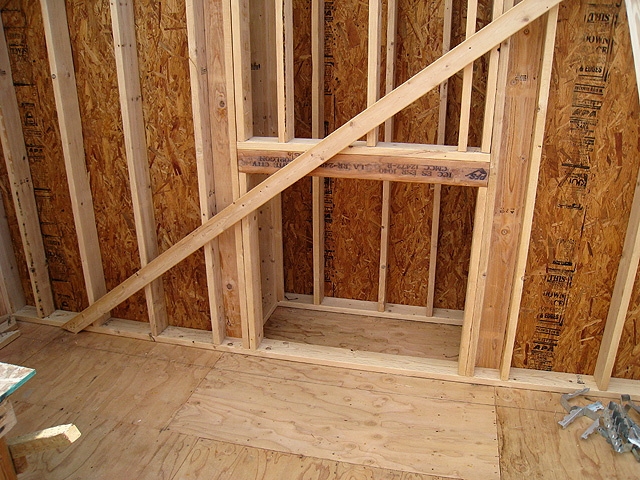

Opening for future fireplace

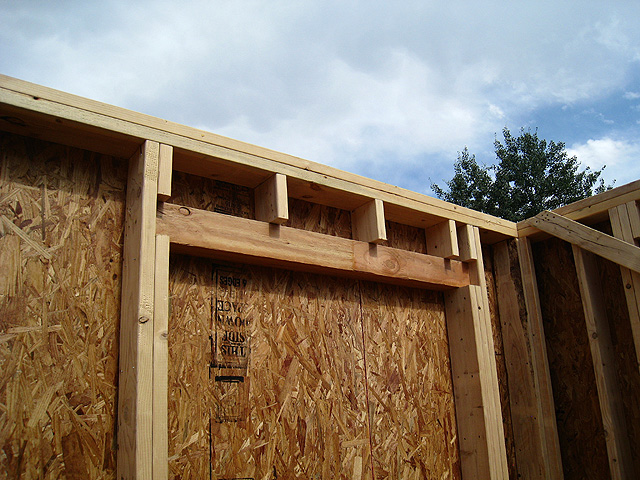

LVL headers are installed flush to outside to allow for rigid insulation

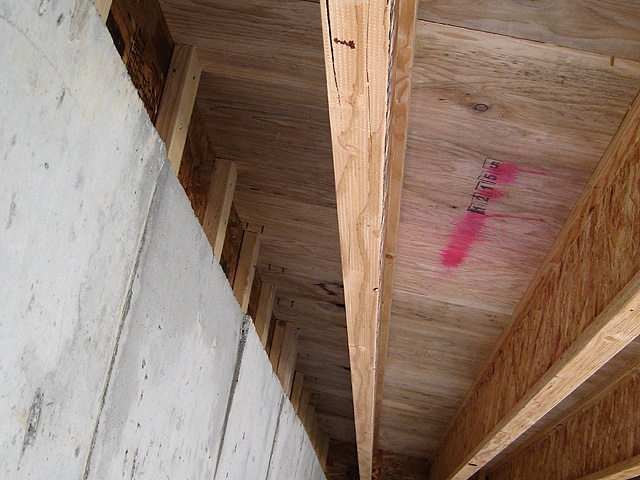

First joist always away from rim for insulation

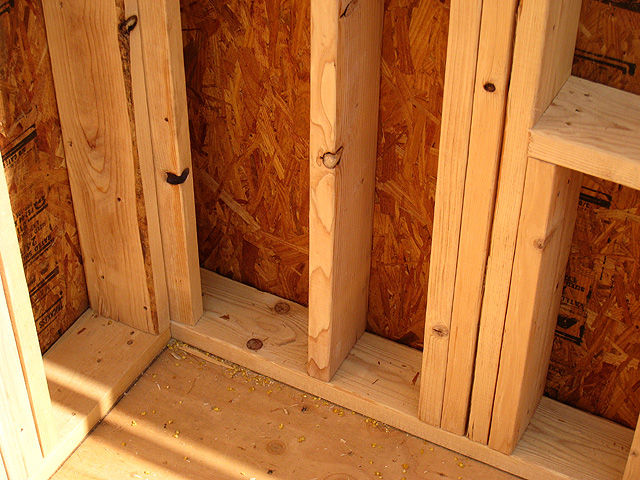

All corners are open for insulation

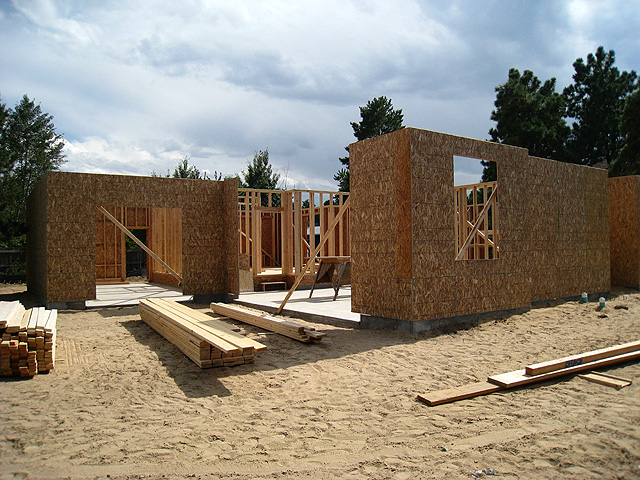

First floor walls are framed and sheathed

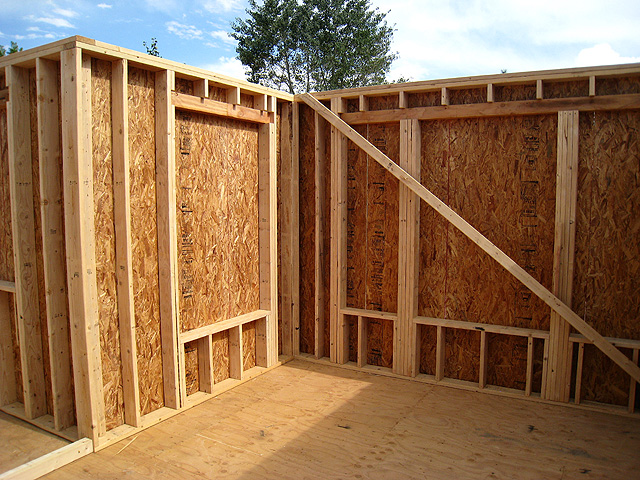

Exterior 2x6 walls

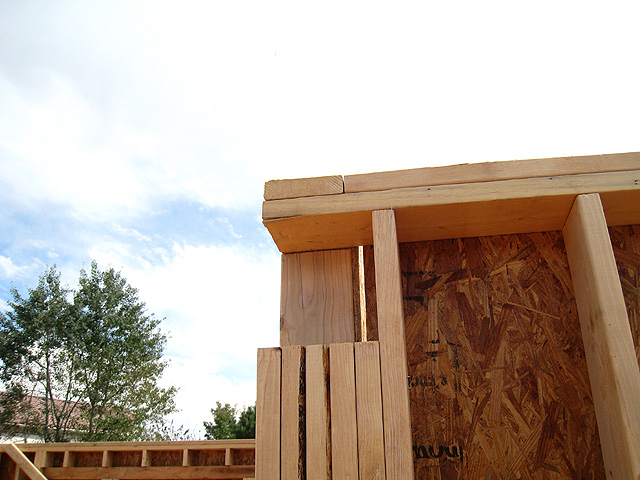

Beam pockets are framed in walls

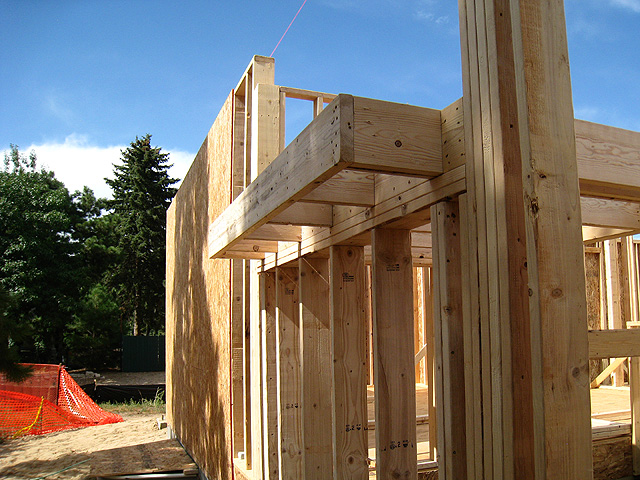

Stair landing is overhanging outside

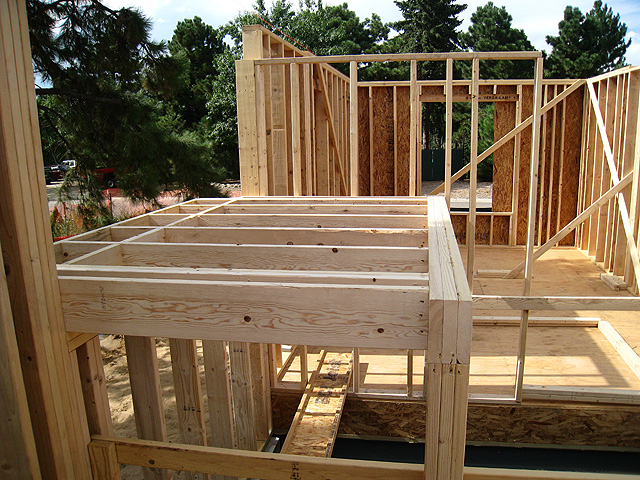

Stair landing being framed
Marked plates for interior walls

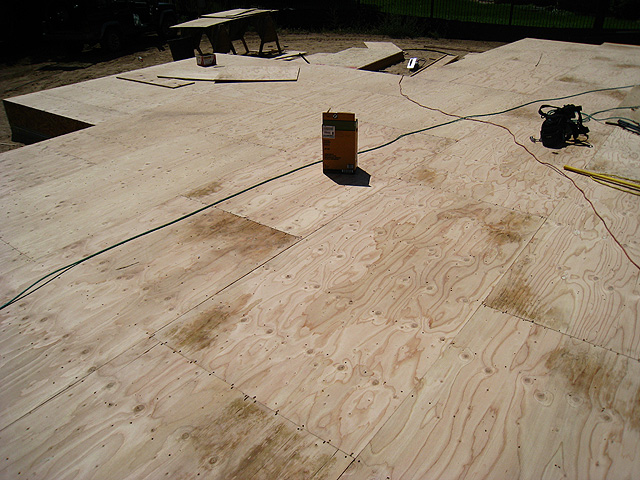

Floor deck finished
Joists installed - ready to be sheathed
Hangers for floor overhang

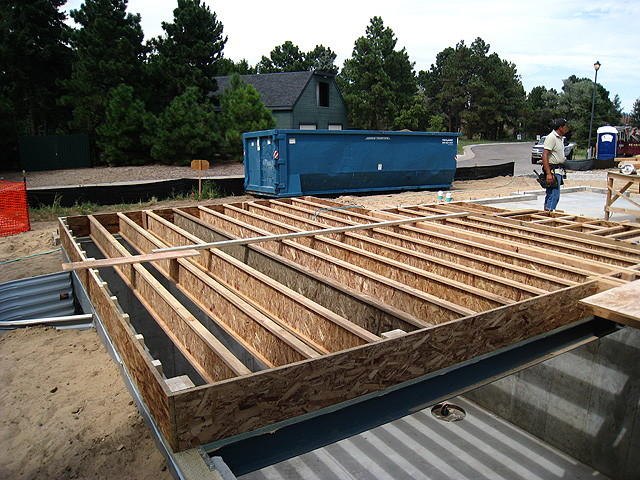

Last section of floor before sheathing

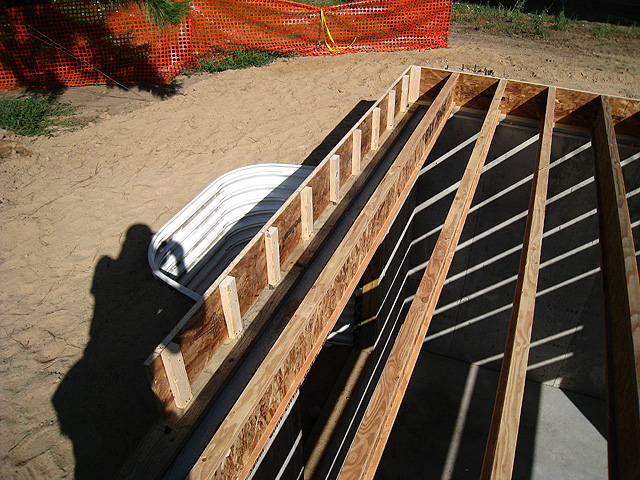

Parallel rim is reinforced with blocks

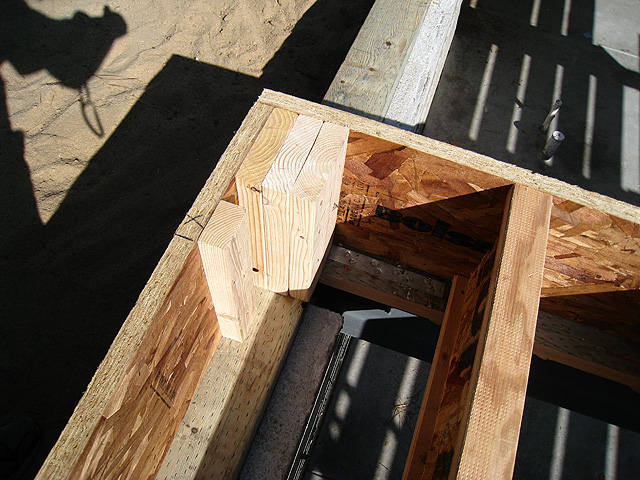

Big blocks under big load points

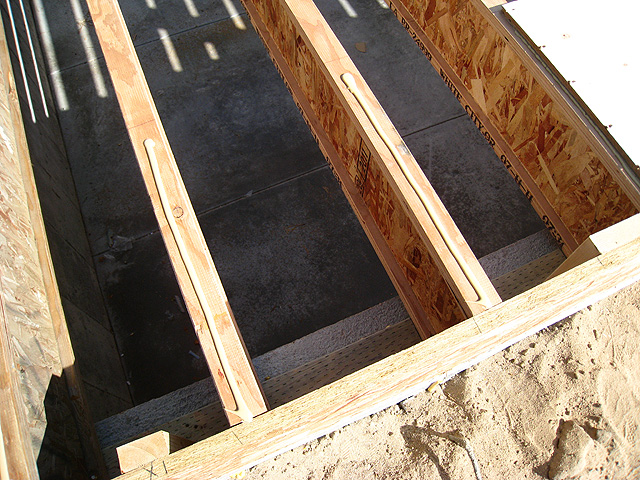

Plywood is glued and nailed with ring shank nails
Sill plate installed over spray foam

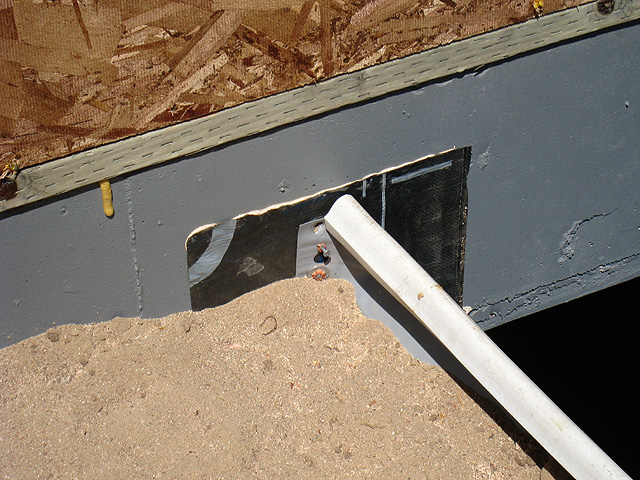

Window wells installed over Ice&Water Shield

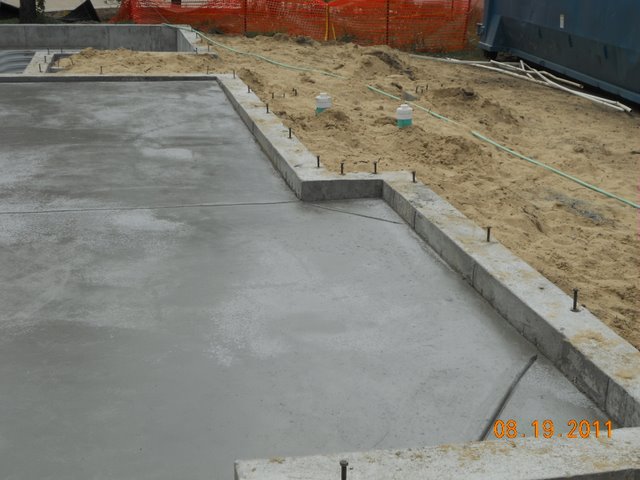

Garage corners sloped away from foundation

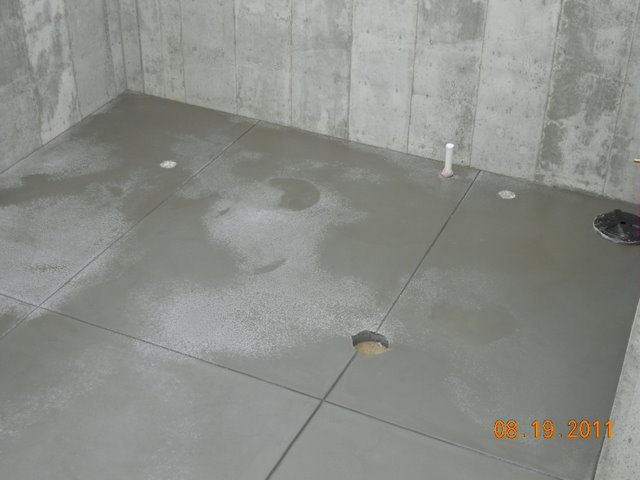

Curing compound evident on slab surface

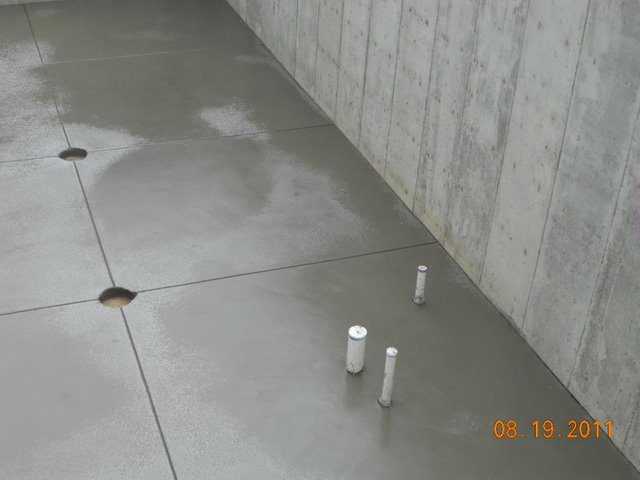

Basement bath area slab complete

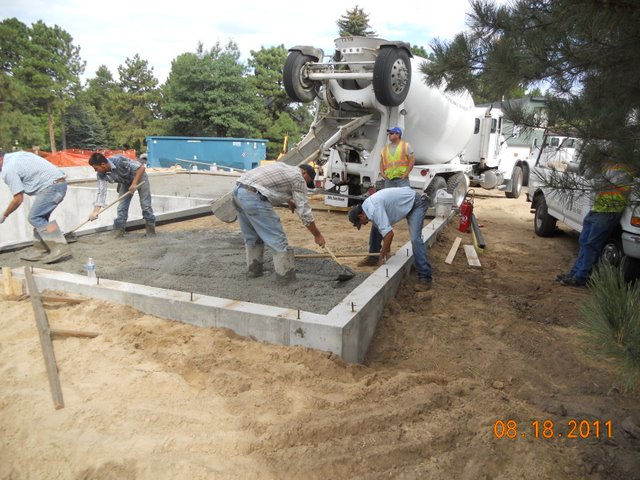

Single car garage pour started
Bull float slab for future finishing

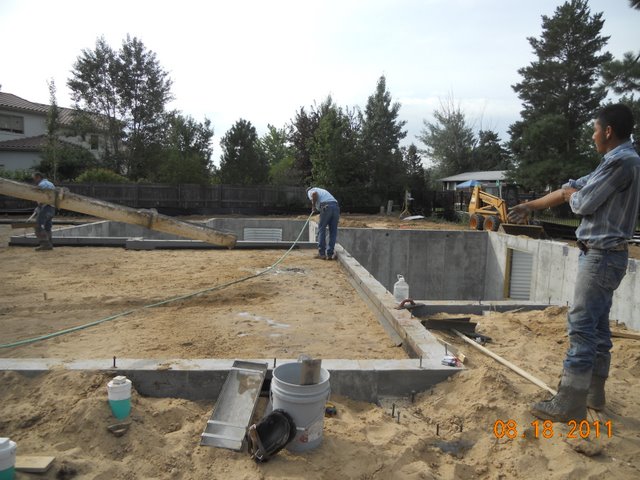

Garage slab wetted down prior to pour

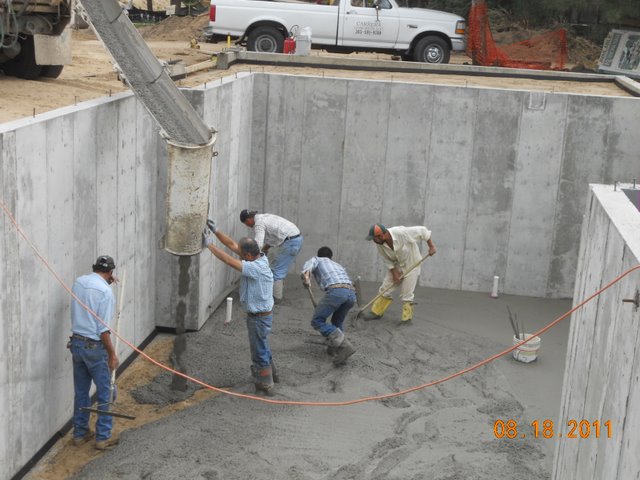

Off loading and spreading concrete for basement

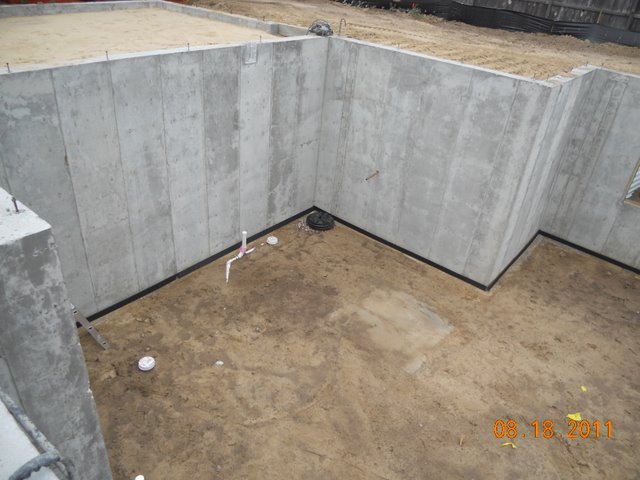

Basement graded and wetted down for slab pour
Rough-in plumbing for future basement bath

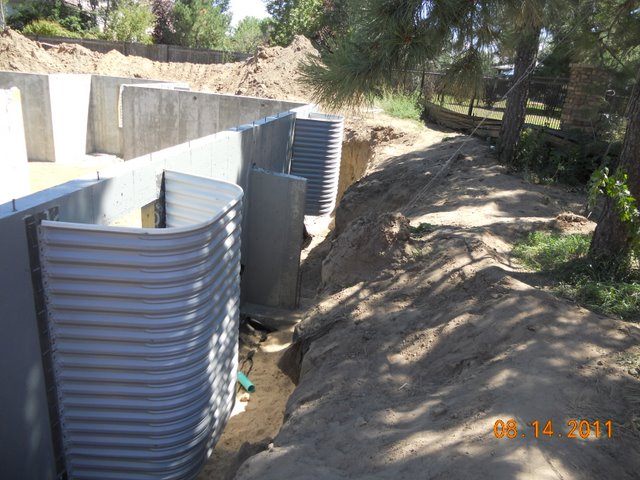

Window wells hung for backfill
2-way sewer cleanouts to left of entry porch

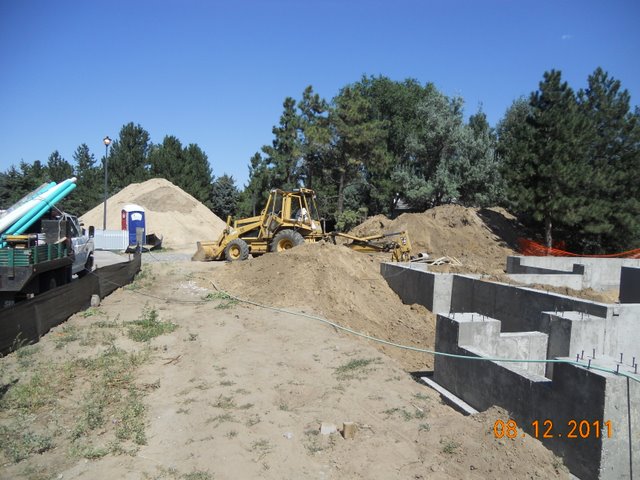

Backhoe working on water to meter pit

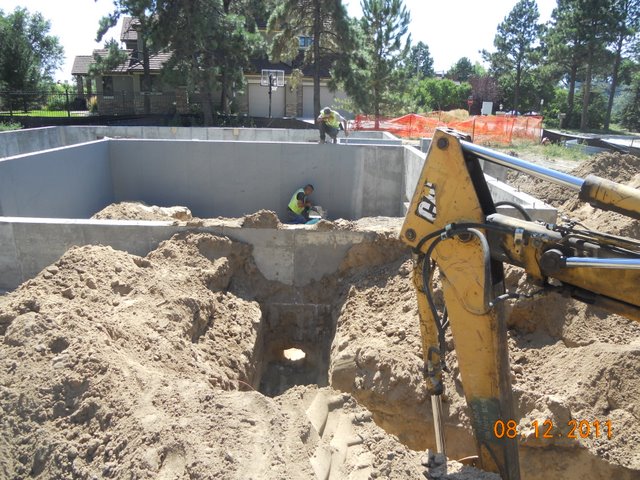

Notched sewer knockout for future sleeve through garage

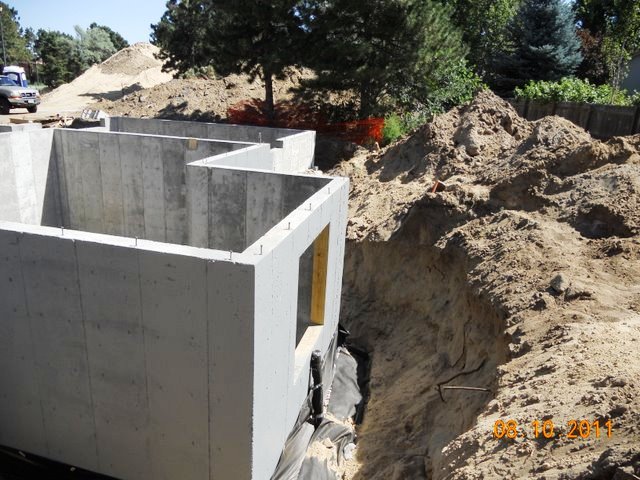

Foundation with waterproofing & drain complete
Foundation drain complete with window well drain

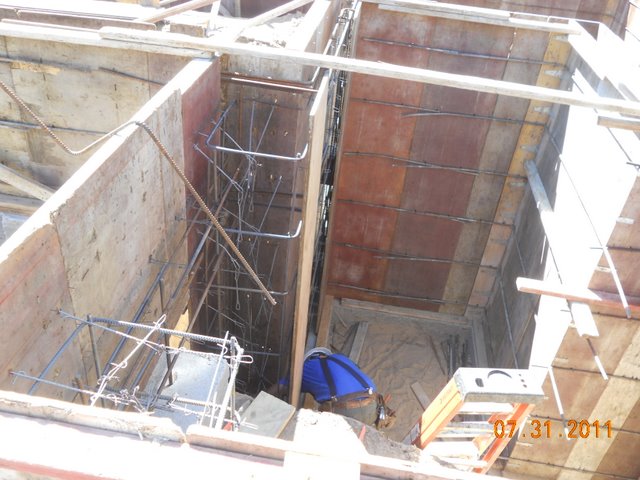

Entry columns reinforced with additional rebar

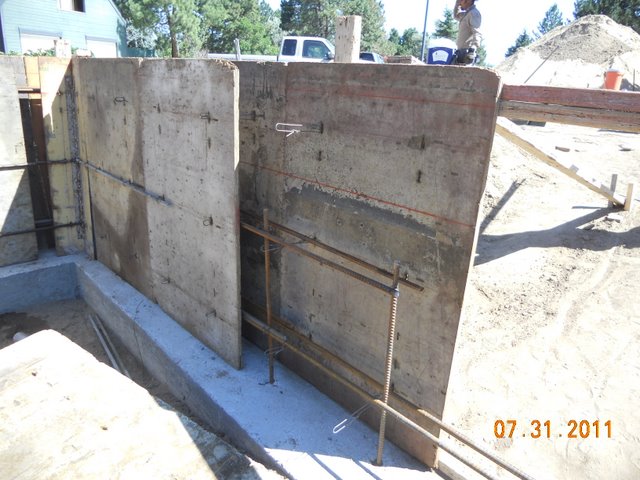

Garage wall rebar and footing

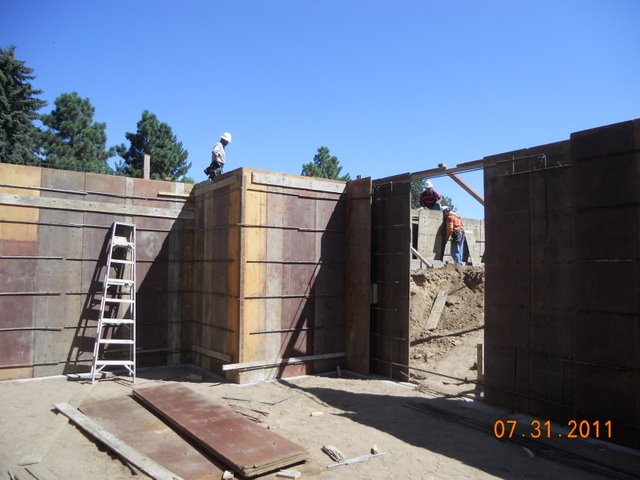

Basement forms secured for concrete pour

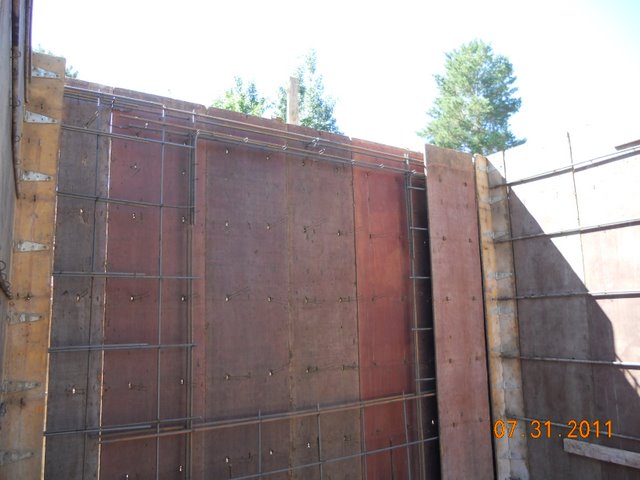

Rebar reinforcement at basement window opening (typical)

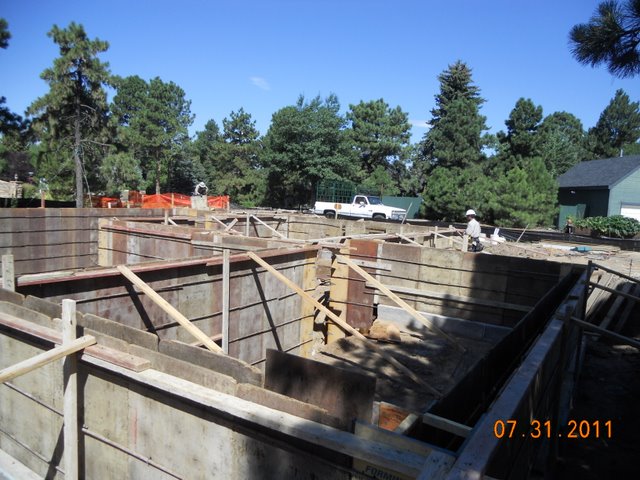

Foundation forms braced for concrete pour
UFER extended from footing
Foundation forms and rebar staged for installation
Foundation forms - basement

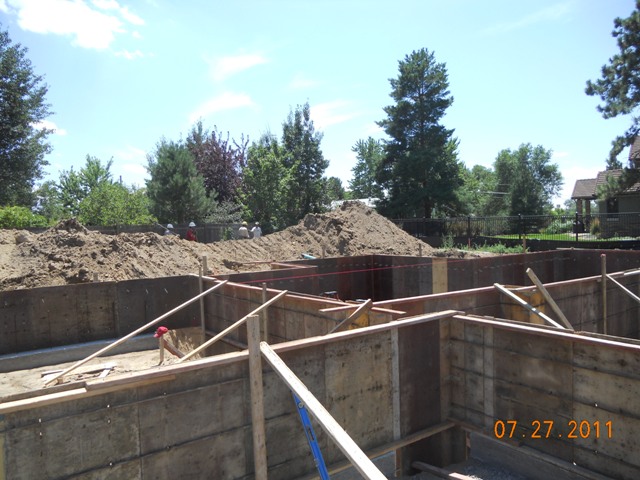

Foundation forming started at garage area

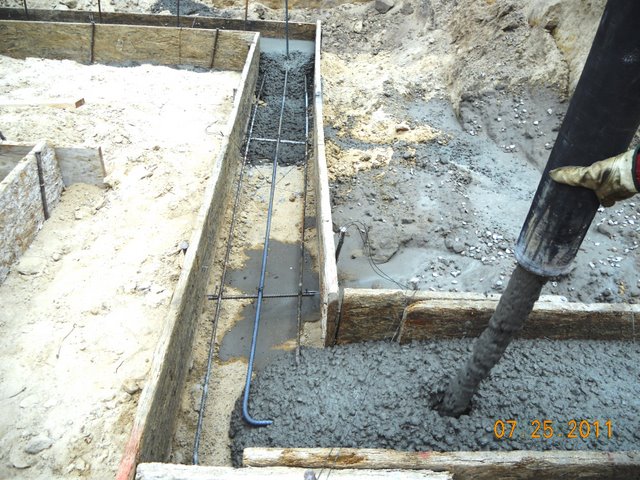

Concrete pumped into place
Future electric ground (UFER) tied to footing steel

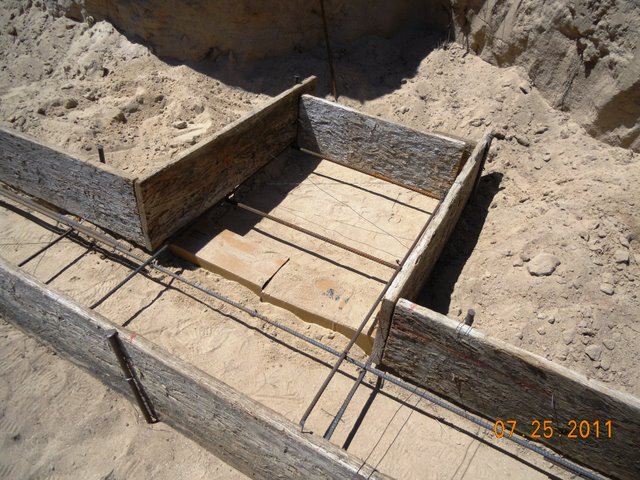

Footing at west counterfort

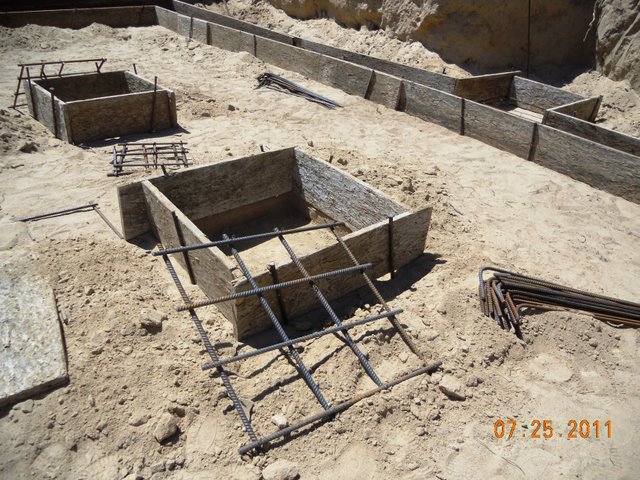

Foundation pad ready for pour

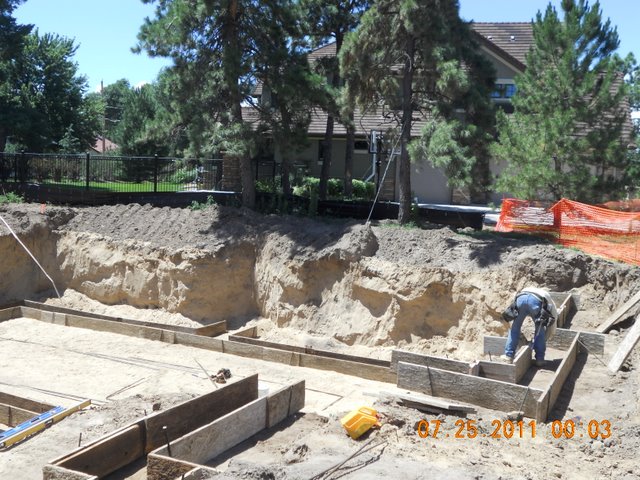

Forming end of porch footing

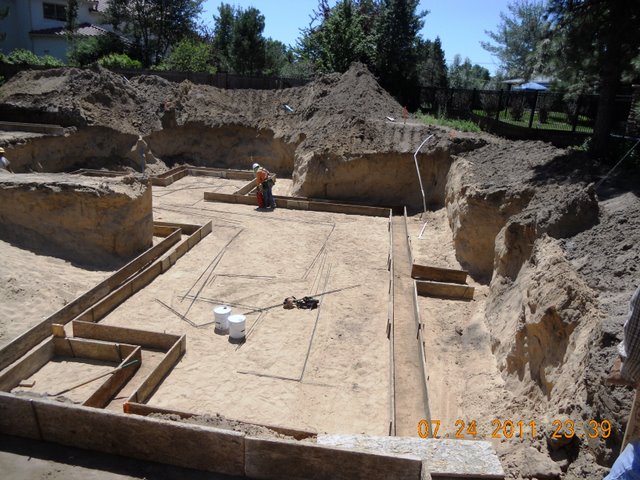

Partial basement footings

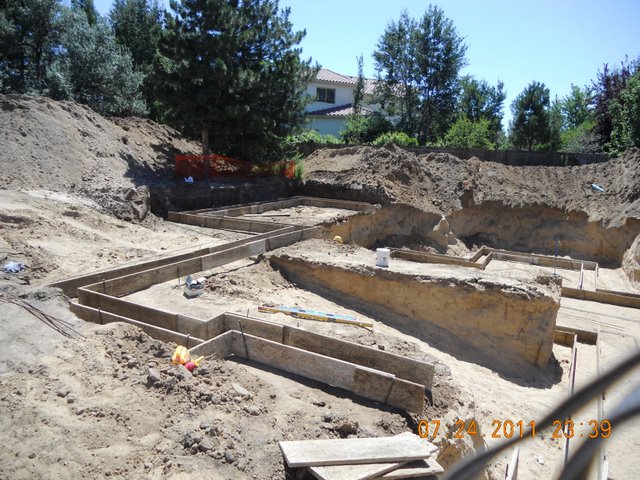

Garage footings in progress

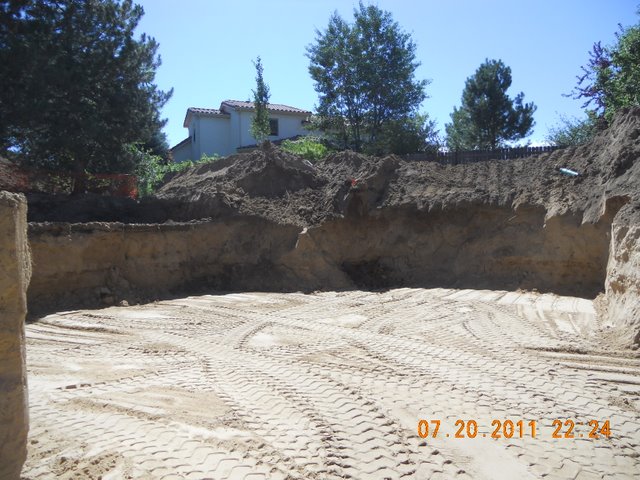

Excavation complete - view to south

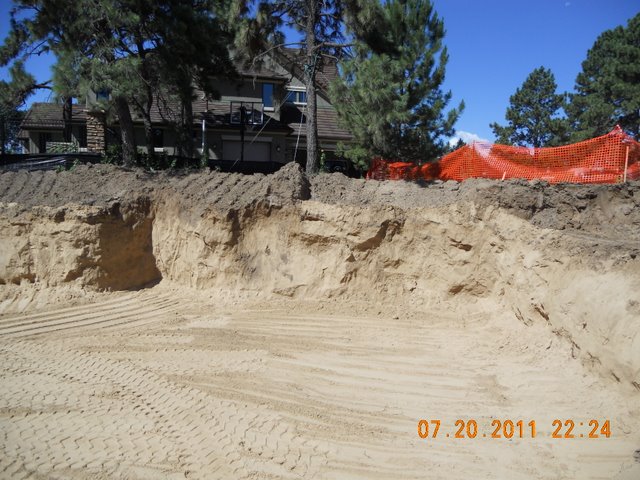

Excavation complete - view to west

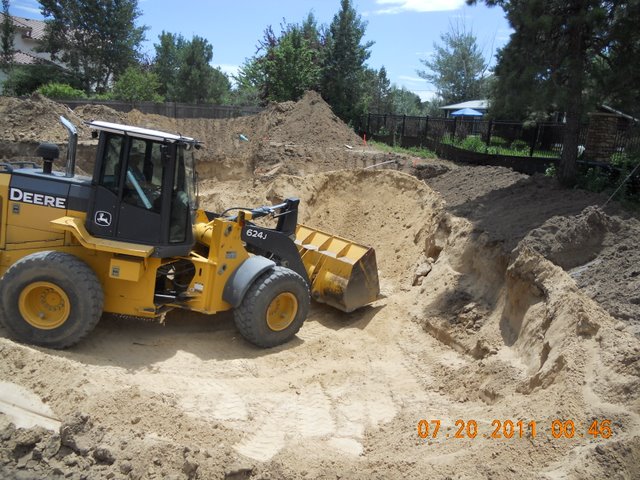

Excavation in progress

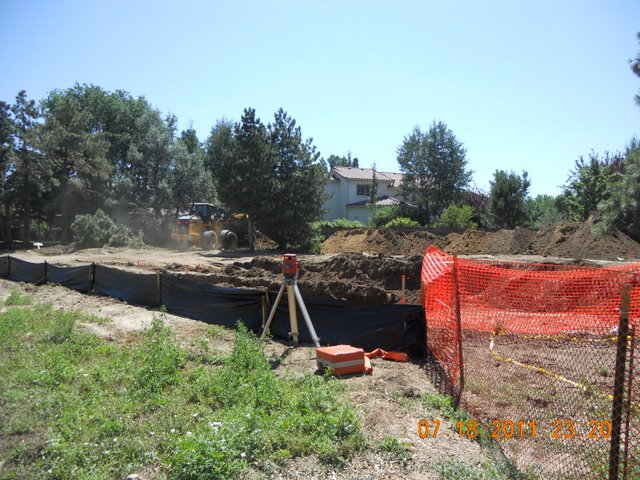

Partial dirt storage on site

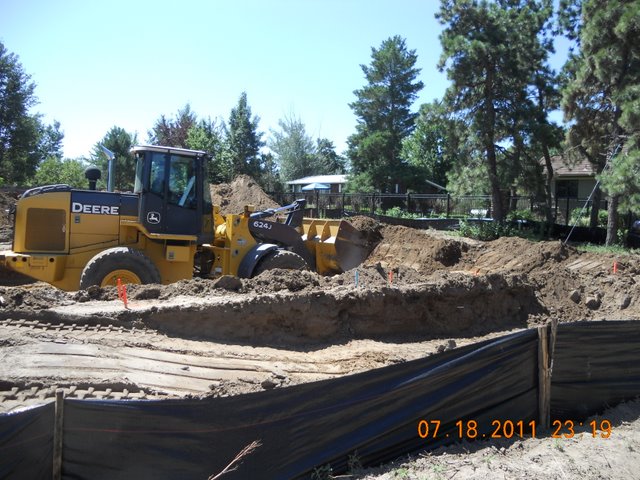

Chuck starting excavation

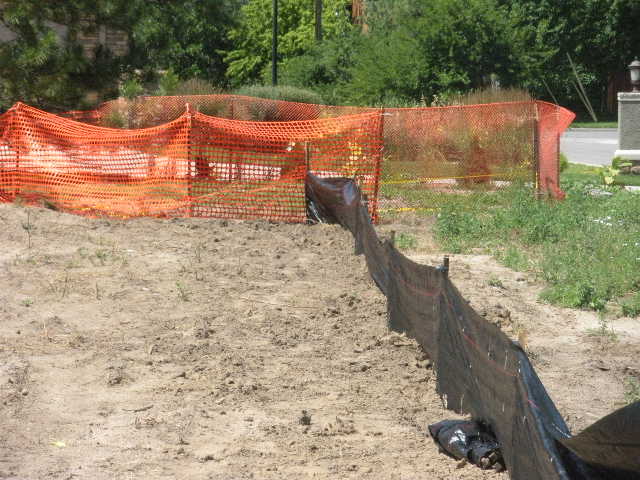

Silt fence for drainage control & orange fence is protection for water quality pond area

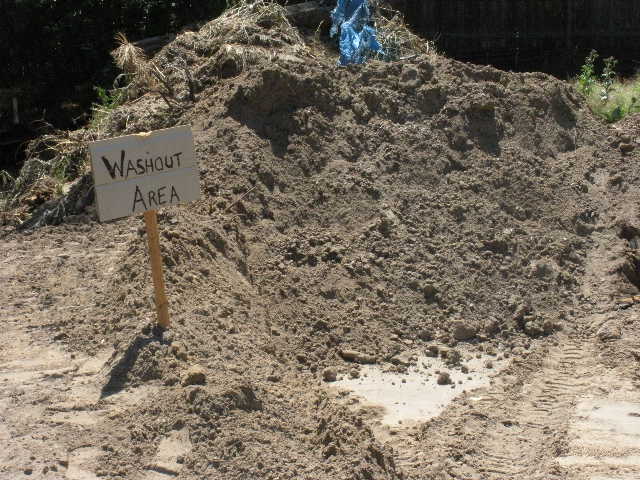

Washout area for concrete truck

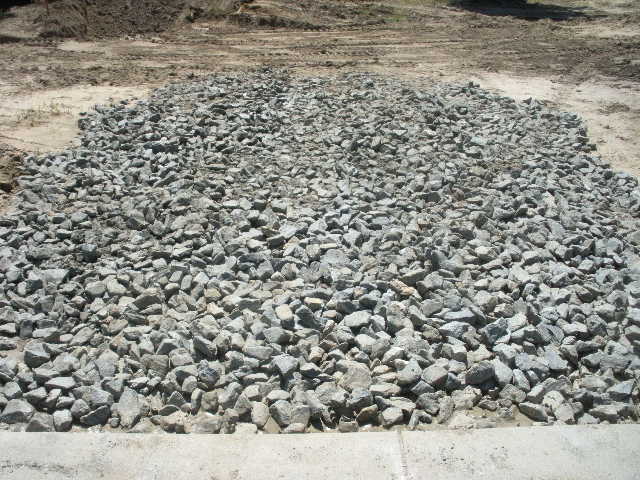

Tracking mat in place to help keep street clean

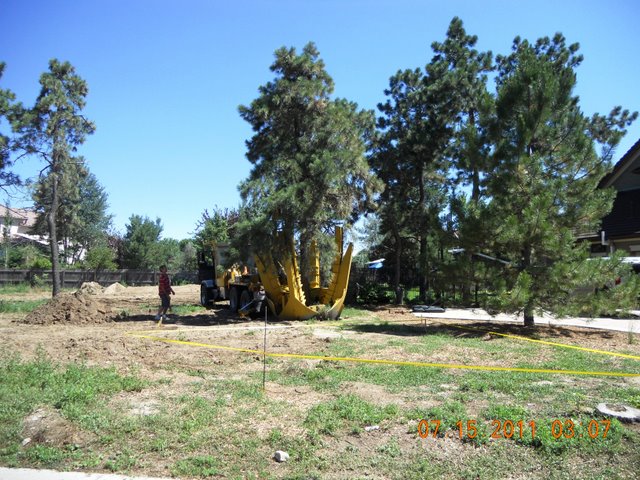

Checking for plumb at new location

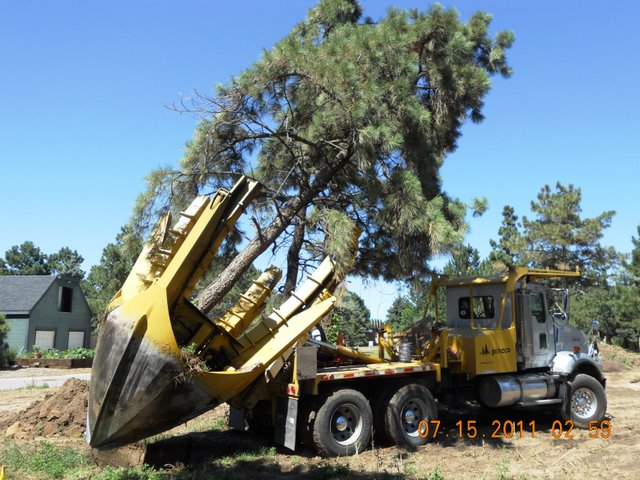

Tree in Spade - Ready for Transplant

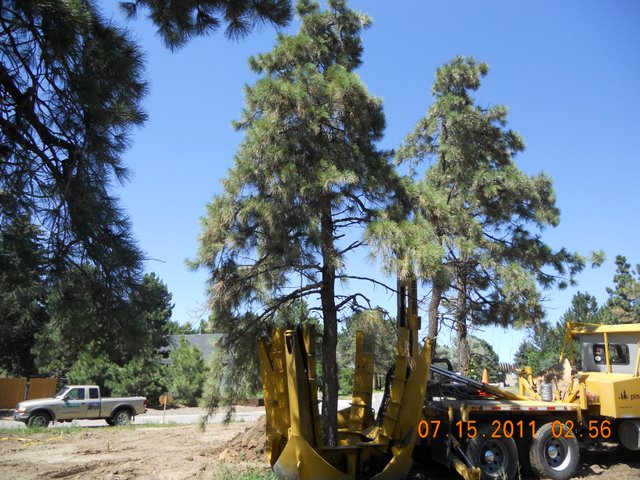

Start of Tree Relocation
