Buck Hill Addition & Basement Remodel

Click on photos to enlarge:

•

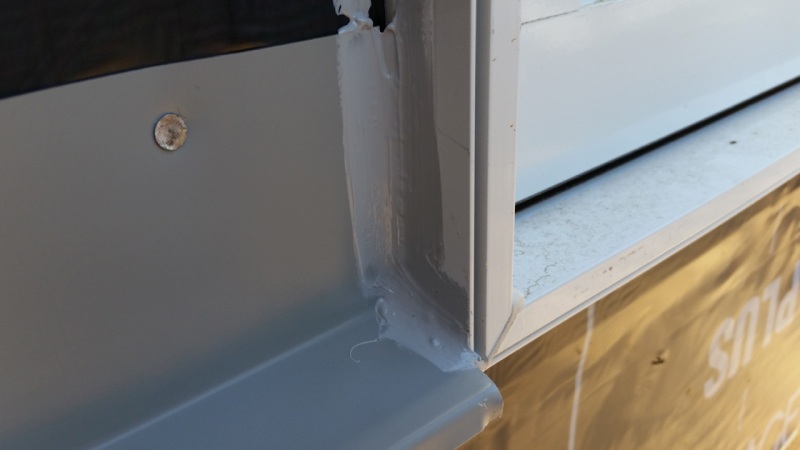

  Flashings are sealed to windows
•

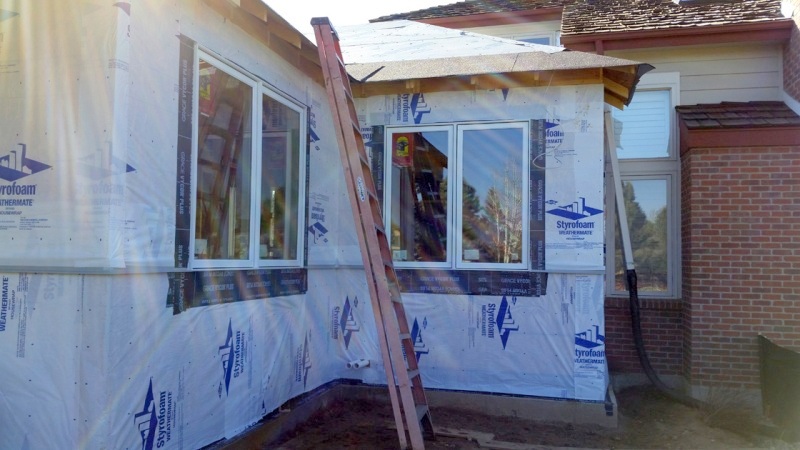

  House is wrapped
•

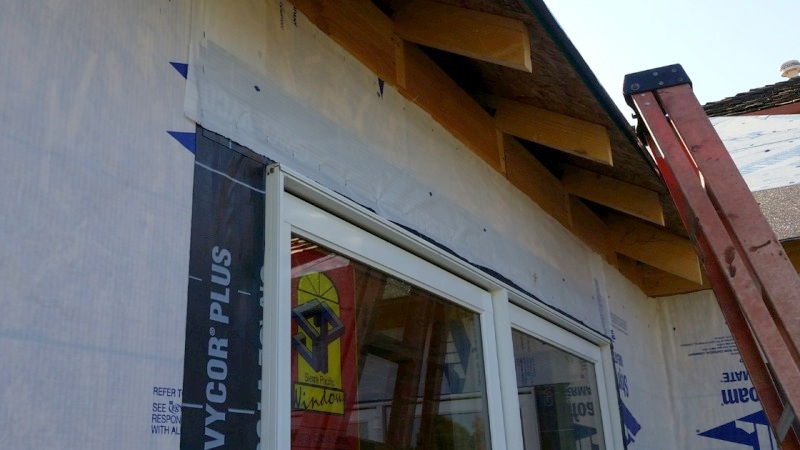

  Paper over upper Vycor
•

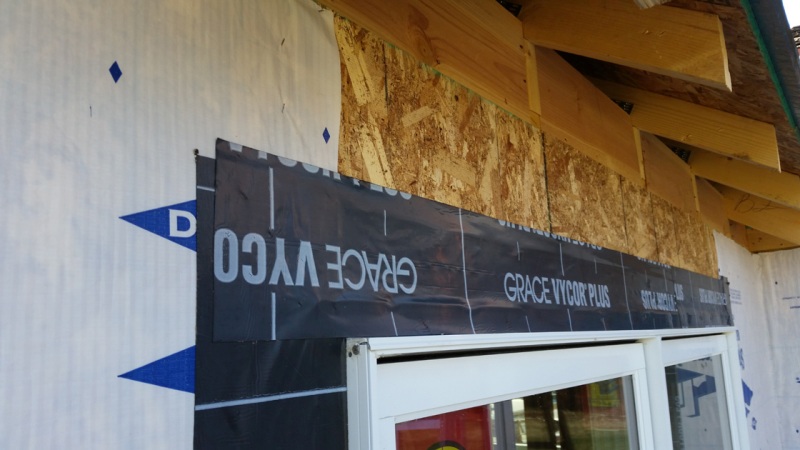

  Vycor over metal window flashing
•

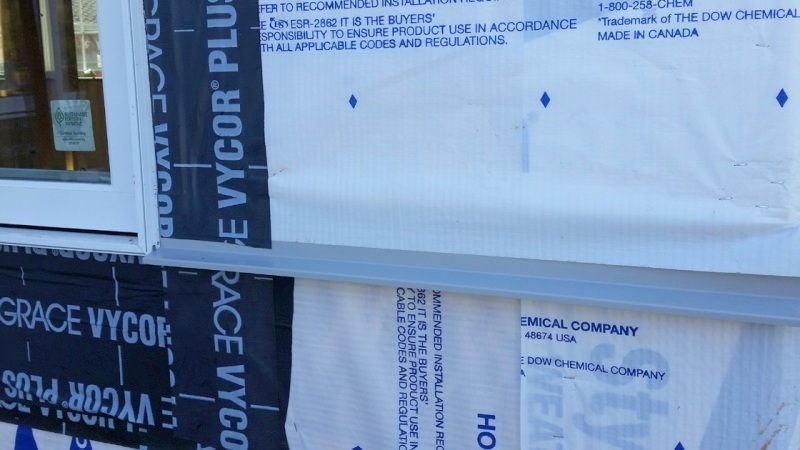

  Vycor over paper and metal flashing
•

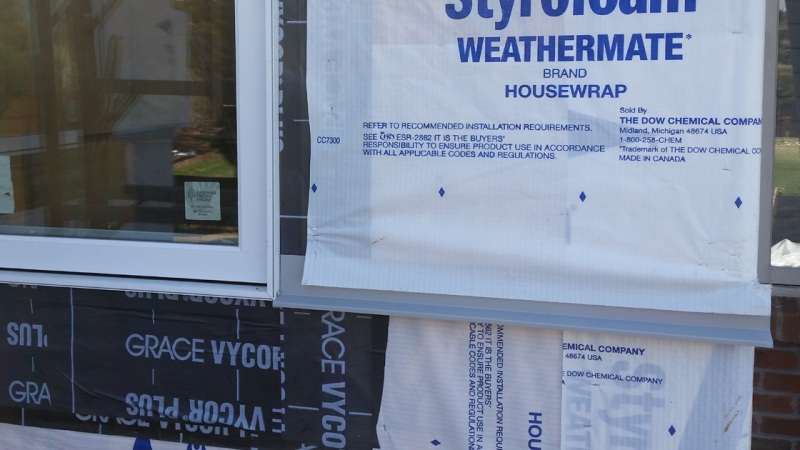

  Upper paper over metal flashing
•
  Vycor over paper,metal flashing over Vycor
•
  Lower paper with metal flashing for bricks
•
  Vycor flashing over brick ledge
•

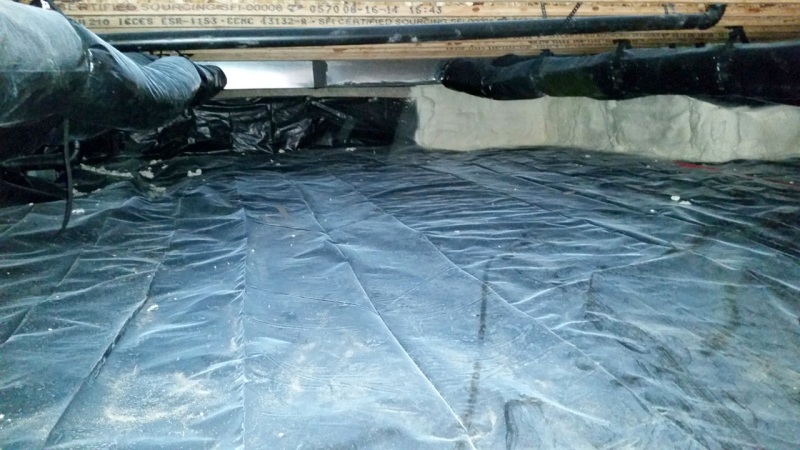

  10 mil poly covering over crawlspace floor
•

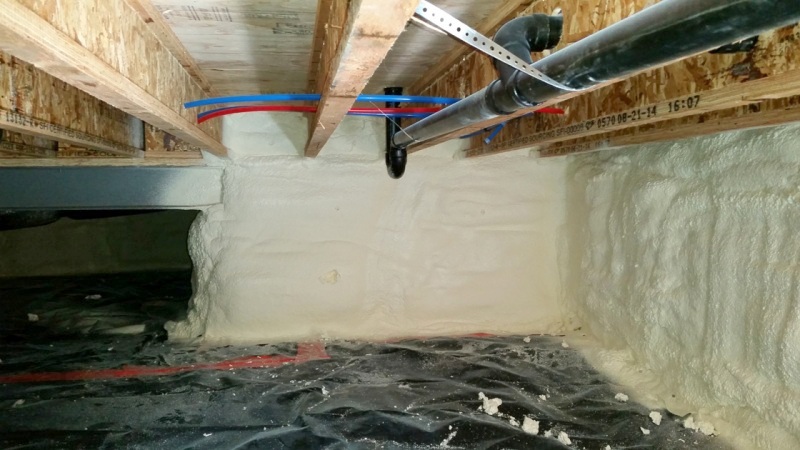

  Crawlspace foundation walls are insulated with closed cell foam
•

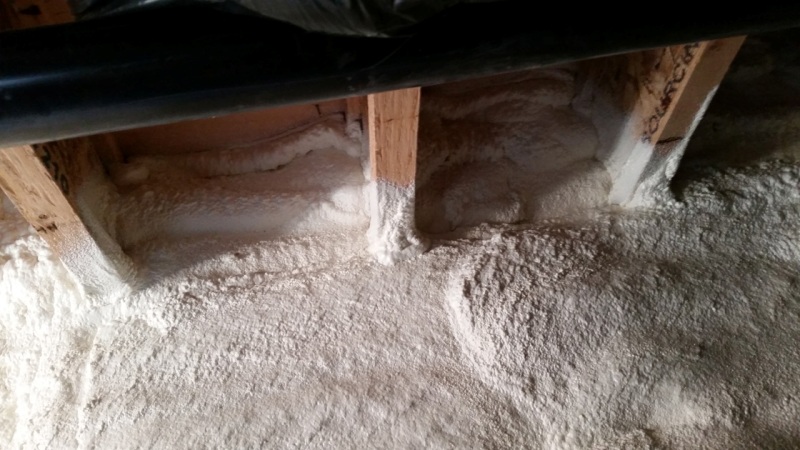

  Floor rim is foamed
•

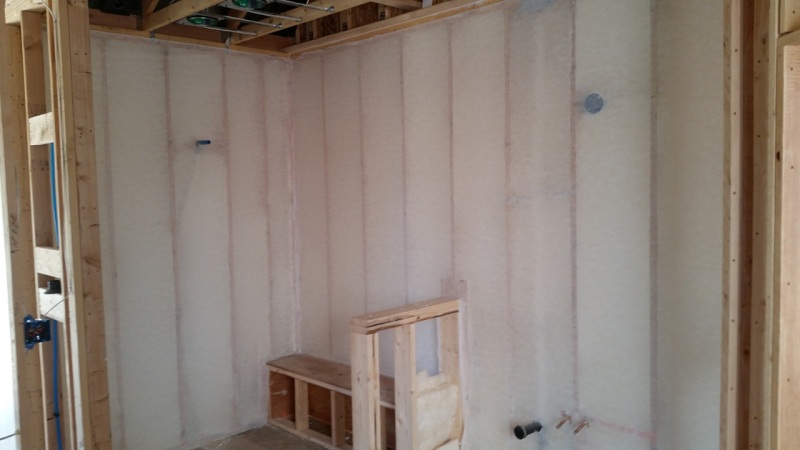

  Stapled netting for blown insulation over closed cell foam
•

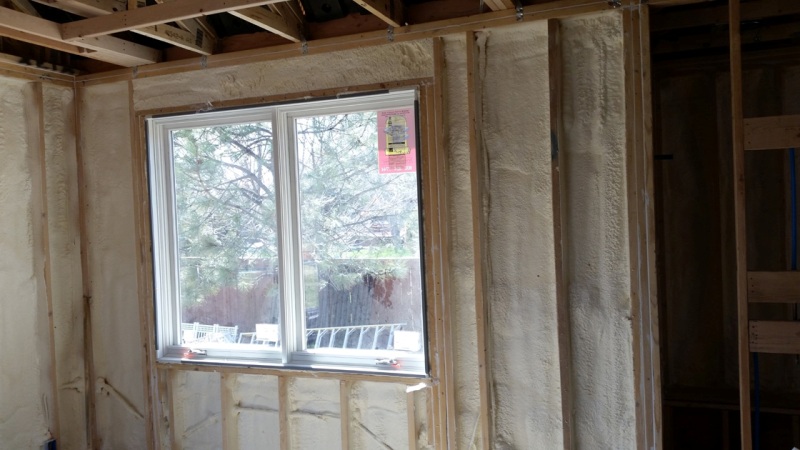

  Headers are foamed full
•

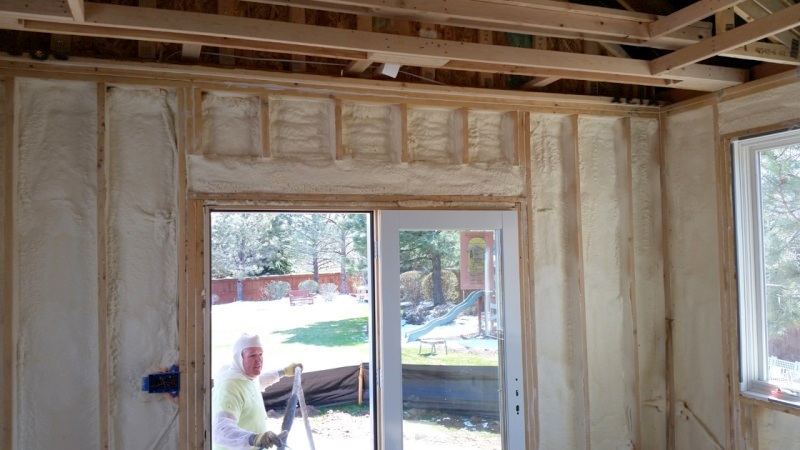

  Walls are insulated with 2 inches, R-14 closed cell foam
•

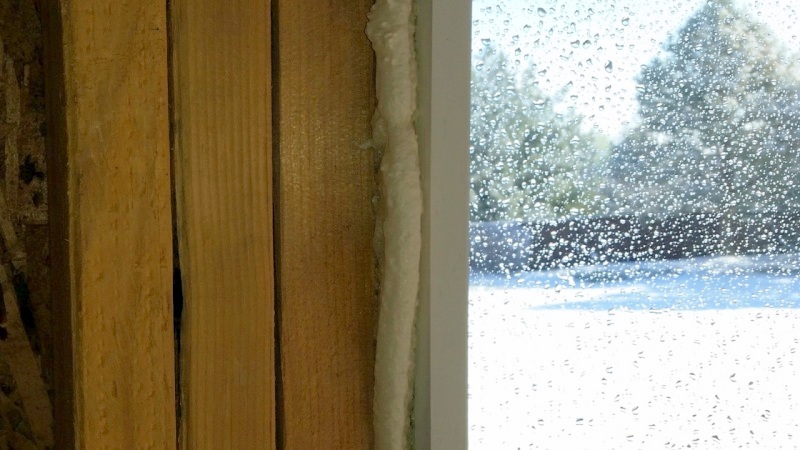

  Windows are foamed
•
  Spray foam trailer
•
  Gene checking wall temperature before foam spraying begins
•

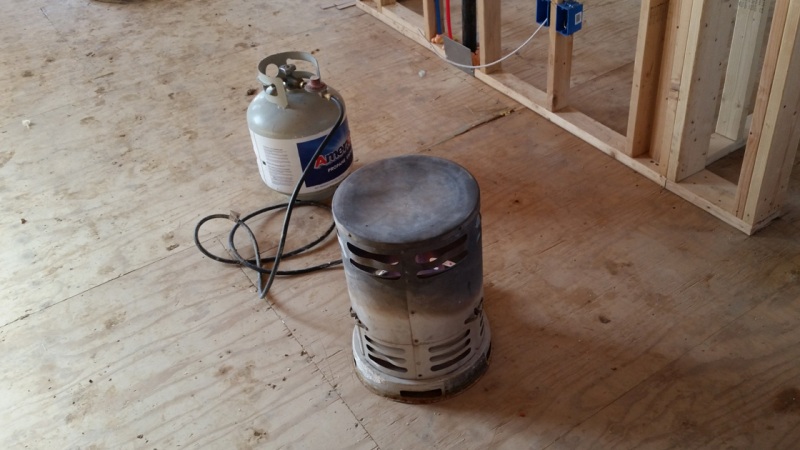

  Adddition was heated before closed cell foam was installed
•

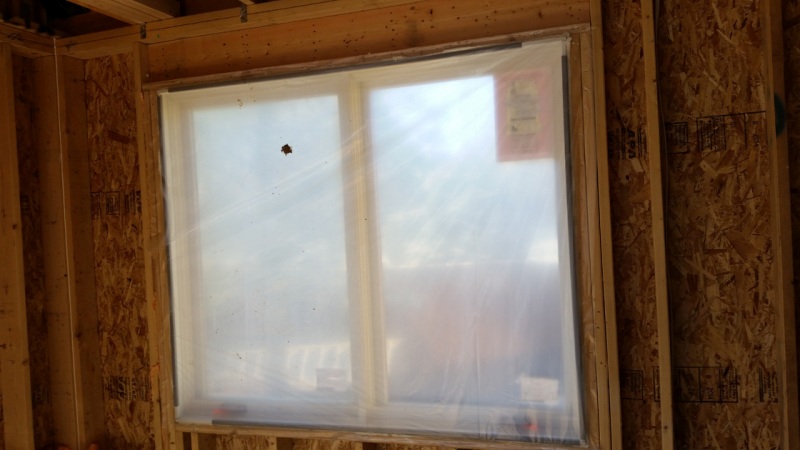

  Windows are protected from foam spray
•

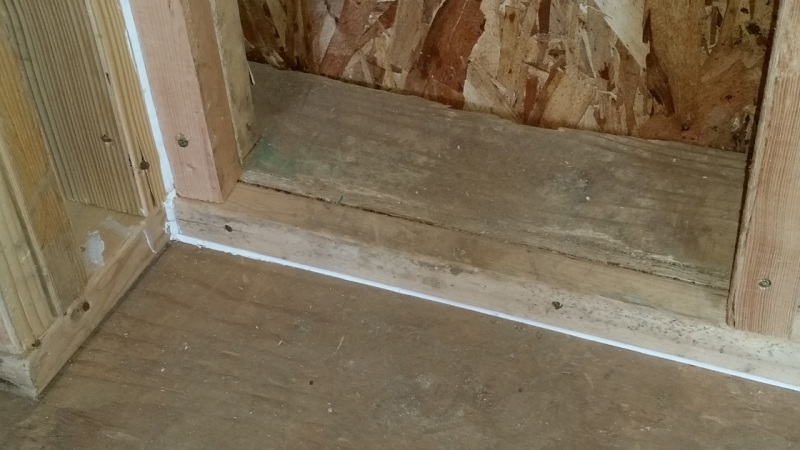

  Caulked corners and bottom plates
•

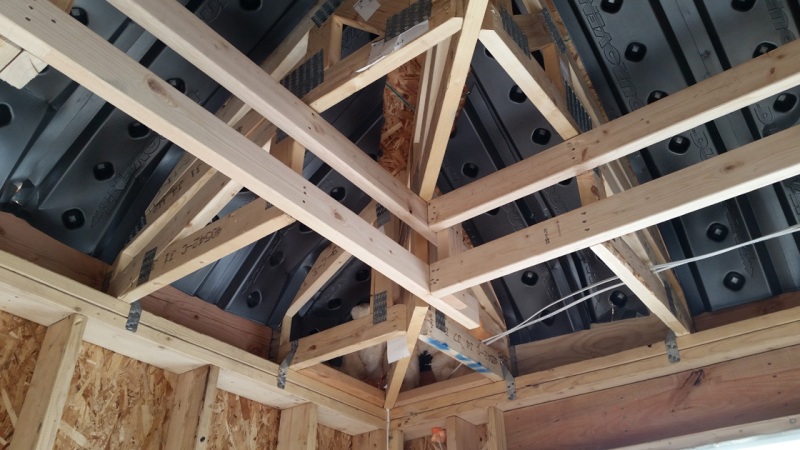

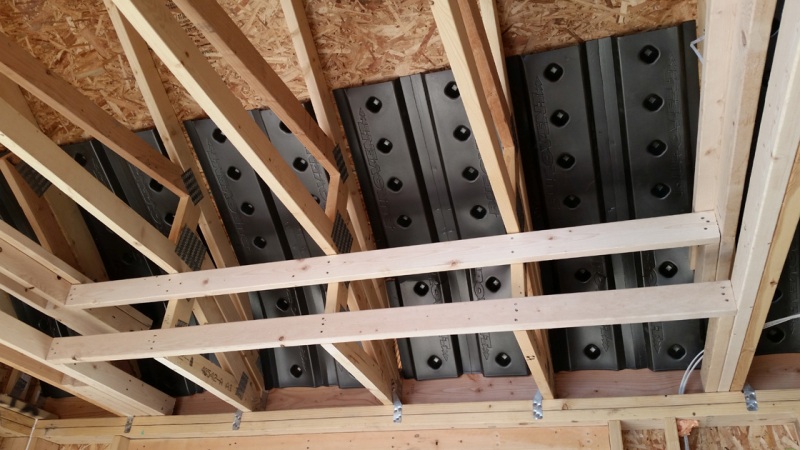

  Attic baffles
•
  Attic baffles
•
  Trim and siding material are protected
•

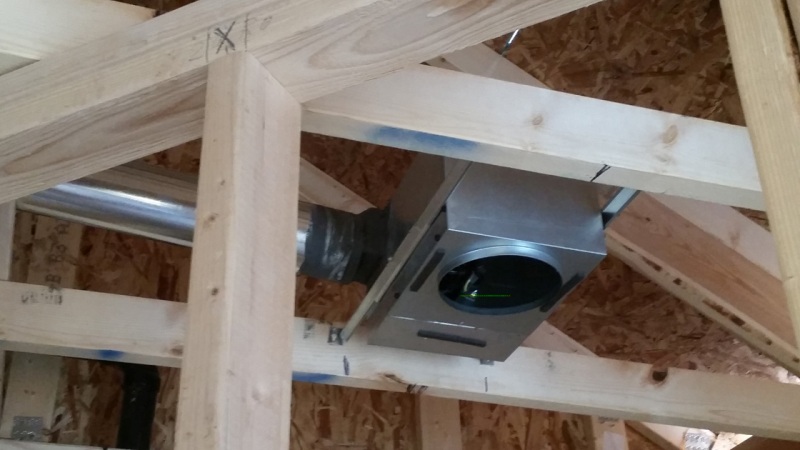

  One unit for fan and light
•

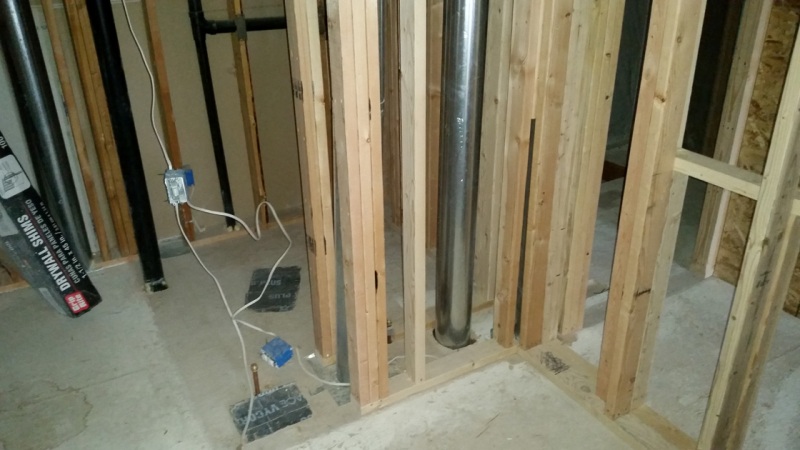

  Framed chase in master closet
•

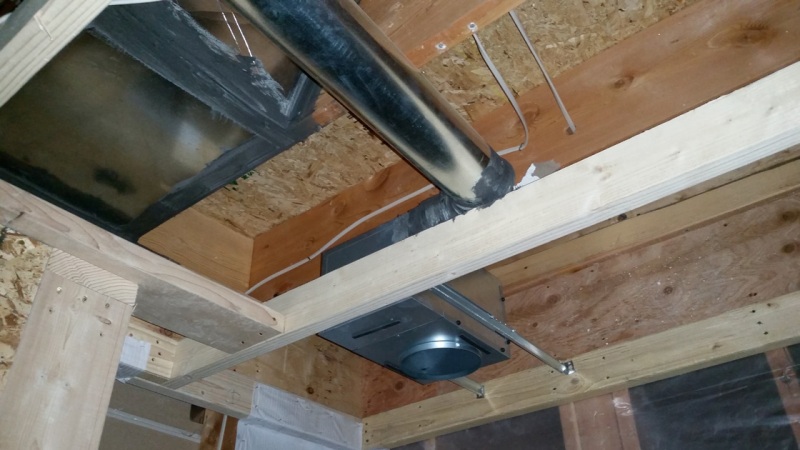

  Powder room fan is installed
•

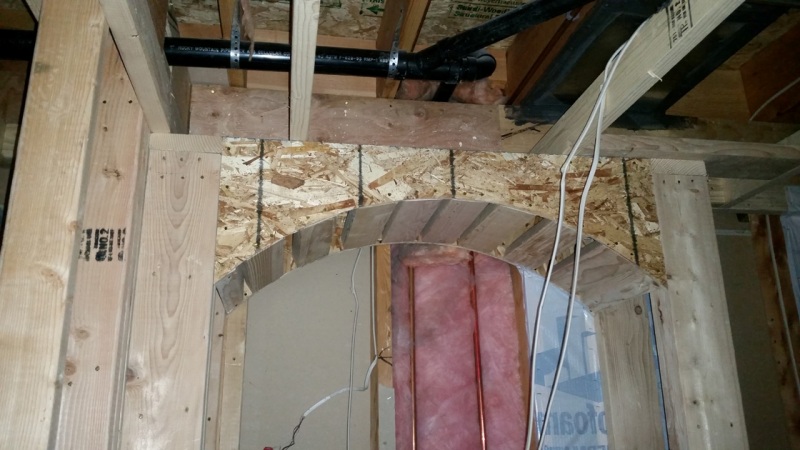

  Powder room soffit
•

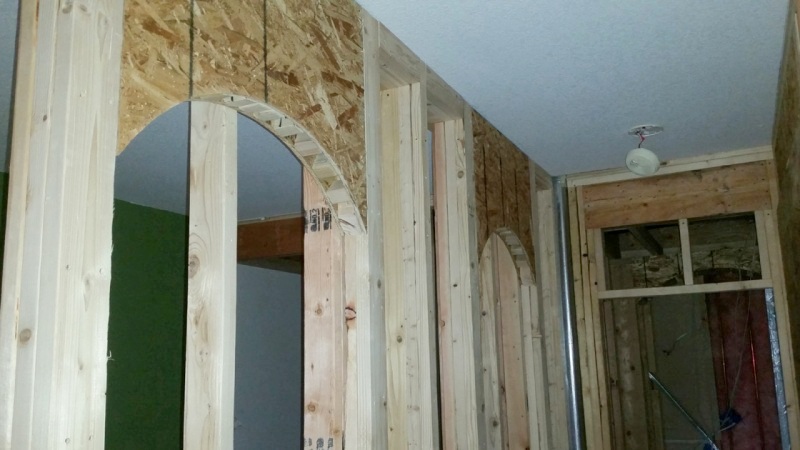

  Hallway art arched niches
•
  New beam in closet to hold upper floor
•

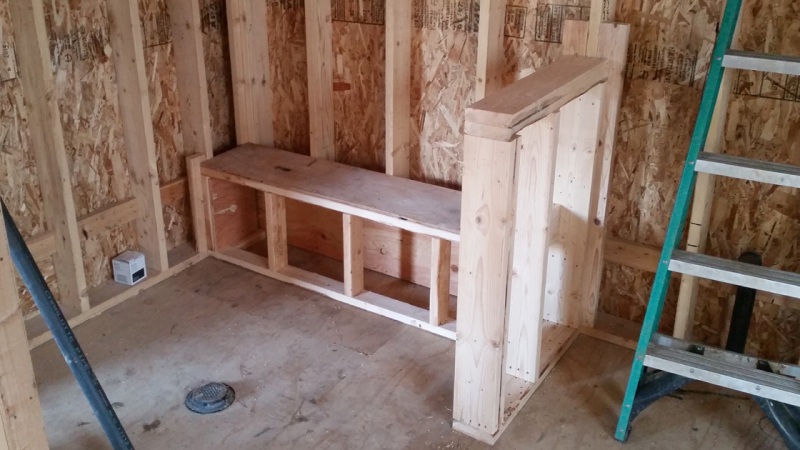

  Shower seat and knee wall
•

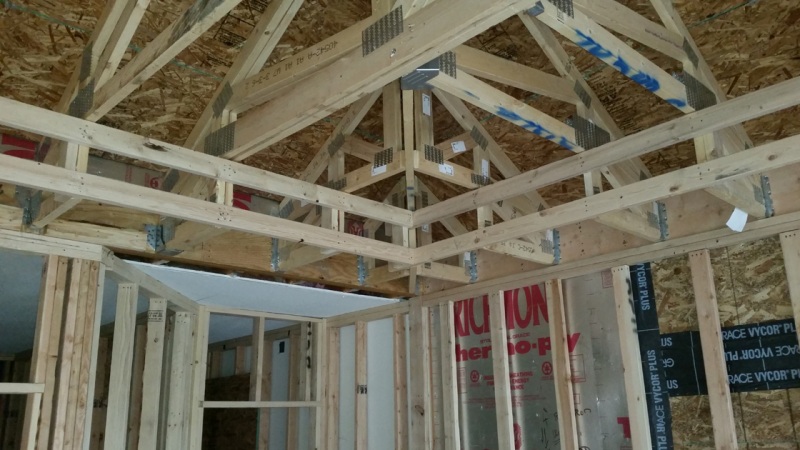

  Coffer ceilings are framed
•

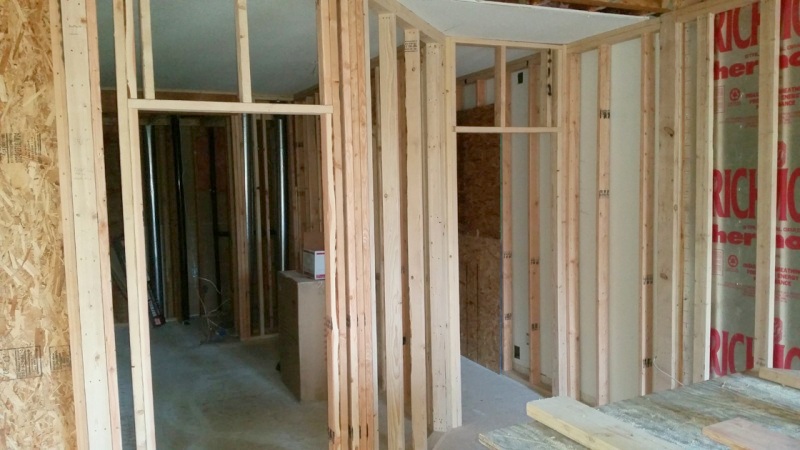

  New closet and hall walls are framed
•

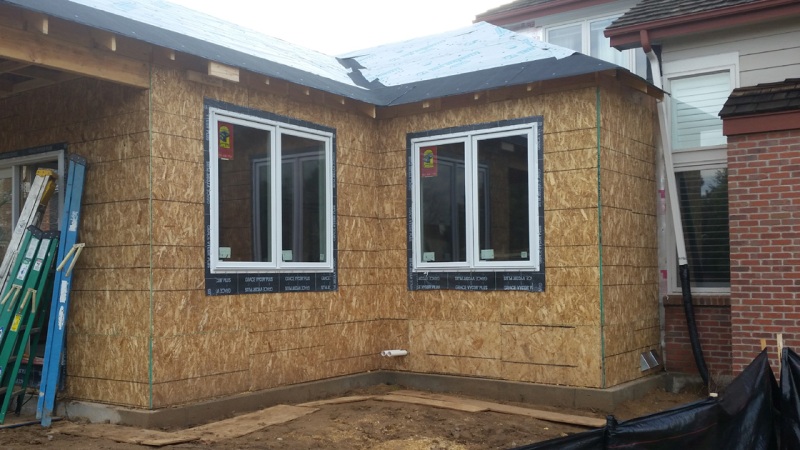

  Sierra Pacific windows are installed
•
  Door is set in polyurethane sealant
•

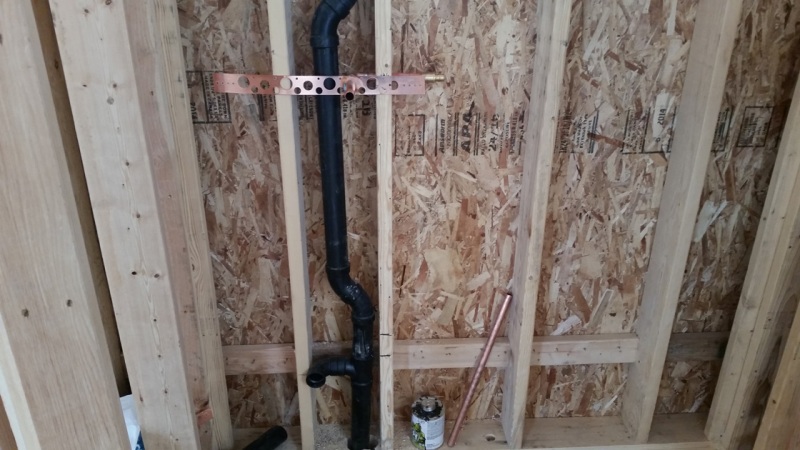

  Plumbing vents are in place
•

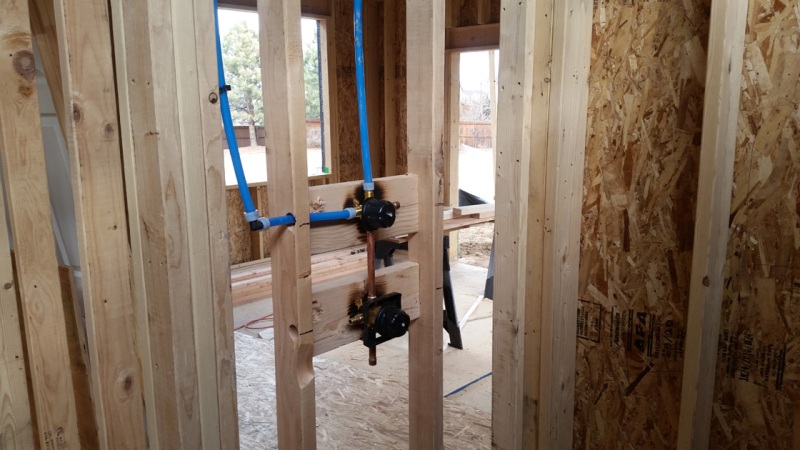

  Shower valve and diverter are installed
•

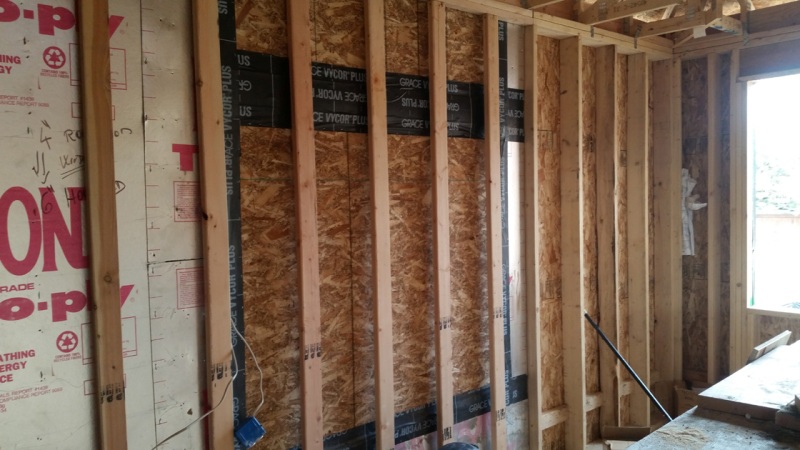

  New wall over frames existing
•

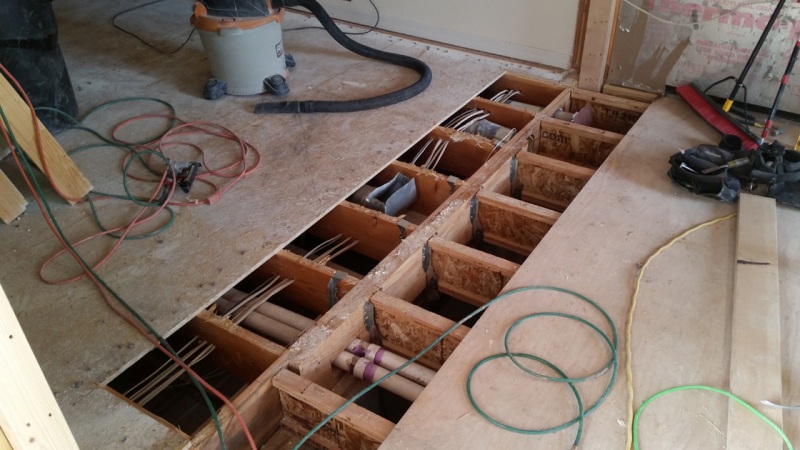

  Transition of new and old floor
•

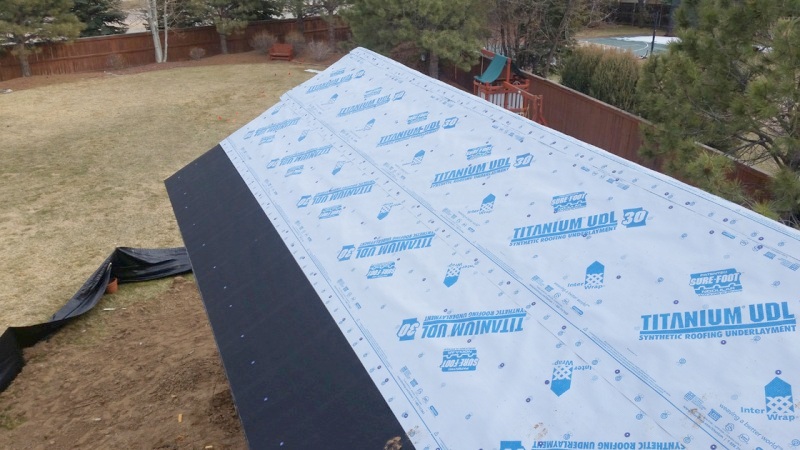

  Roof covered with synthetic underlayment
•

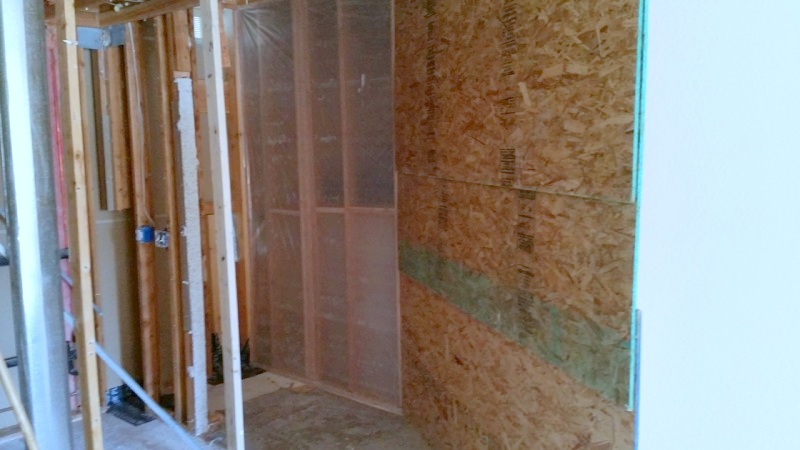

  Plywood barrier to protect existing space
•

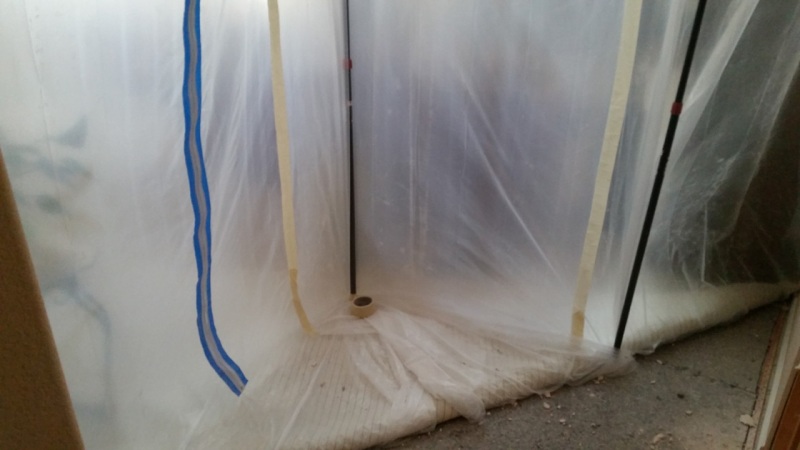

  Plastic barrier for dust control
•

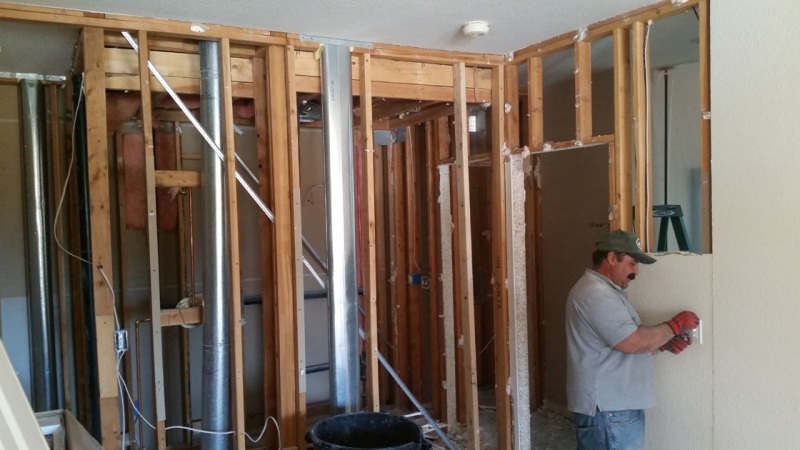

  Demolition of interior spaces to be remodeled
•

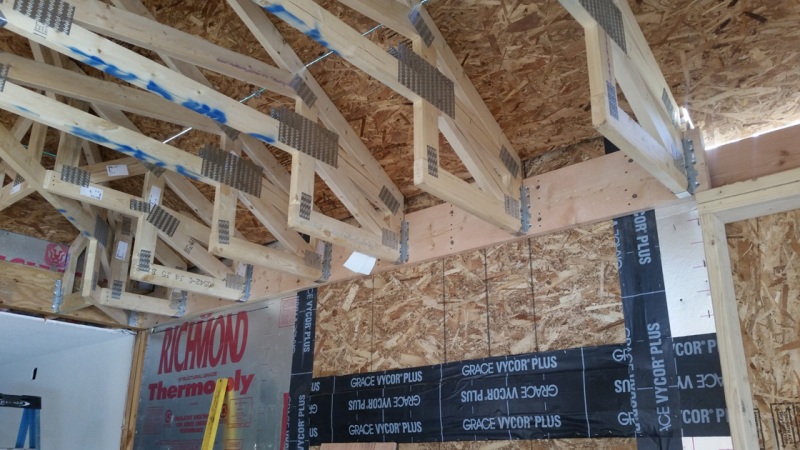

  New bolted ledger to hold trusses
•

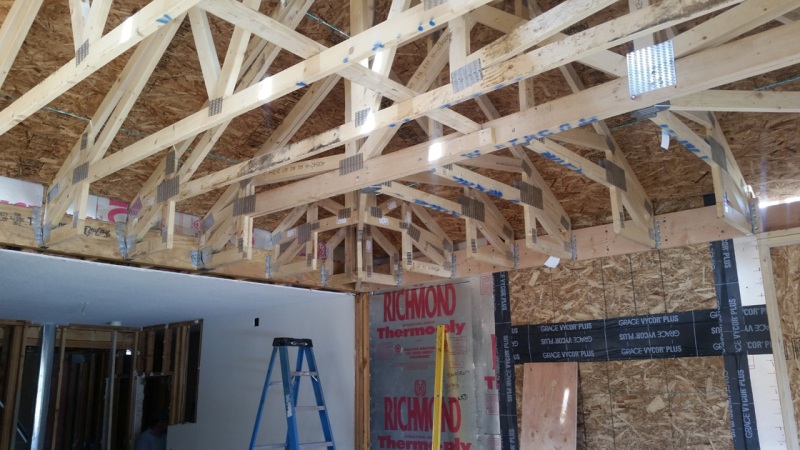

  Trusses are installed, braced and sheathed
•

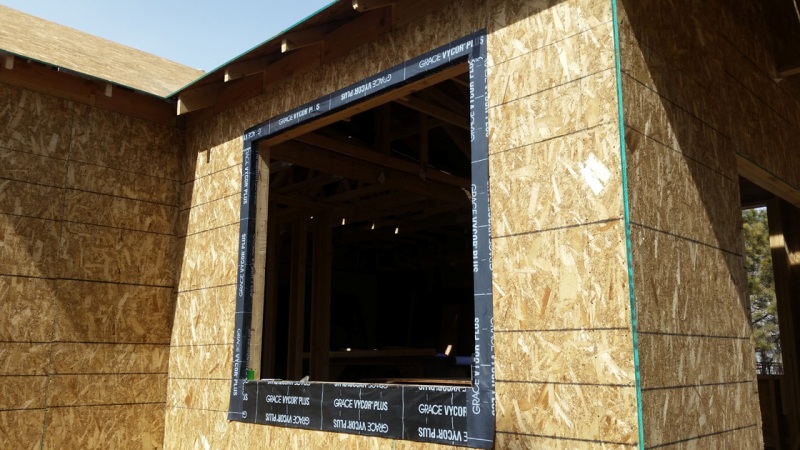

  Vycor installed prior to window installation
•

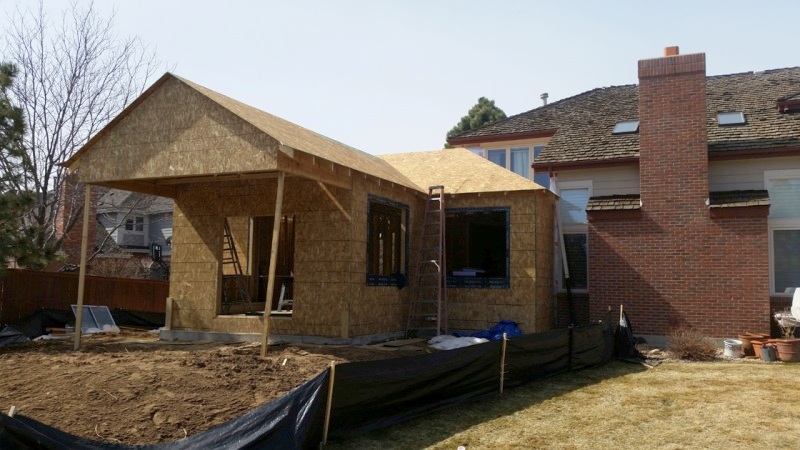

  View from southeast of framed addition
•

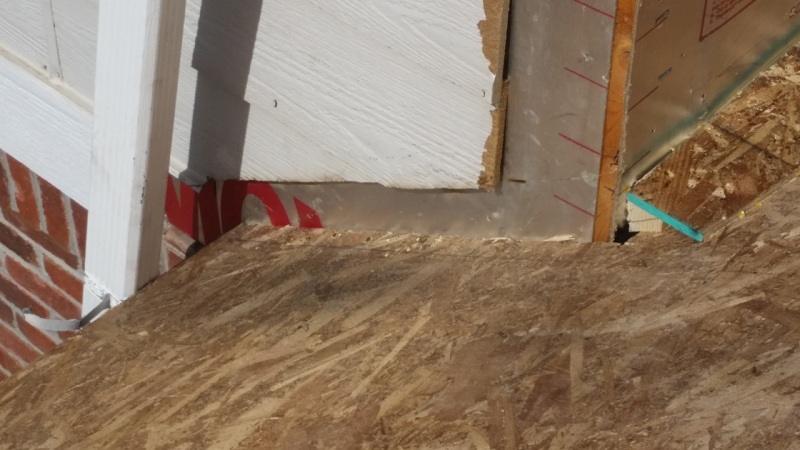

  Wide cricket outlet
•

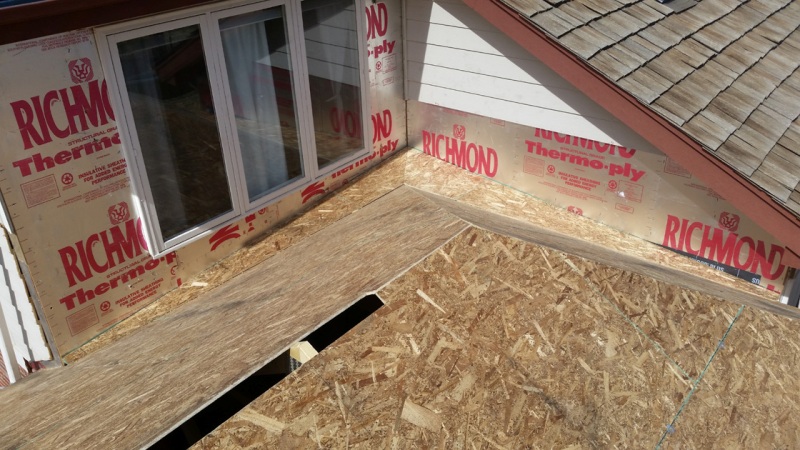

  Double cricket is framed
•

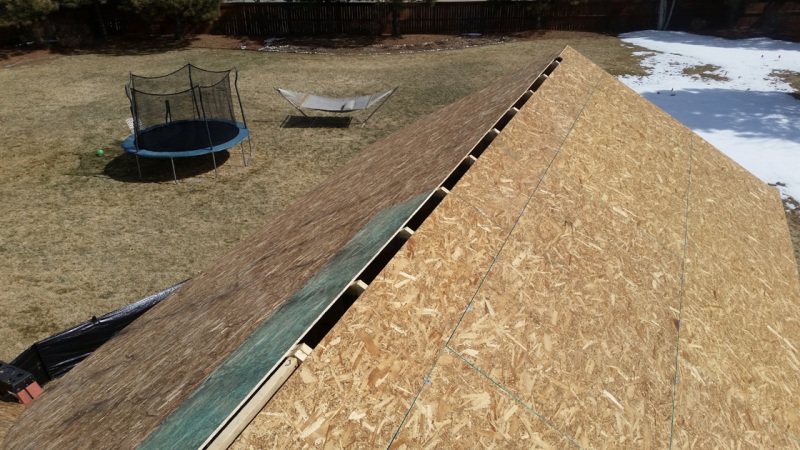

  Roof vents are cut
•

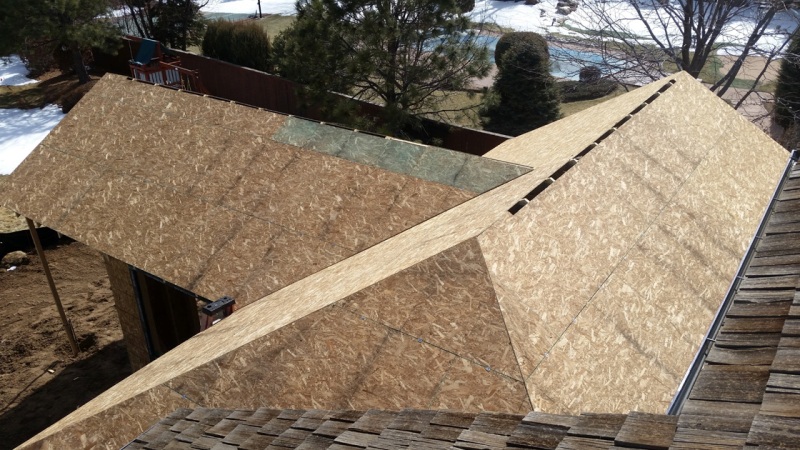

  New roofs above adition
•

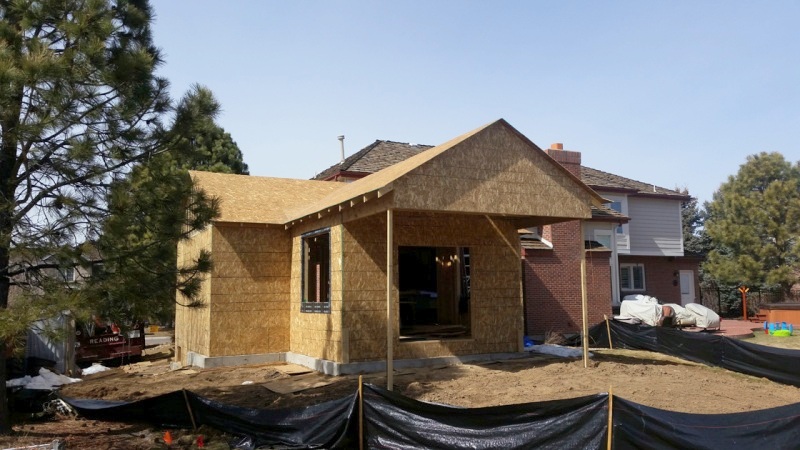

  View from south of framed addition
•

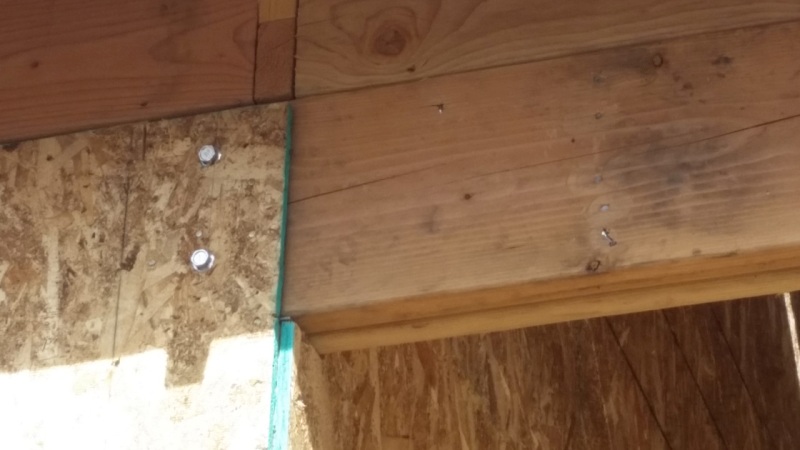

  Porch beams are bolted in pockets
•

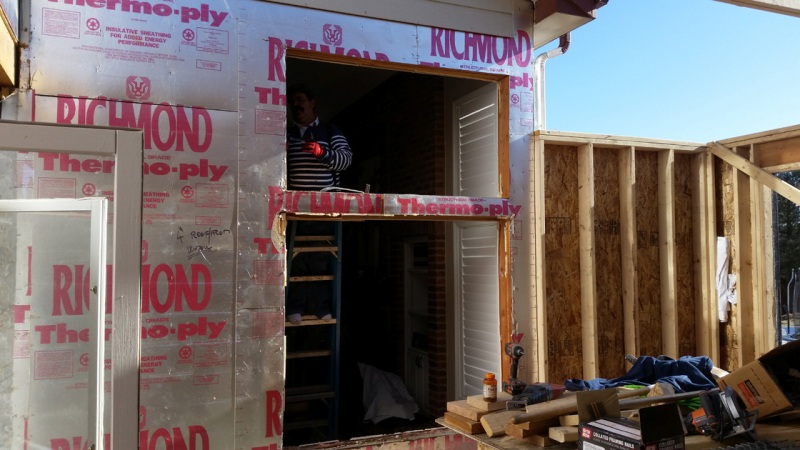

  Existing window is removed
•

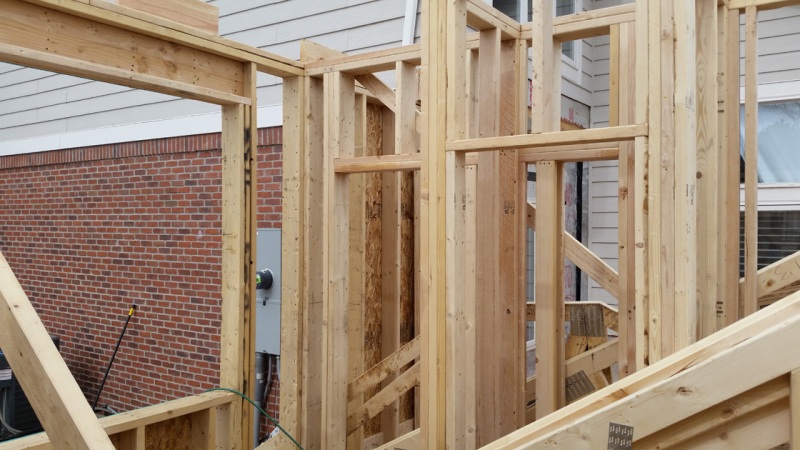

  Framed interior walls
•
  Framed interior walls
•

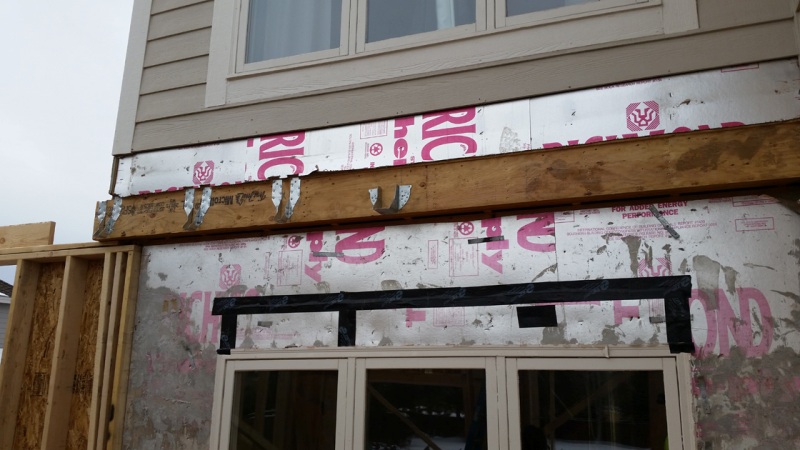

  Truss hangers are nailed
•
  Truss girder is installed
•

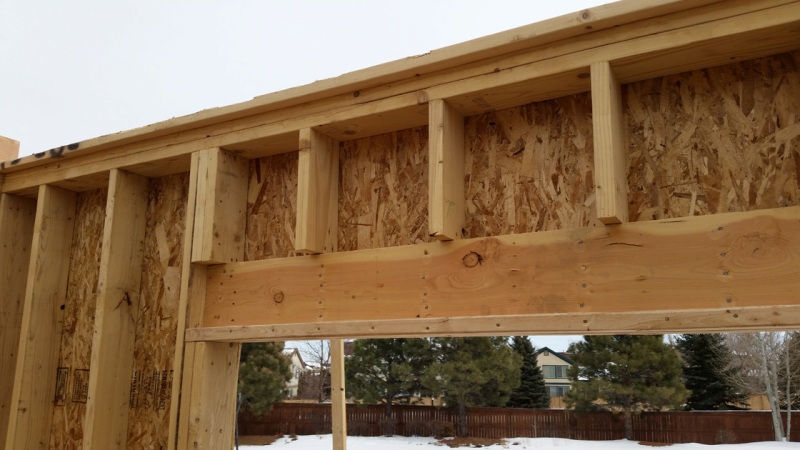

  Headers are open for insulation
•

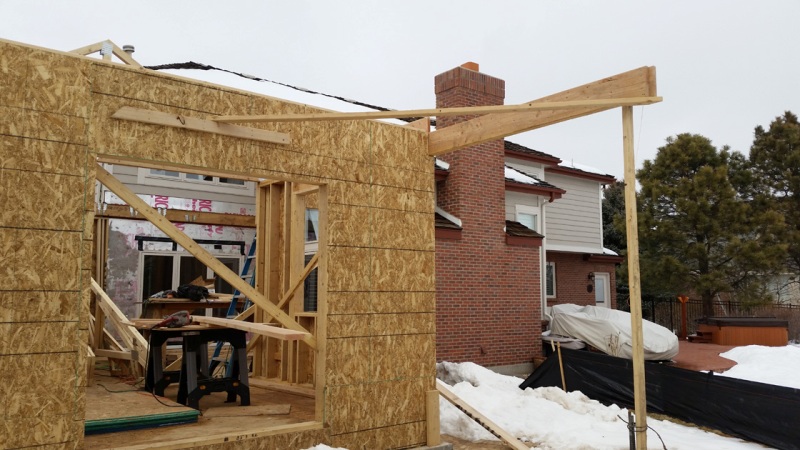

  Braced porch beam
•

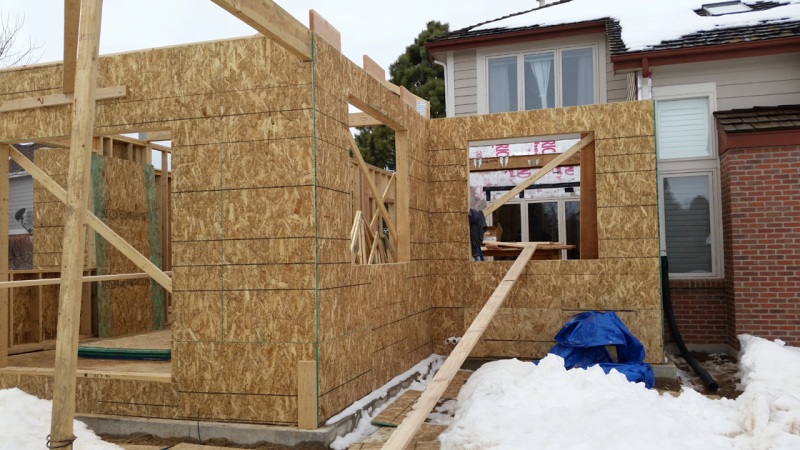

  Sheathed south walls
•

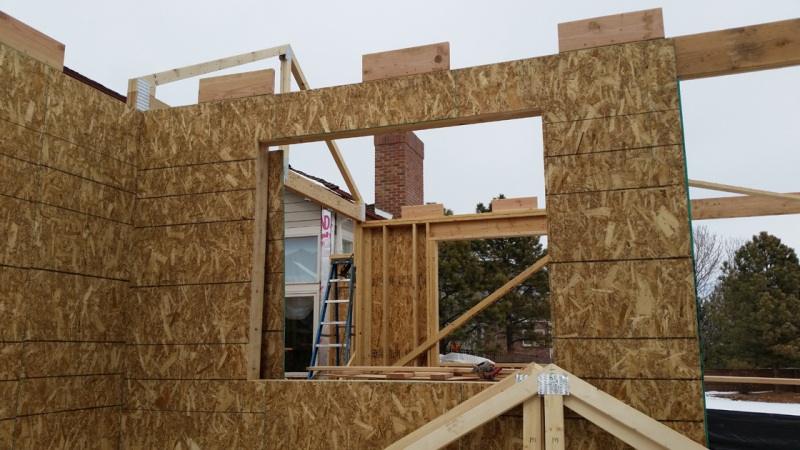

  Sheathed west walls
•

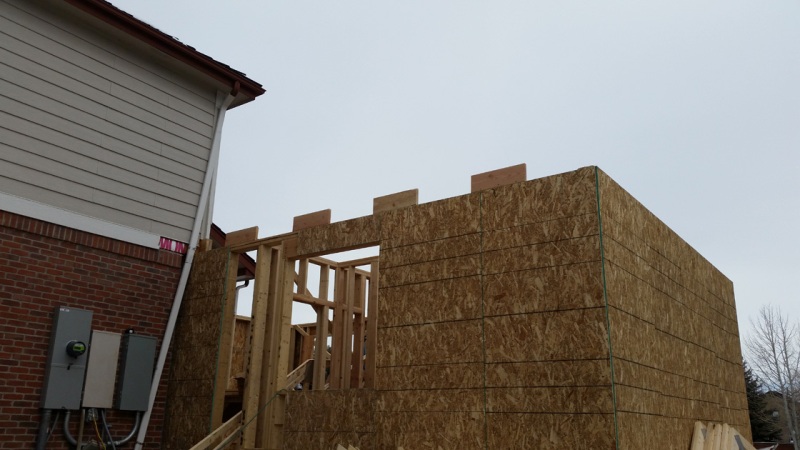

  Sheathed north walls
•

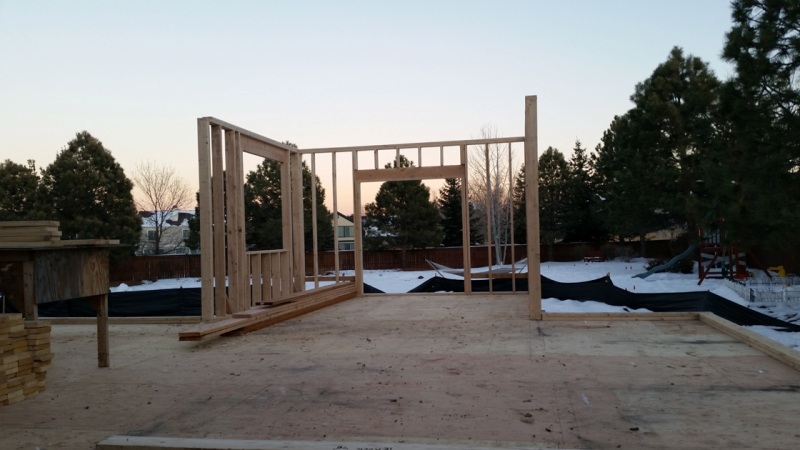

  First walls
•

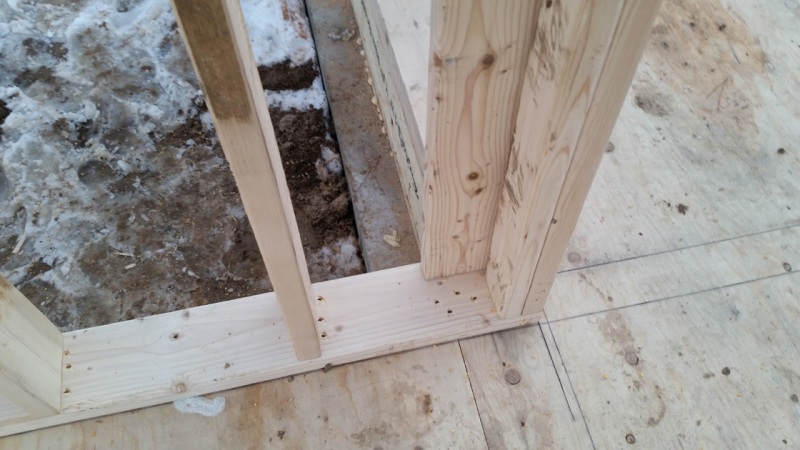

  We frame open corners if possible
•
  Plates for exterior walls
•

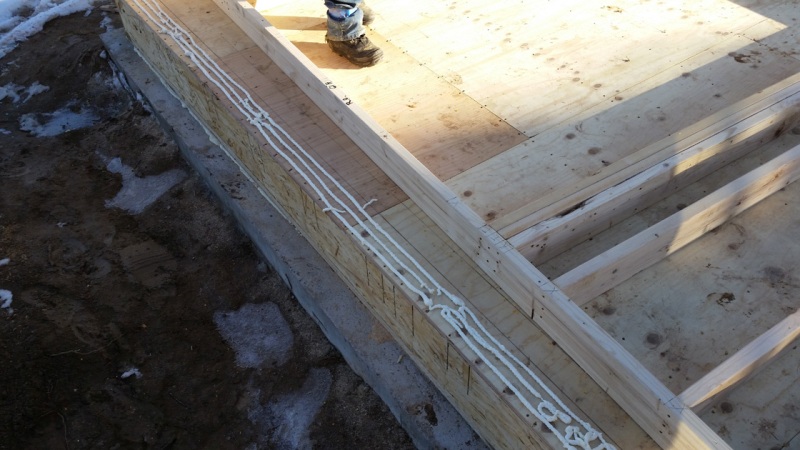

  Exterior walls are installed on top of foam
•
  New concrete curb around crawlspace access
•
  New LVL header over crawlspace access
•
  Joists are braced before sheathing
•
  LSL rim is used
•

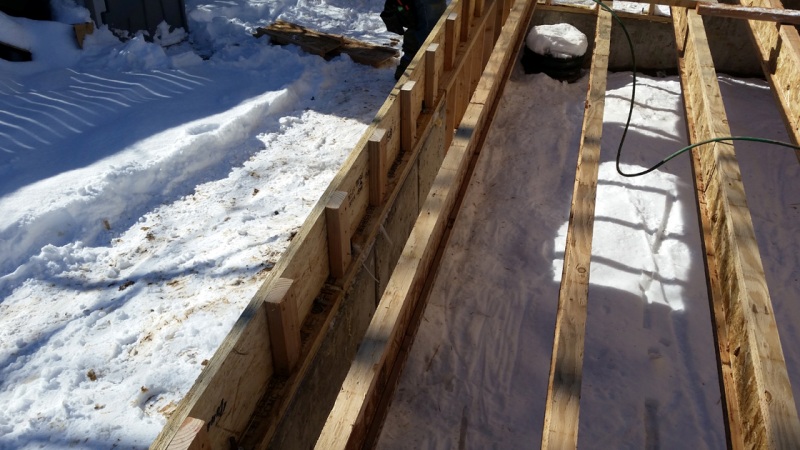

  Parallel rim is reinforced with blocks
•

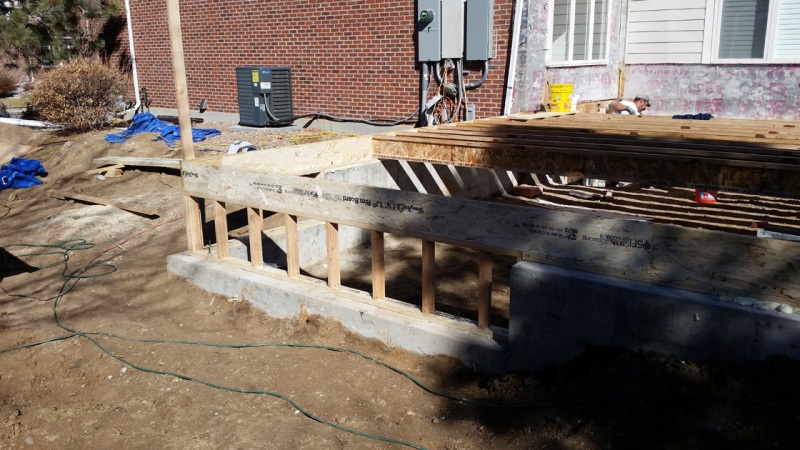

  Foundation steps down
•

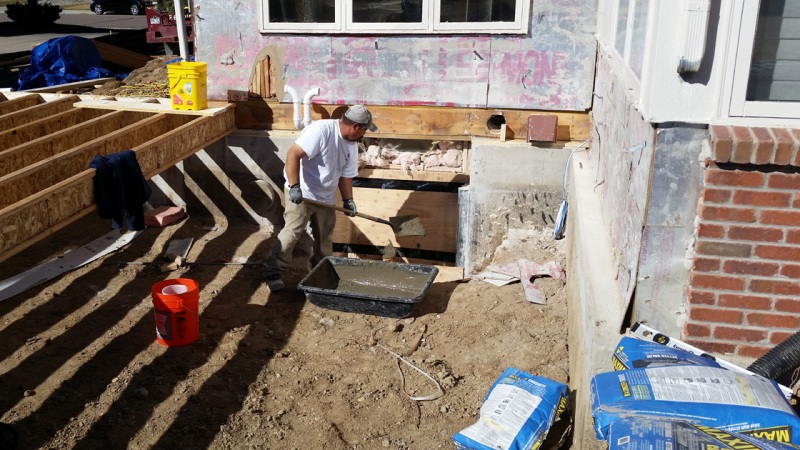

  Carlos mixed concrete to block old window
•

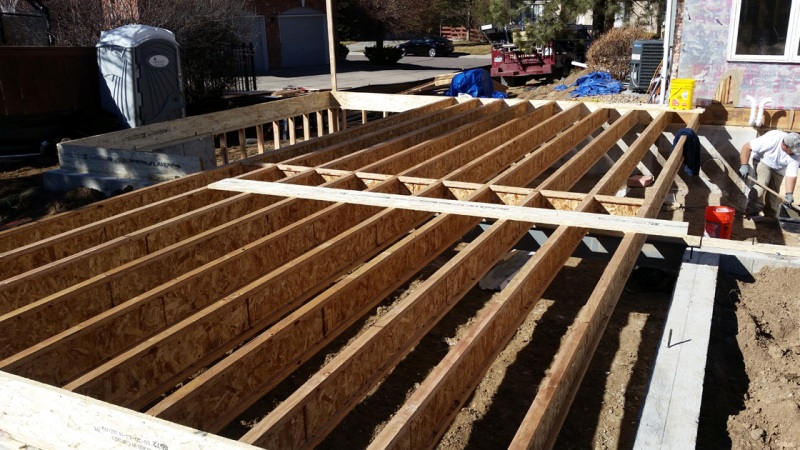

  Floor joists are installed
•
  Sill plates are installed over spray foam
•

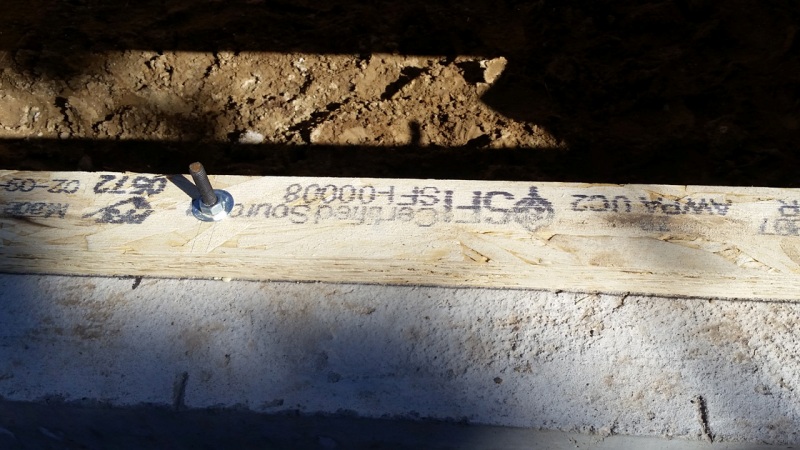

  TimberStrand sill plates
•

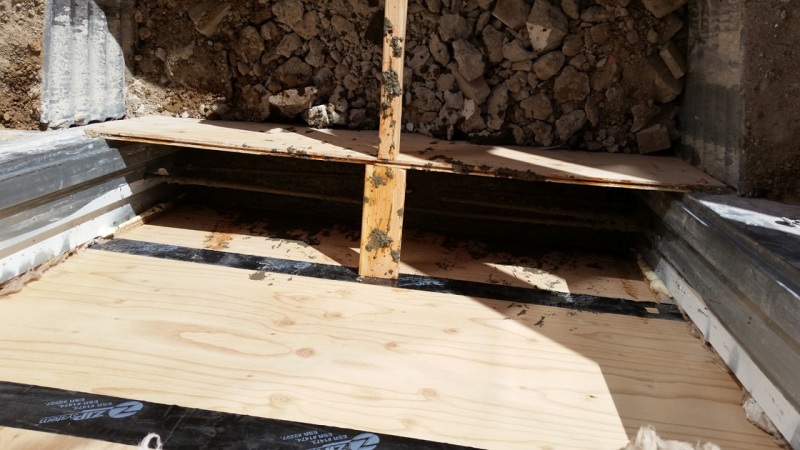

  Old window will be blocked with concrete wall
•

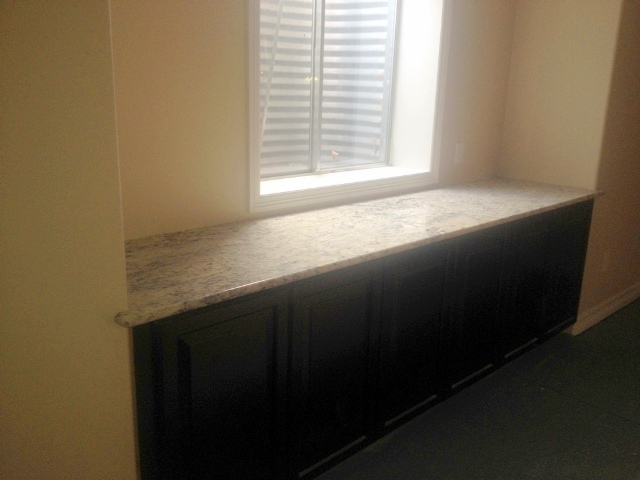

  Granite countertop on new cabinets in TV room
•

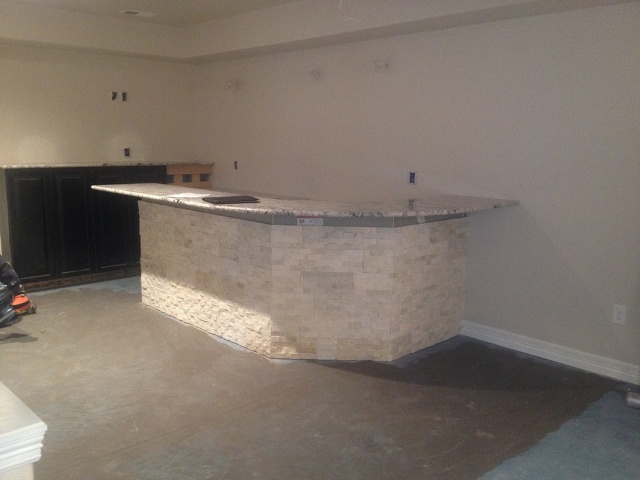

  Granite countertop installed
•

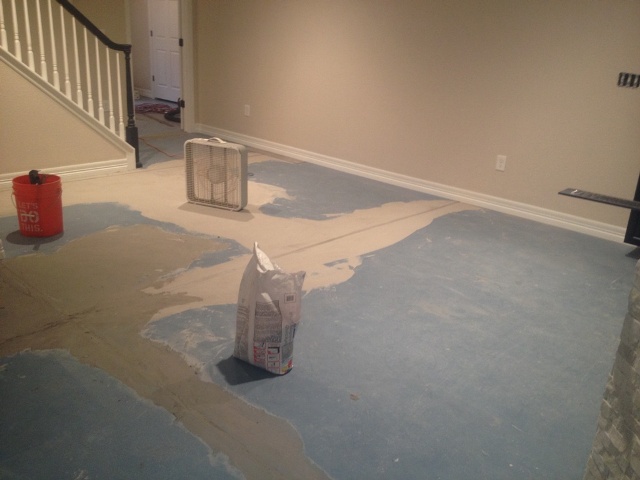

  Prepping floor for vinyl flooring
•

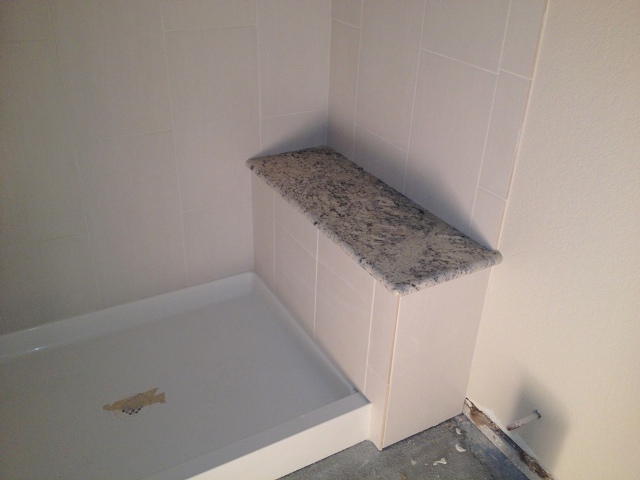

  Granite seat in new shower
•

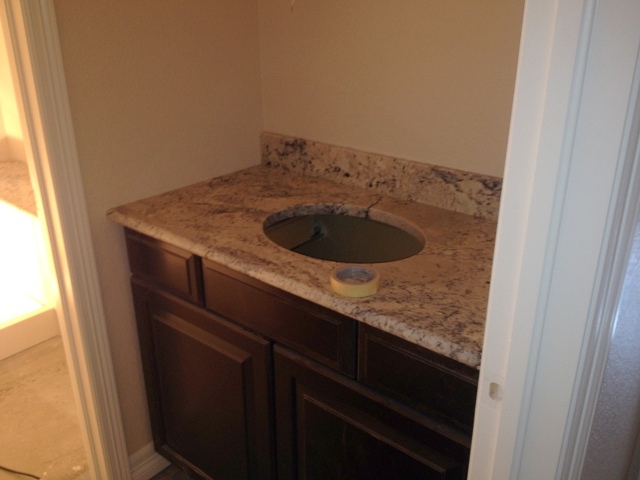

  Granite top installed in bathroom
•

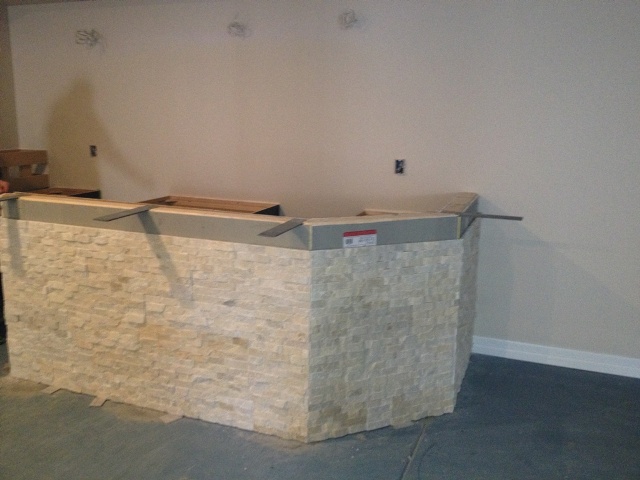

  Installing stone of face of bar
•

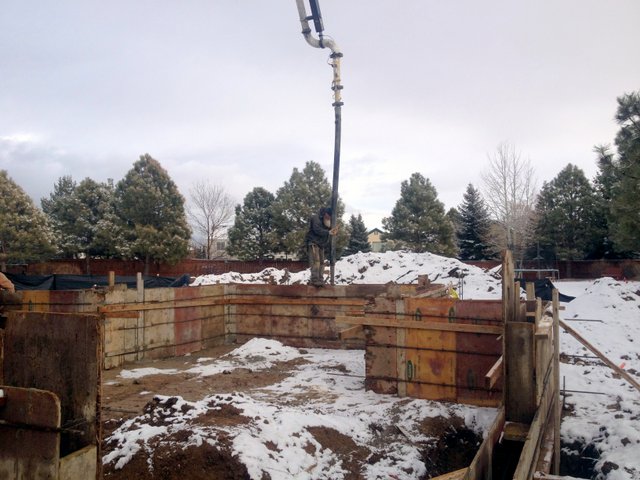

  Placing concrete in forms
•
  Placing concrete in forms
•

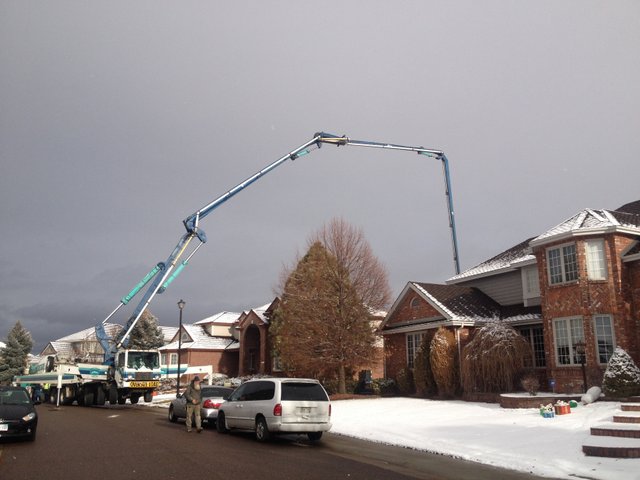

  Pumping concrete over the house
•

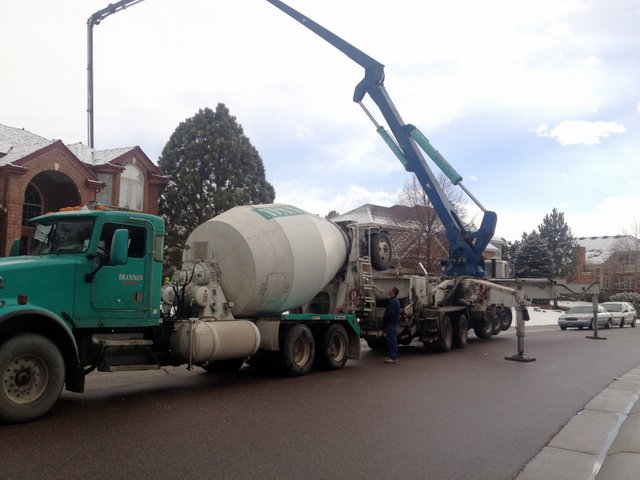

  Concrete placed in pump
•

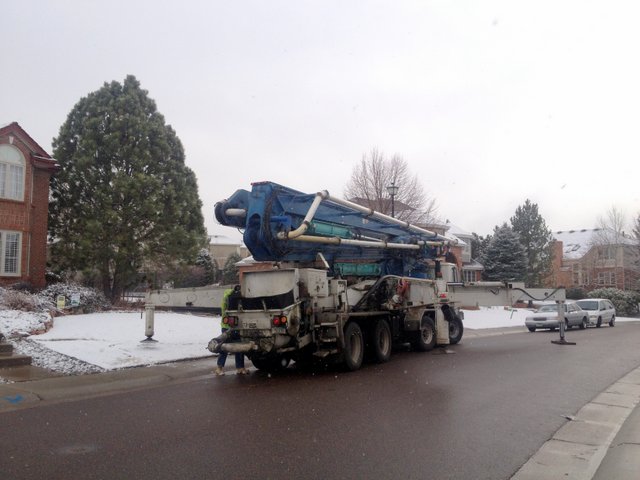

  Concrete pump to place concrete in walls
•

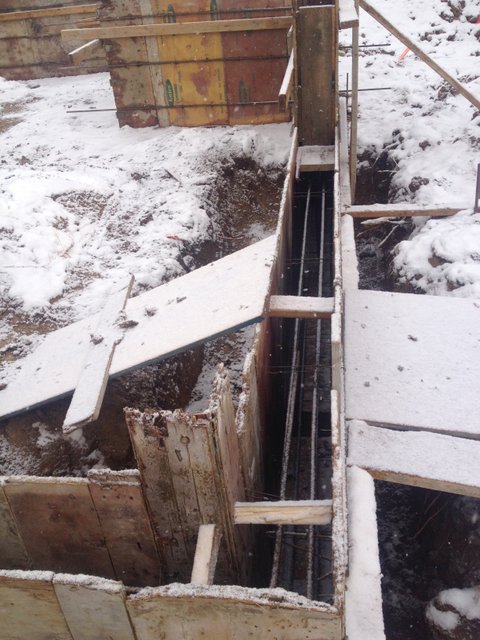

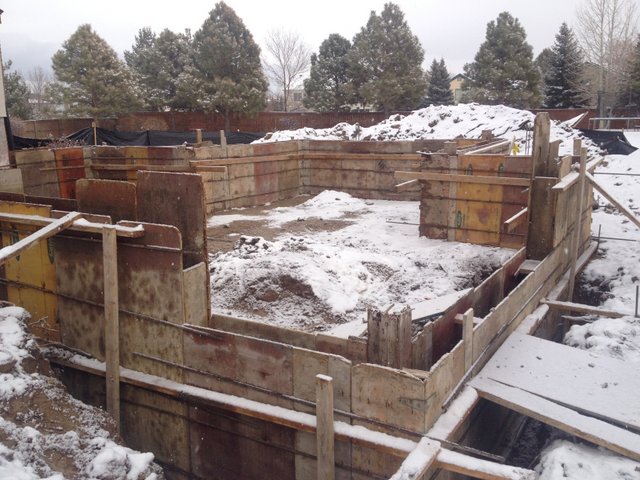

  Forms prior to concrete placement
•
  Forms prior to concrete placement
•

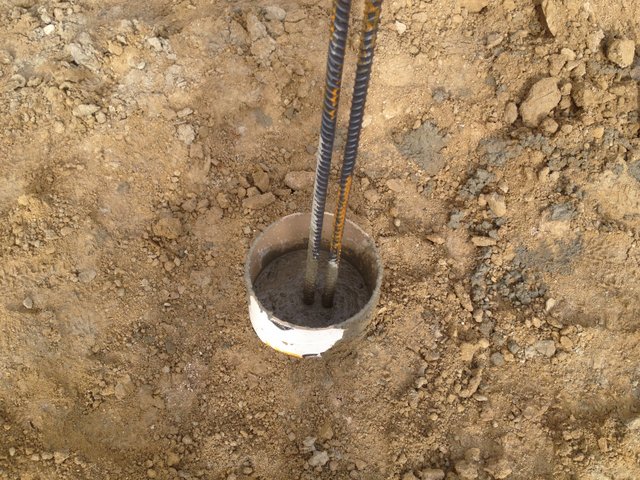

  New caisson
•

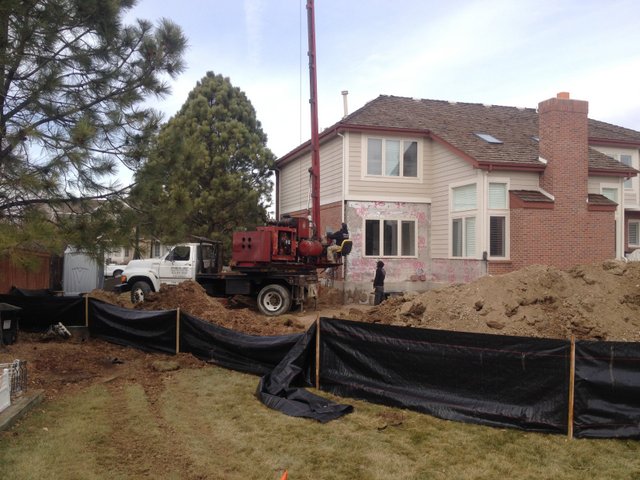

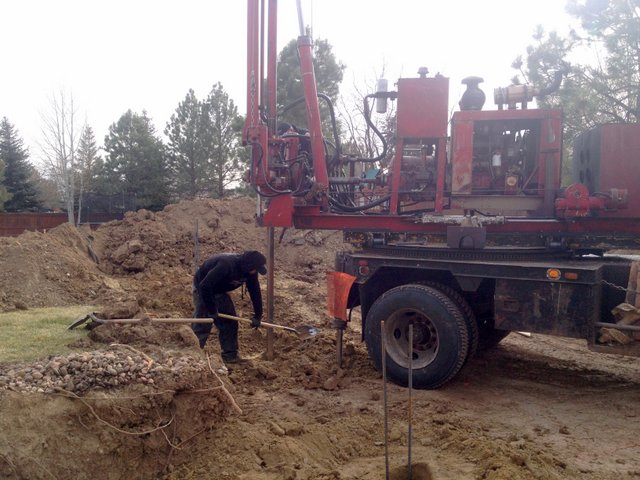

  Drilling caissons for addition
•
  Drilling caissons for addition
•

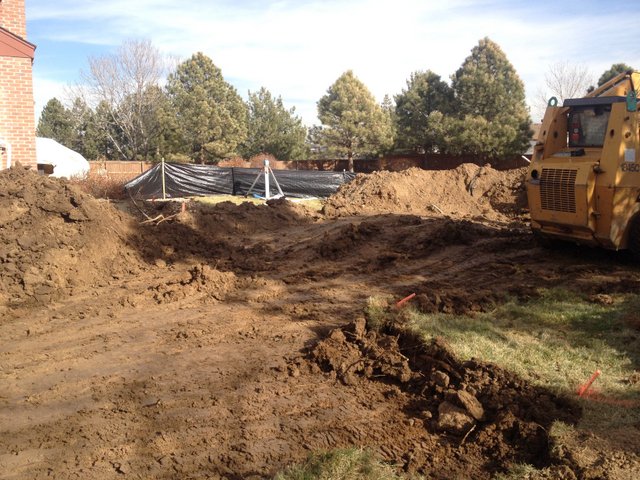

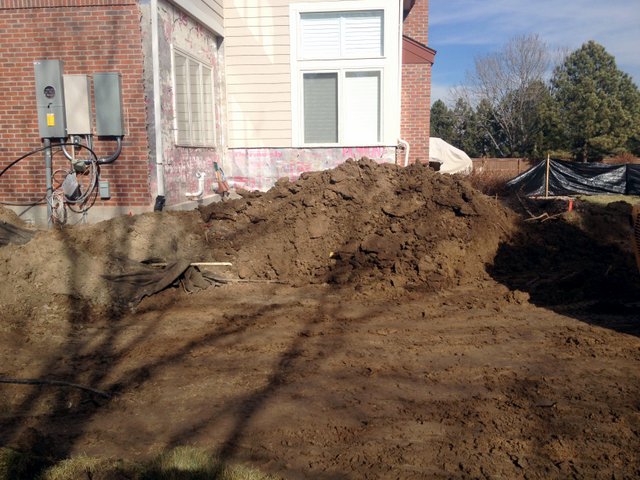

  Foundation excavation
•
  Foundation excavation
•

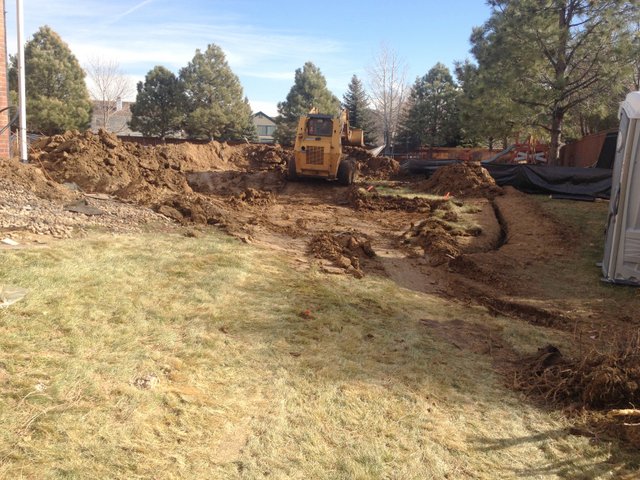

  Beginning foundation excavation
•

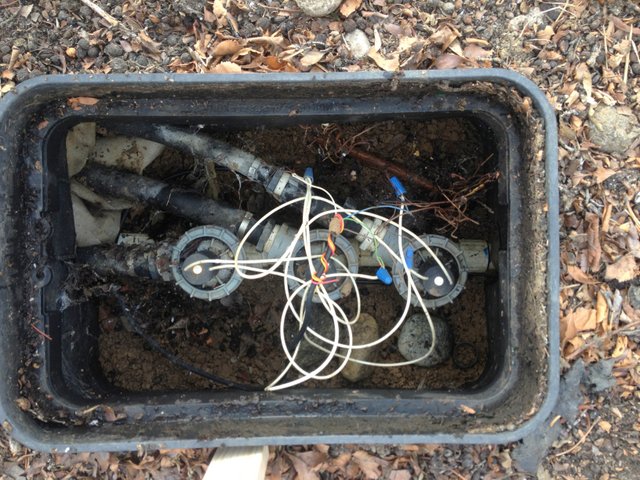

  Sprinkler system valve box to be relocated
•

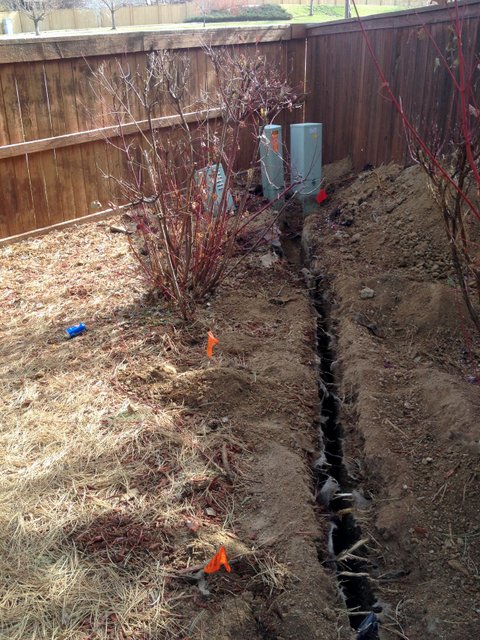

  Trench at rear of lot
•

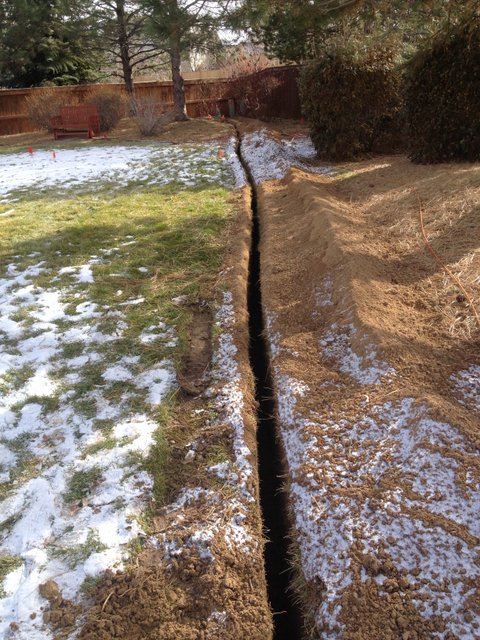

  Trench for lateral relocate
•

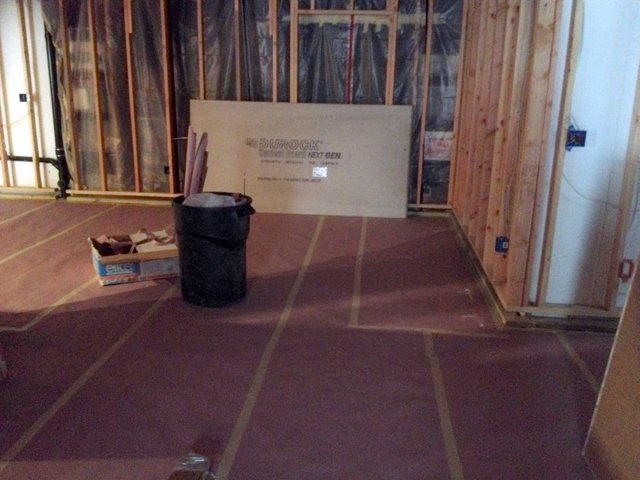

  Durock for bath walls
•

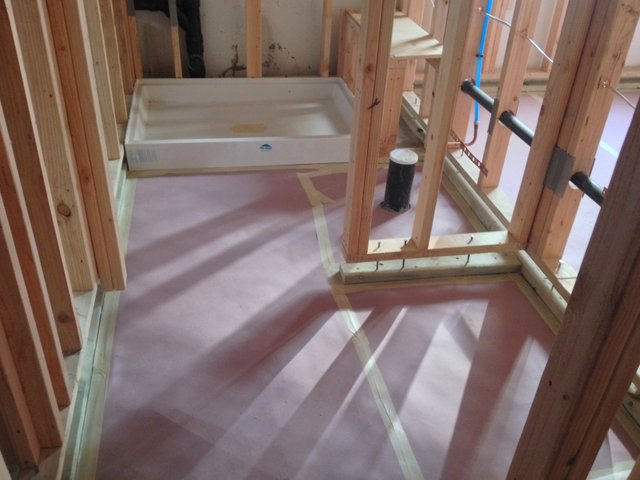

  Basement bath floor protected
•

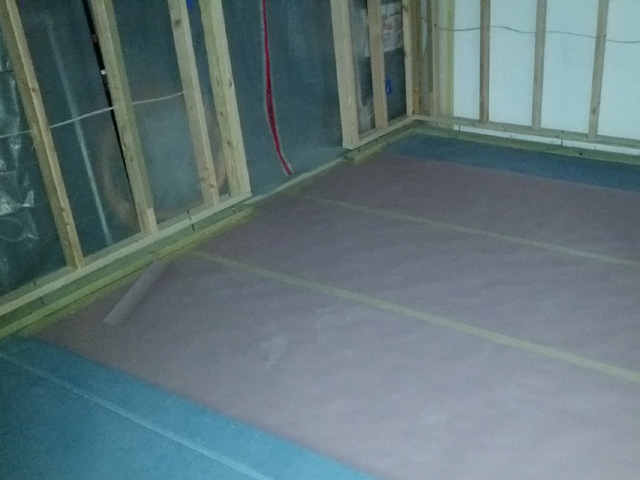

  Floor is protected before drywall
•

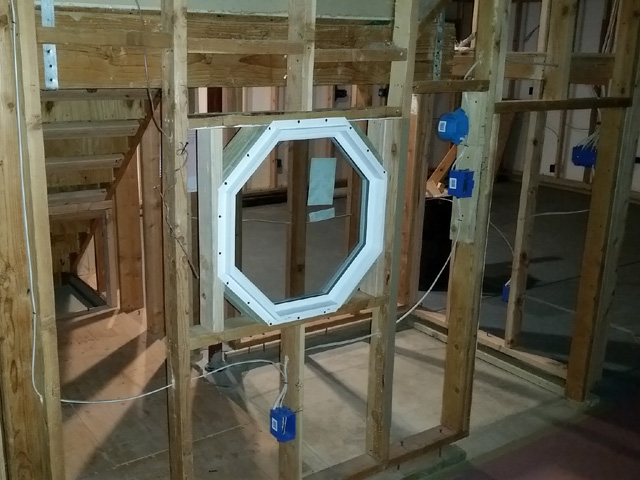

  Window at kids' area
•

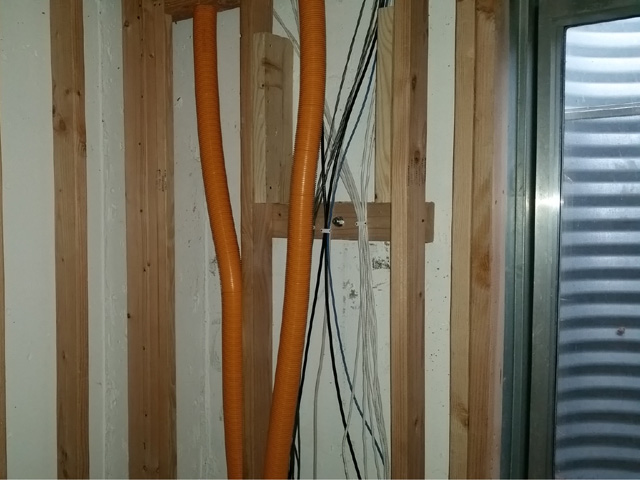

  Low voltage wiring
•

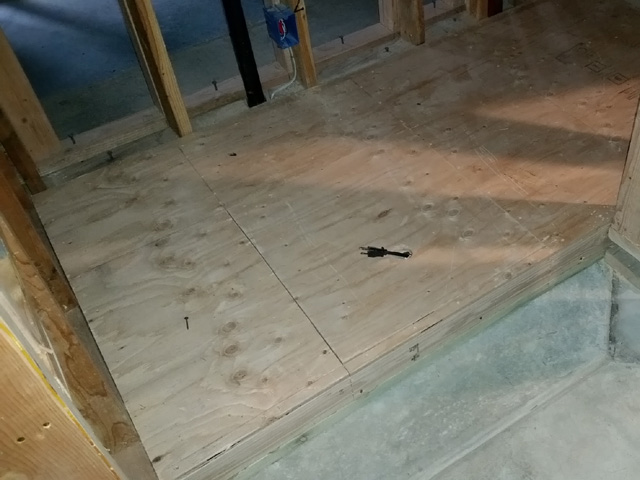

  Framed floor above sump pit
•

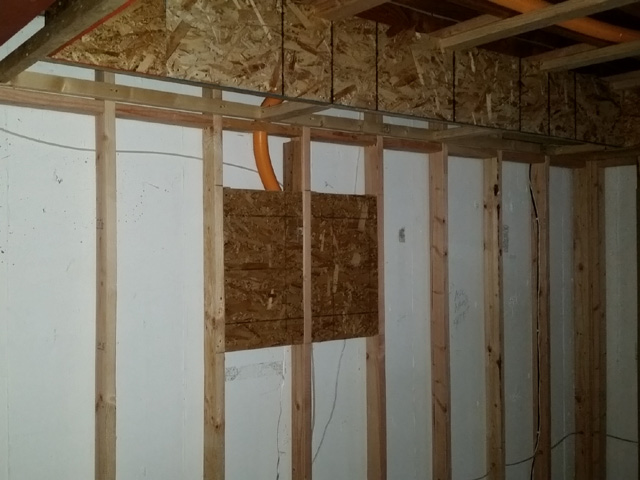

  Blocking in bar area
•

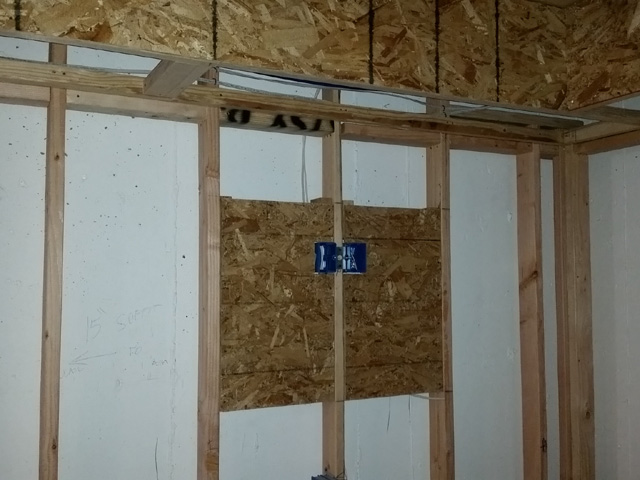

  Blocking for TV mount
•

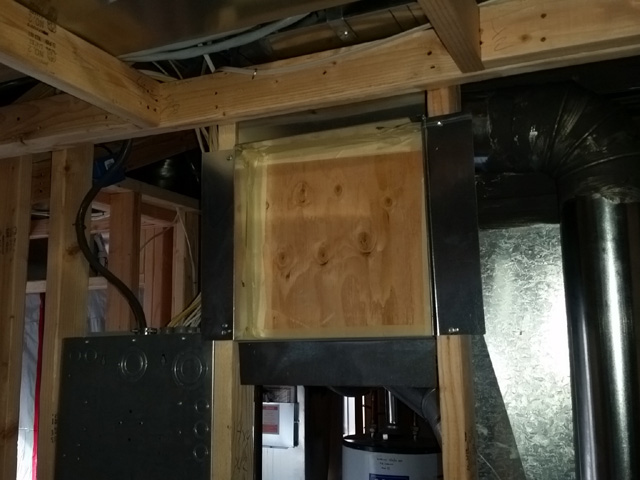

  Cold air return is protected from dust
•

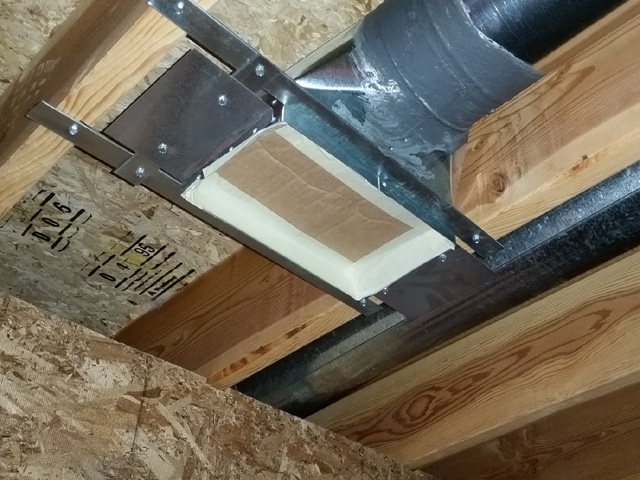

  Registers are protected from dust
•

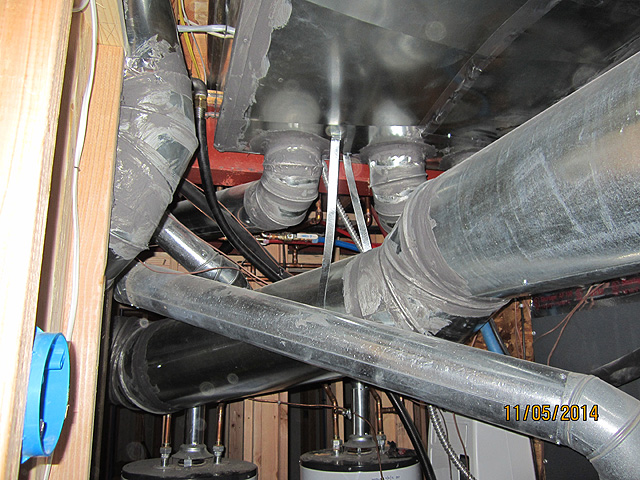

  Mastic applied to ducts for better air flow
•

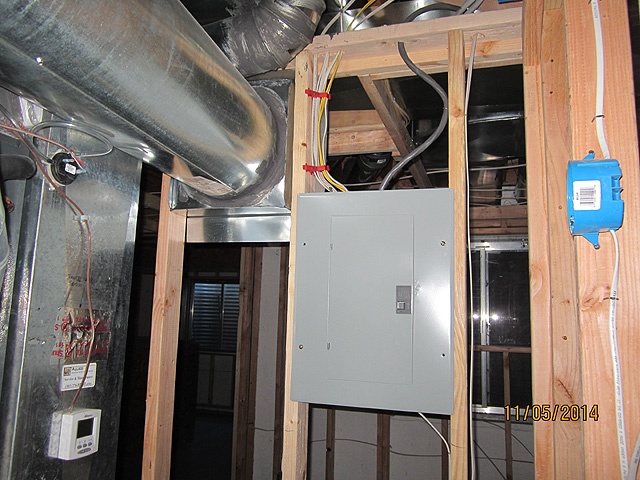

  New breaker panel in mechanical room
•
  Can lights above bar
•

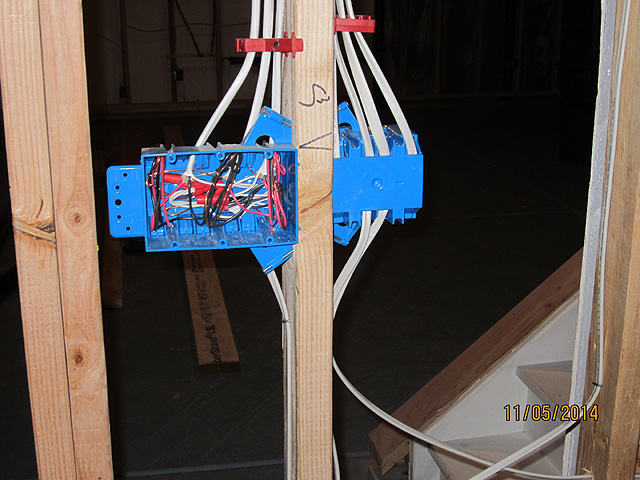

  Electricians installed boxes
•
  Relocated water heaters
•

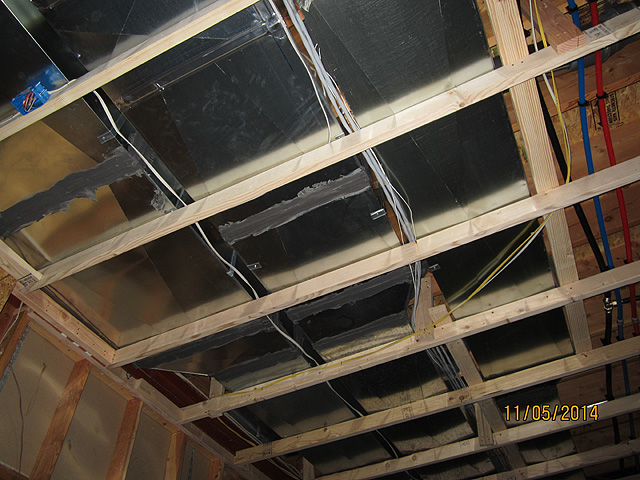

  Dropped ceiling under ducts
•

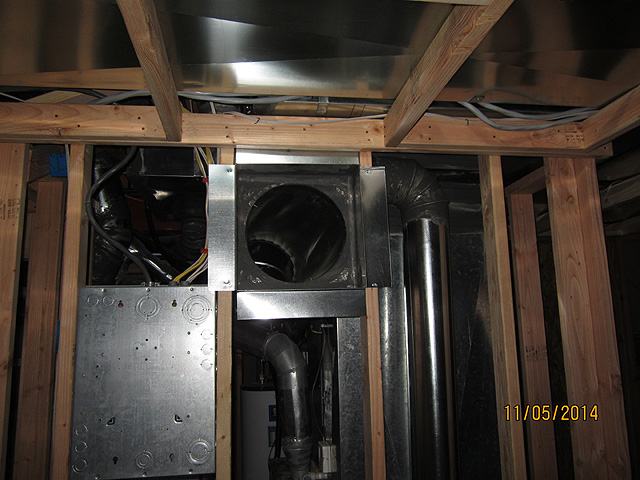

  Cold air return for basement
•

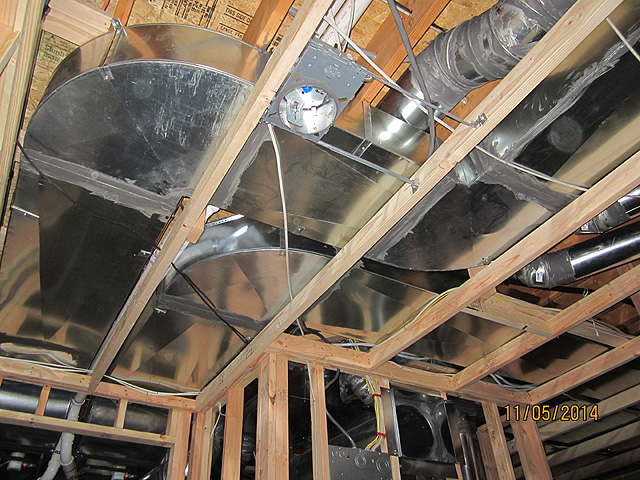

  New ducts
•
  A second furnace is installed
•

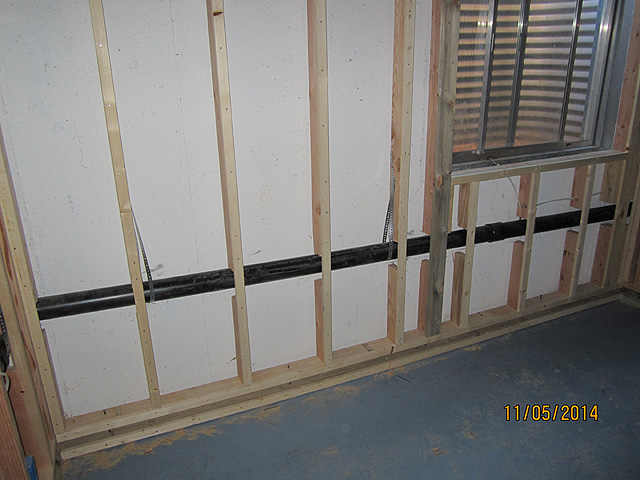

  Chase was created for addition to sewer line
•

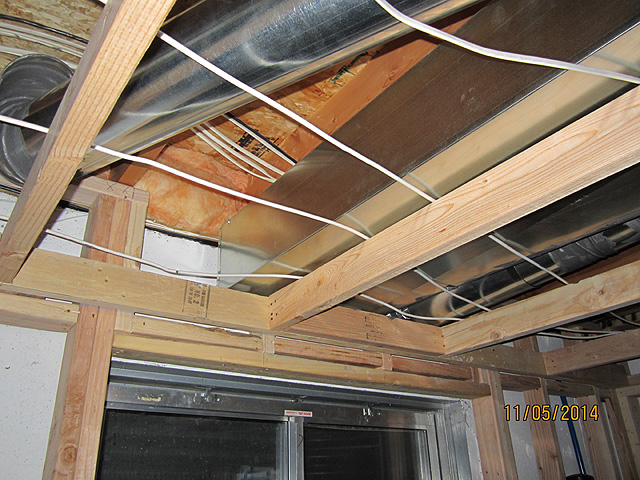

  Ducts for future addition
•

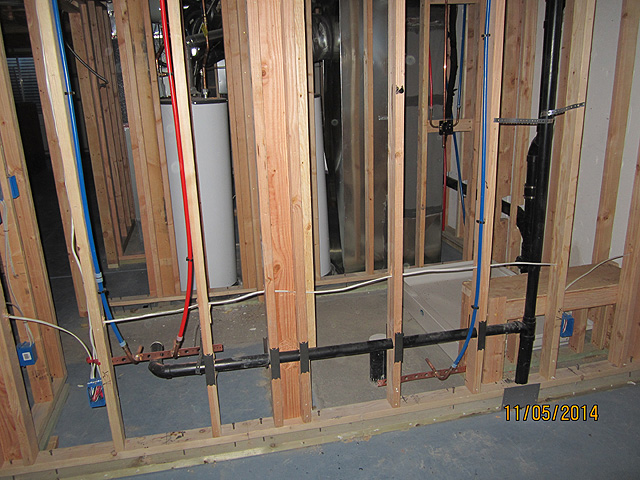

  Plumbing wall
•

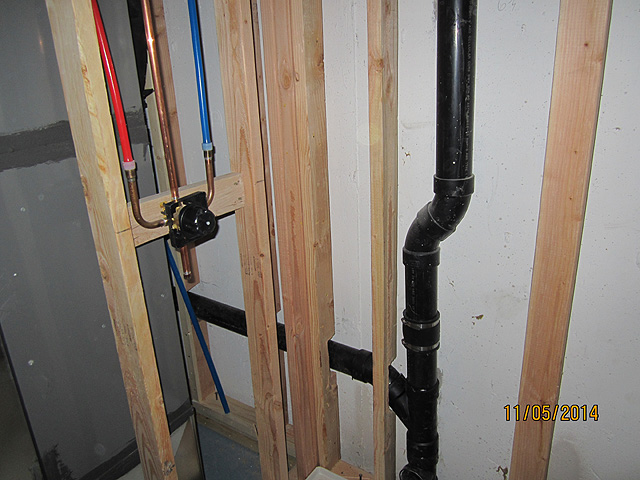

  Shower valve is installed
•

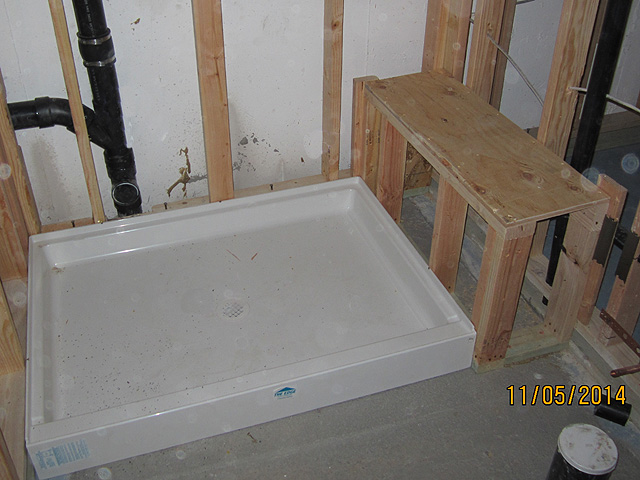

  Shower pan is installed
•

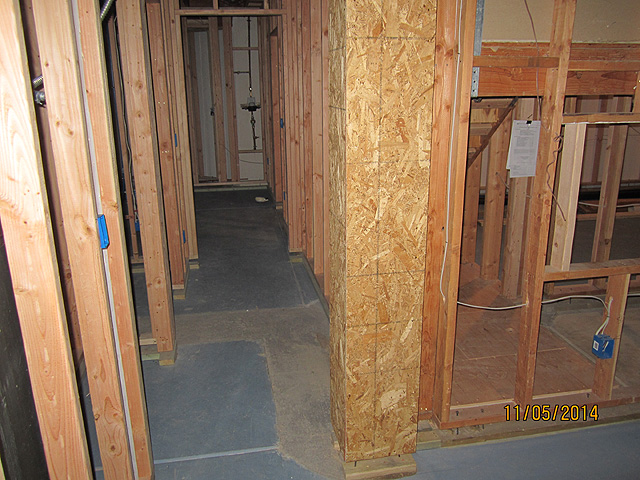

  Hallway and box column
•
  Kids' area has little loft
•
  Special area for kids
•
  Can lights are installed
•

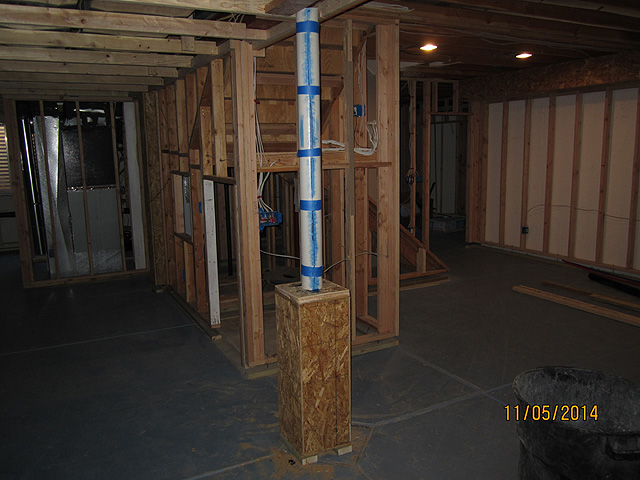

  Steel column wrapped with PVC
•

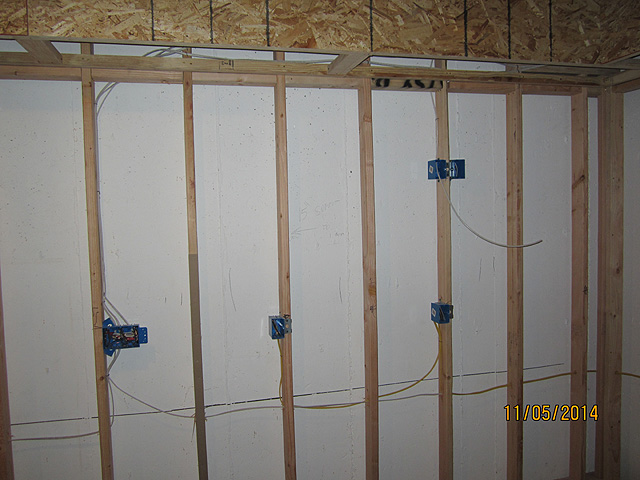

  Electric boxes in bar area
•

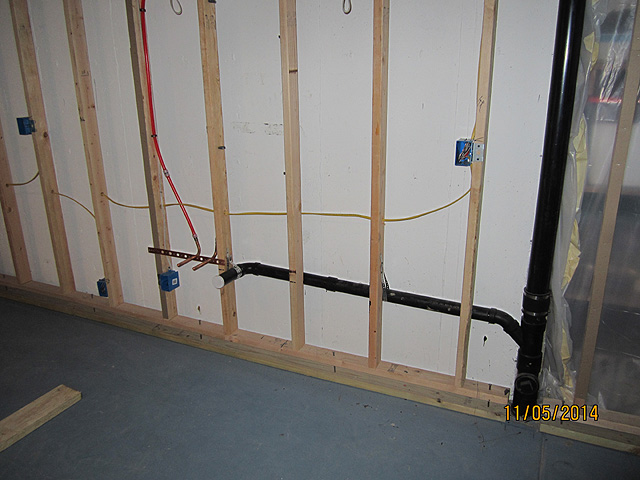

  Plumbing for bar
•

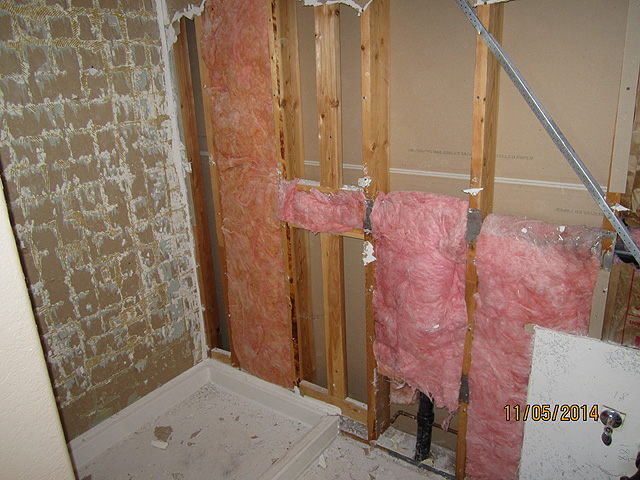

  Demolition of upper bathroom
•

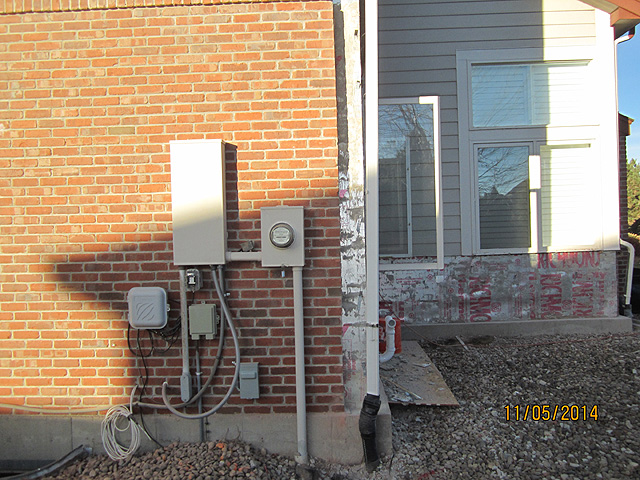

  Bricks were cut with grinder
•

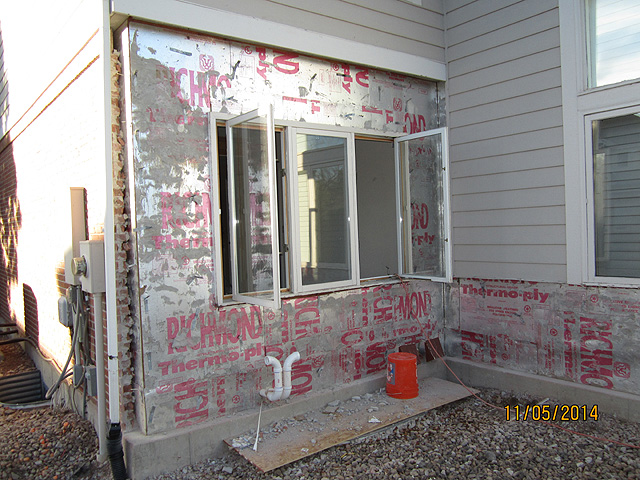

  Bricks removed for addition
•

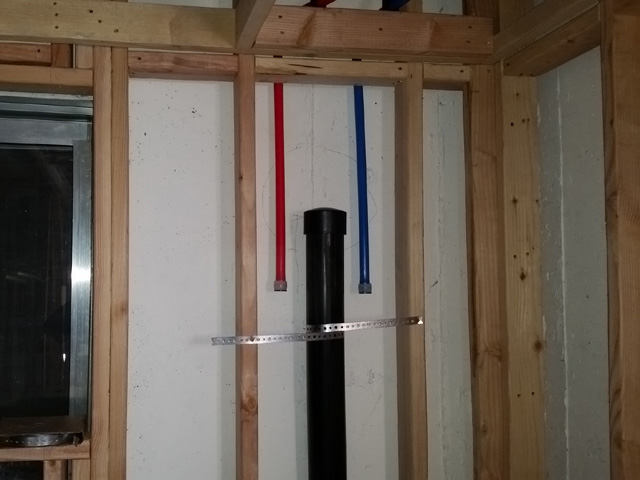

  Sewer & water connections for addition
•

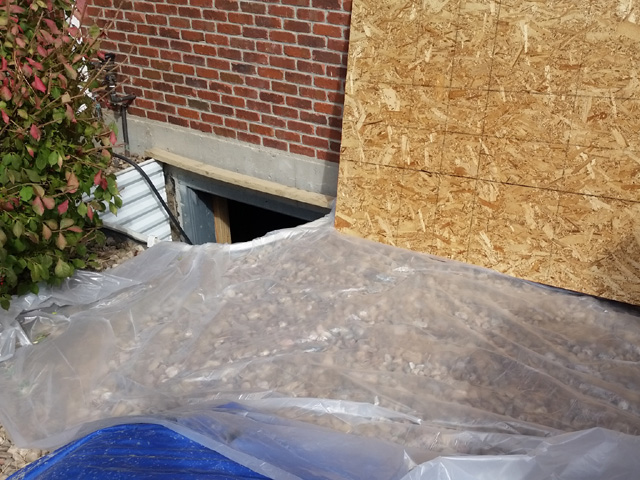

  Gravel protected for concrete mixing
•

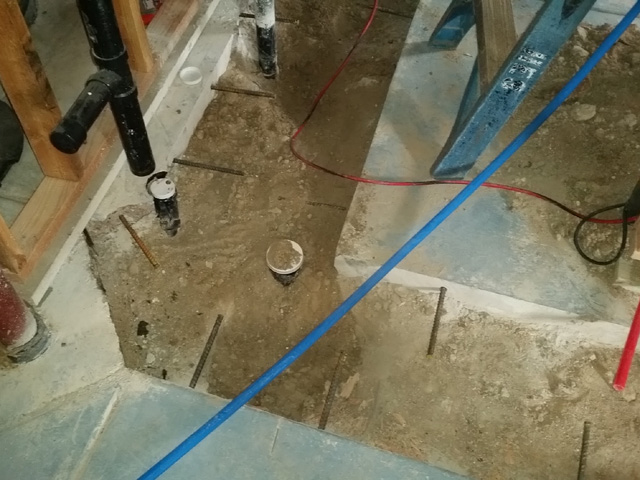

  Before new concrete placement
•
  Added steel reinforcement for new concrete
•
  Pex connections
•
  New water lines
•

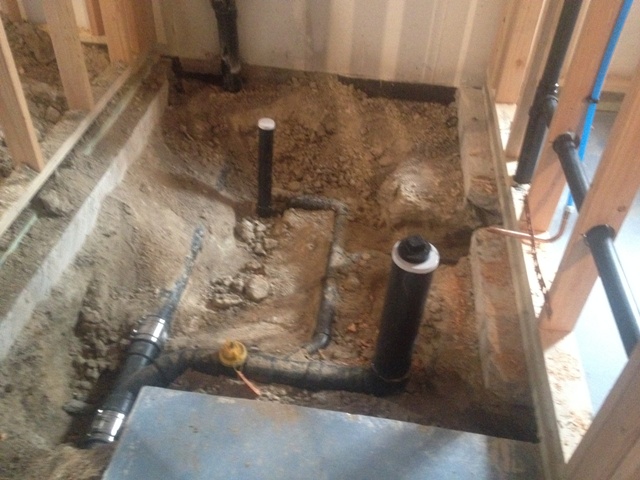

  New underground plumbing
•

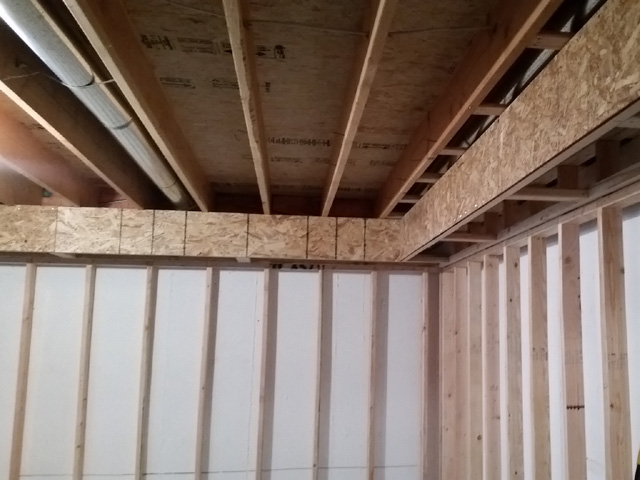

  Framed soffits above bar
•

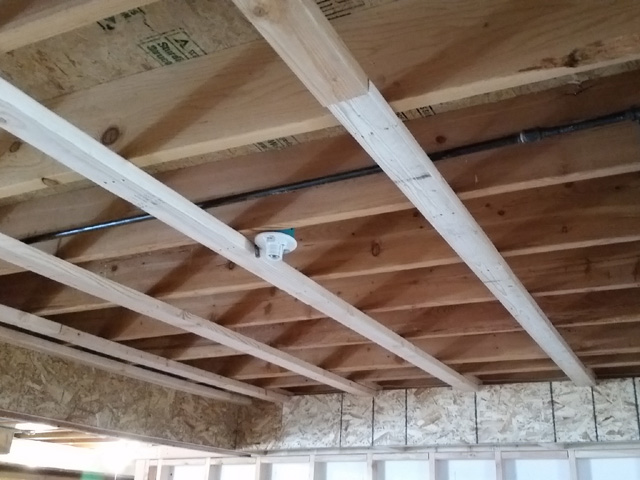

  Soffit framing with gas line above
•

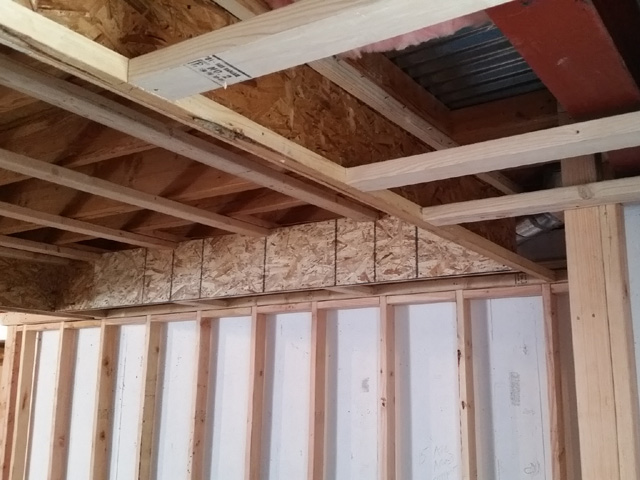

  Framed soffits in TV room
•

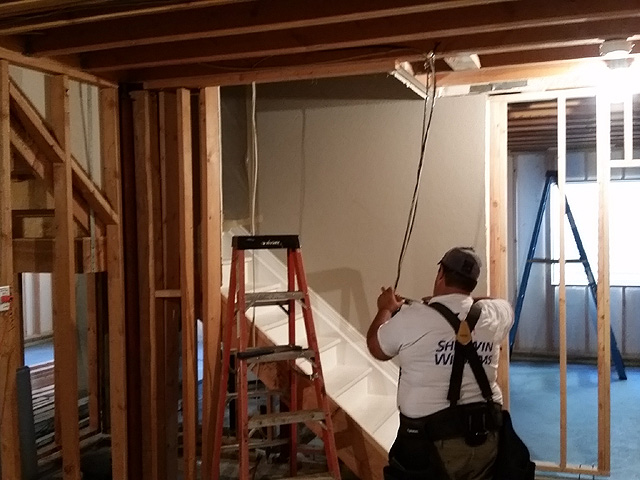

  Old stair wall is removed to open up view to basement
•

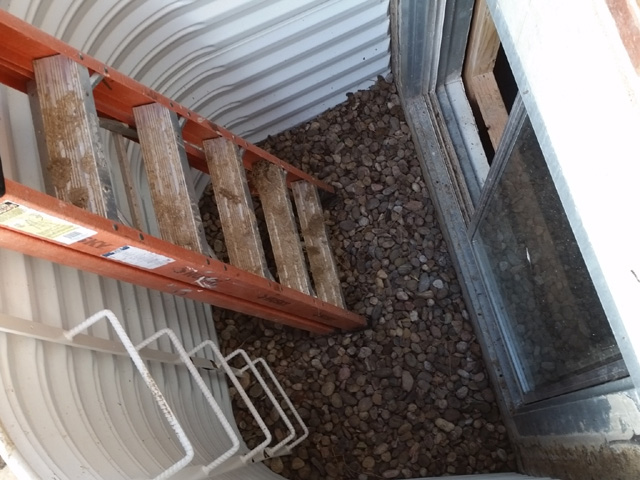

  Gravel at bottom of new window well
•

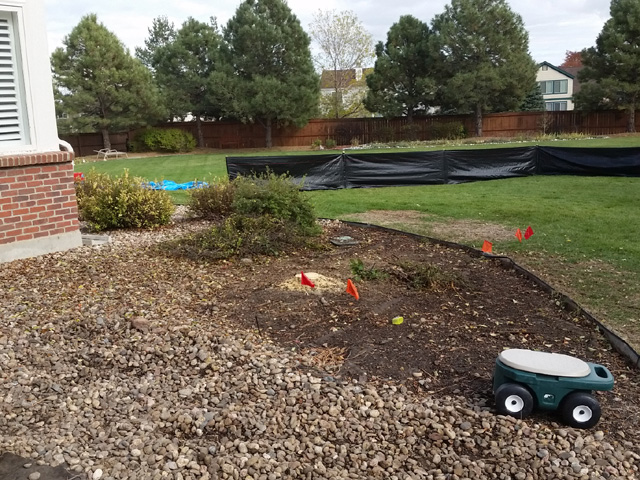

  A tree was removed
•

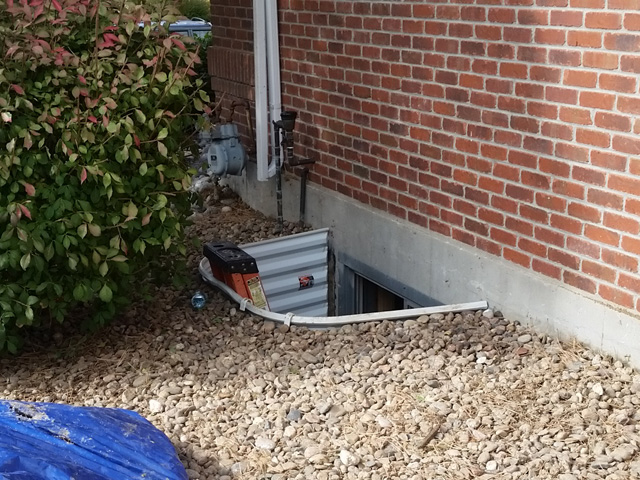

  New finished window well
•

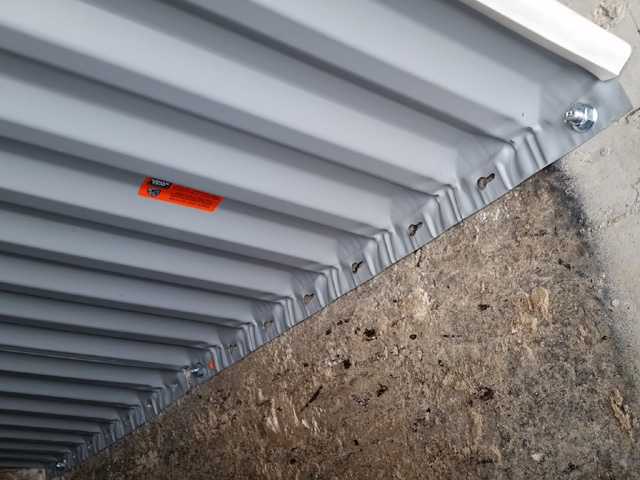

  New window well is bolted to foundation wall
•
  Carlos preparing to replace window well
•

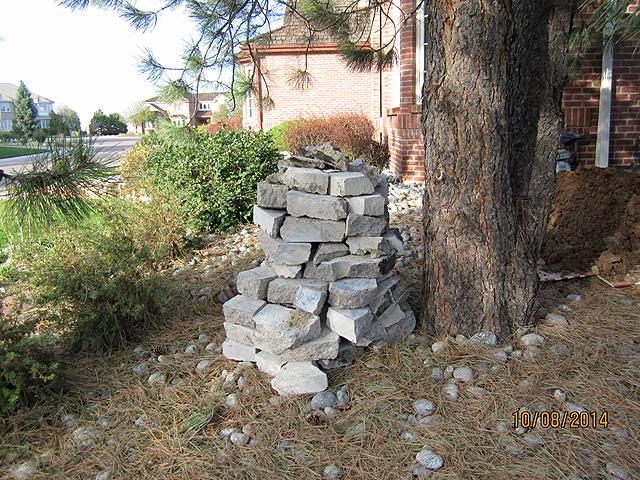

  Concrete slab pieces are moved out
•

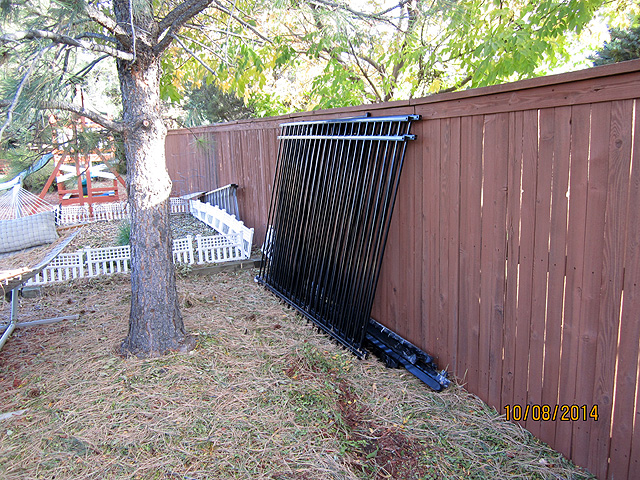

  Fence is removed and stored
•
  Fence, rocks, & footings are removed
•

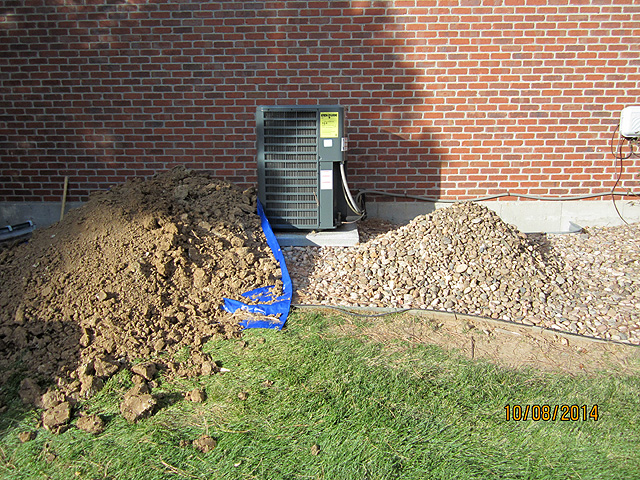

  Rocks and dirt are kept separated
•

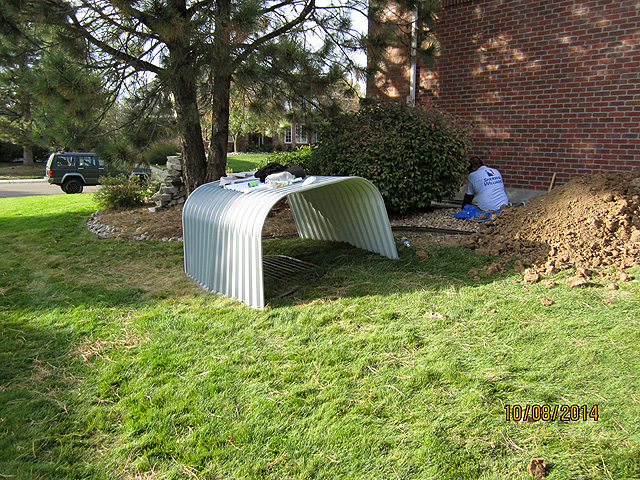

  New window well is delivered
•

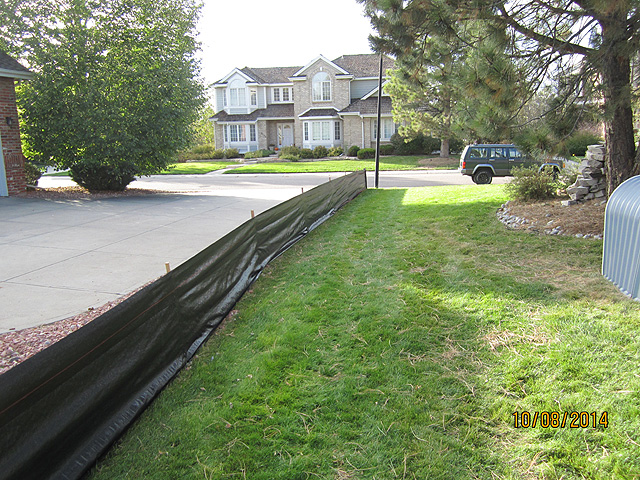

  Silt fence is in place for erosion control
•

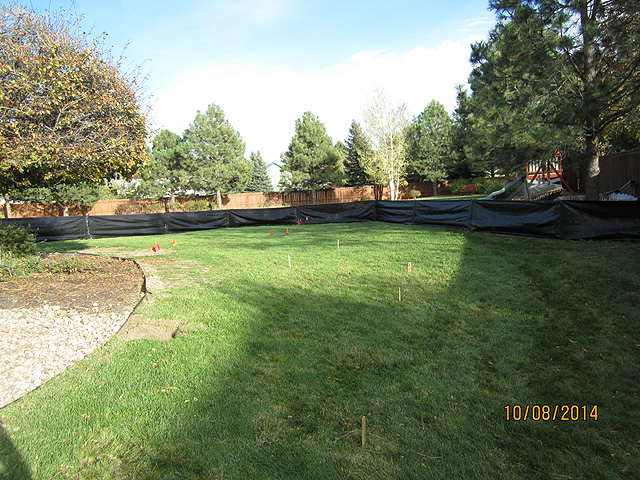

  Silt fence around addition site for erosion control
•

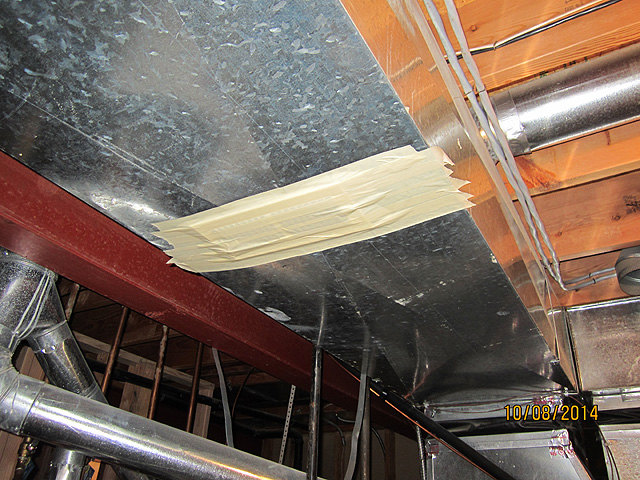

  Heat registers are taped
•

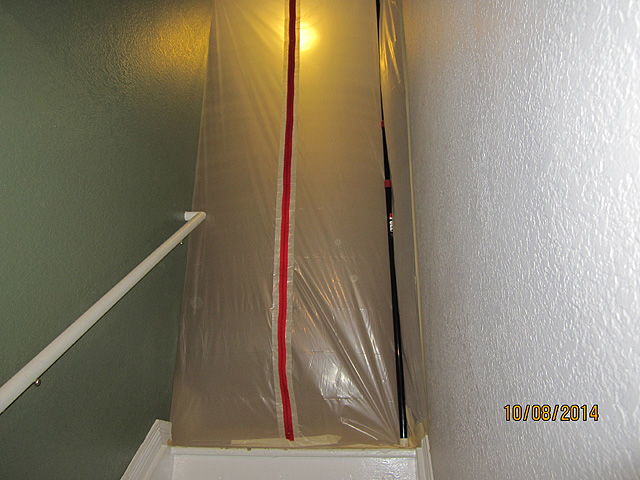

  Plastic Zip door at stair landing
•
  Future crawlspace access
•

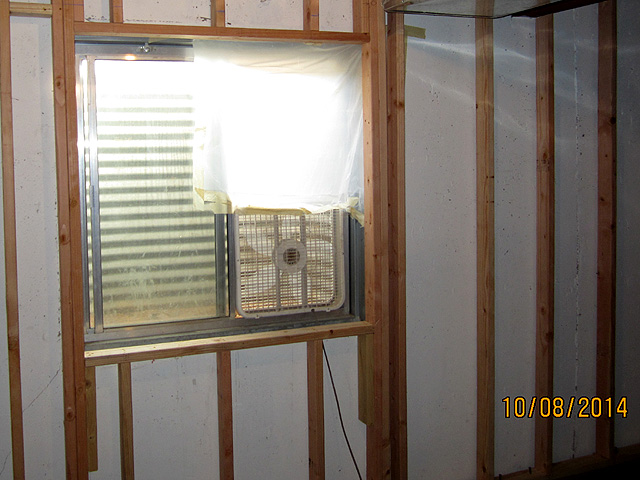

  Dust is ventilated out of basement
•
  Blocks for dropped soffits are in place
•

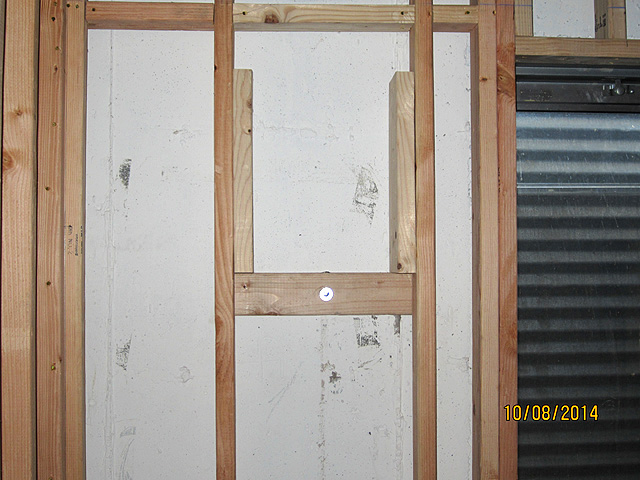

  This wall had to be hung on concrete anchors
•
  Top plates are nailed and screwed
•

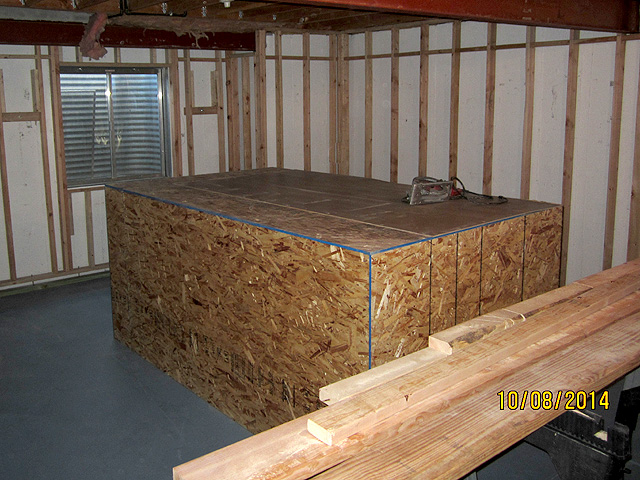

  A box was built to protect the pool table
•

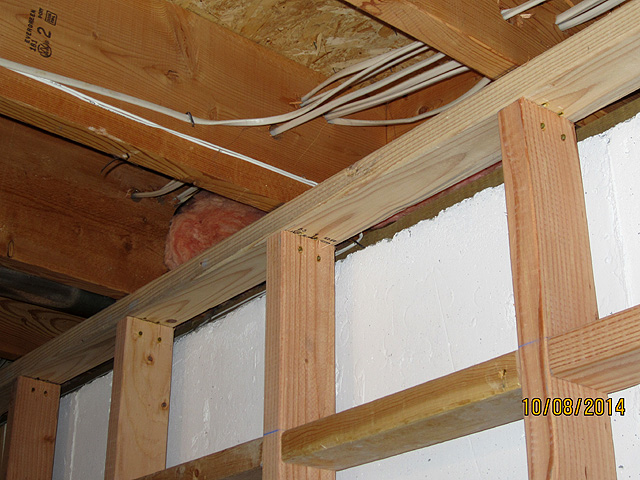

  Studs are extra toenailed
•

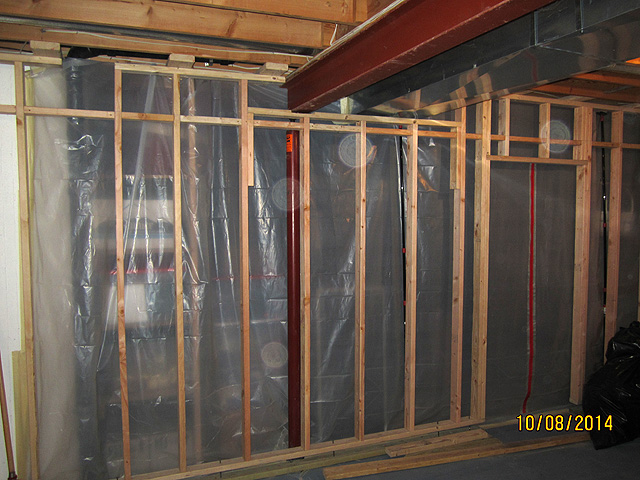

  Framed wall with plastic protection barrier in place
•

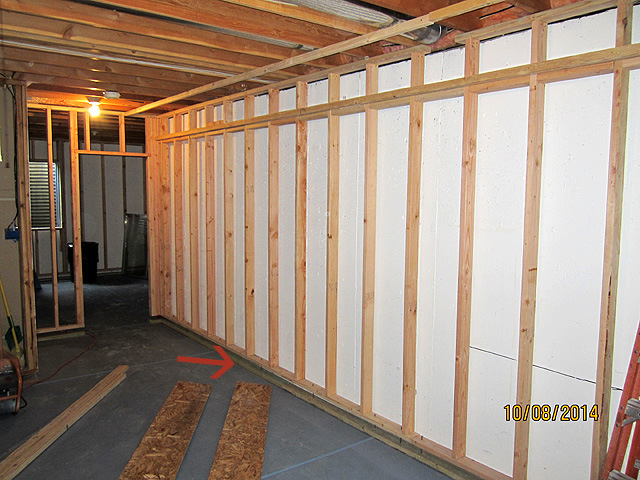

  Framed basement walls double plated with void, per soils report
•

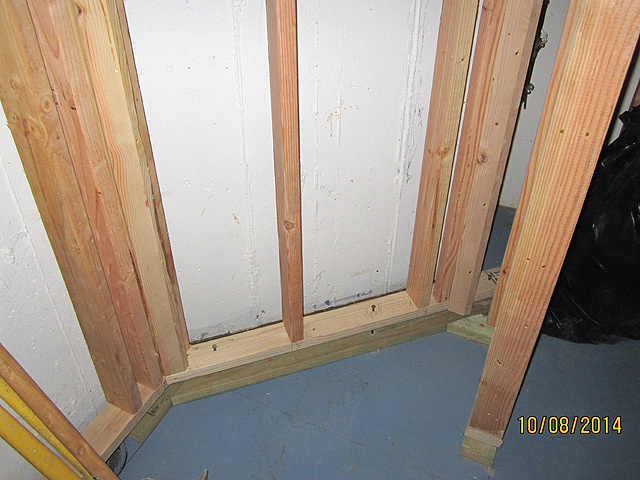

  Closet has 45 degree walls
•

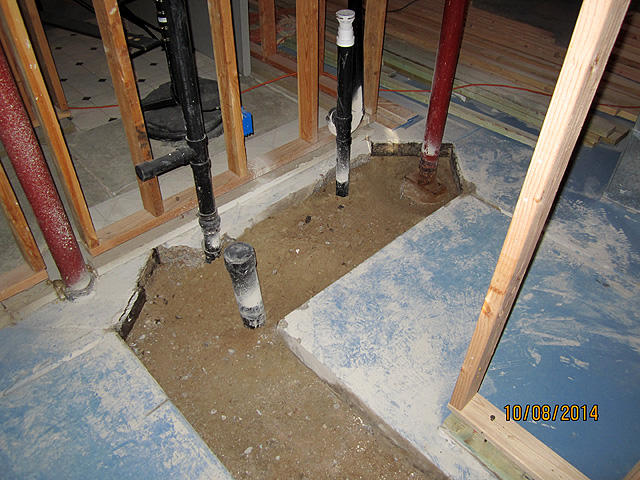

  Concrete slab is removed for new plumbing
•

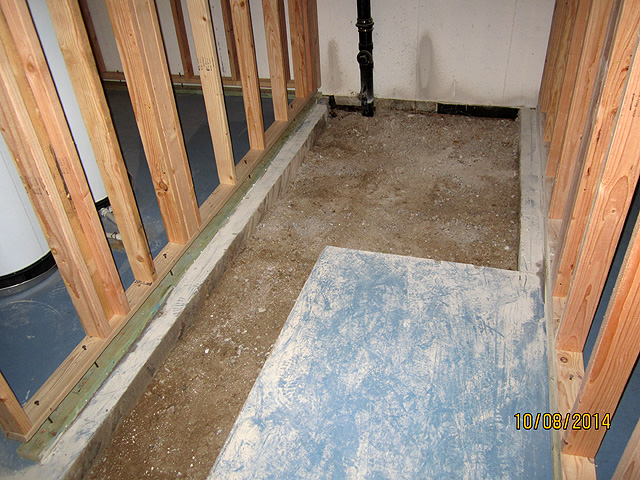

  Concrete slab is removed
•
  Exposed caisson for post adjustment
•

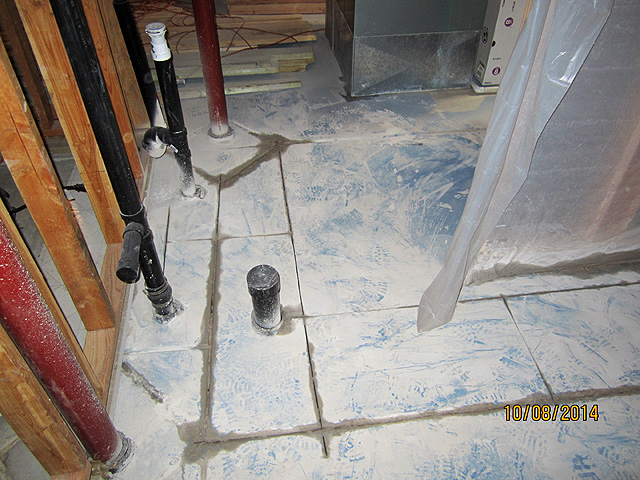

  Concrete slab is cut
•

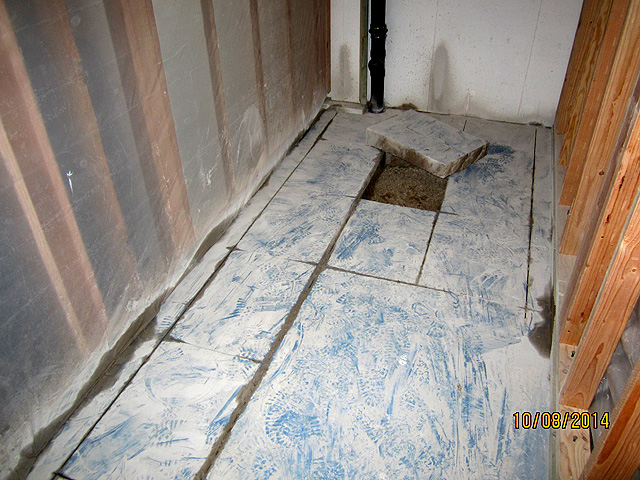

  Concrete slab is cut for new plumbing
•

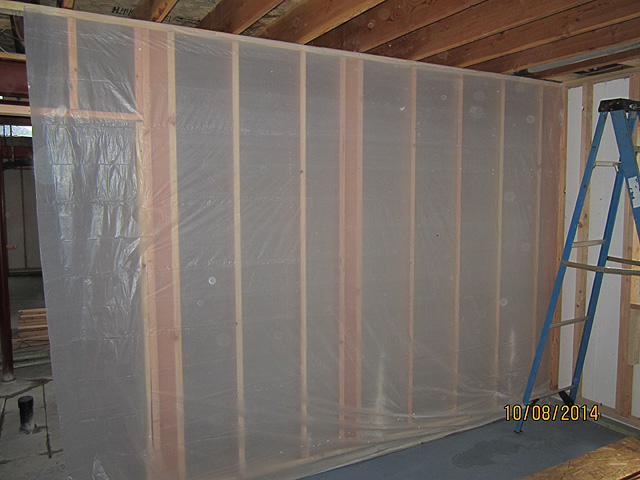

  Plastic protection barriers installed before concrete cutting work
•

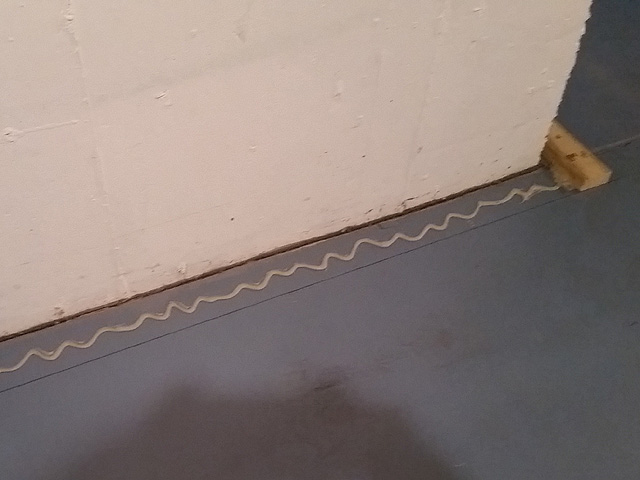

  Bottom plates are glued and nailed
•

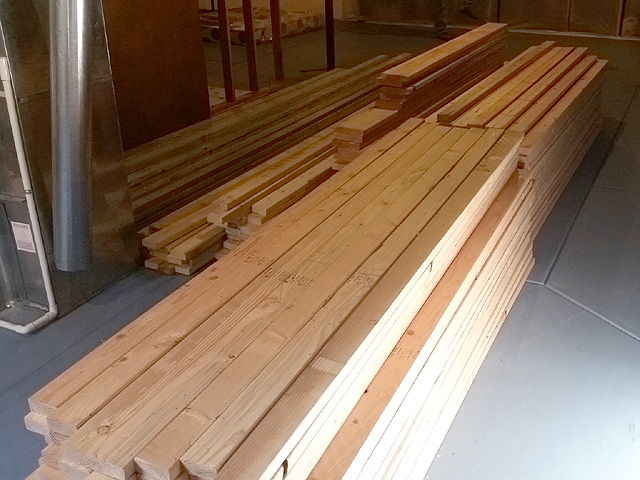

  Framing material stored in basement to protect it
•

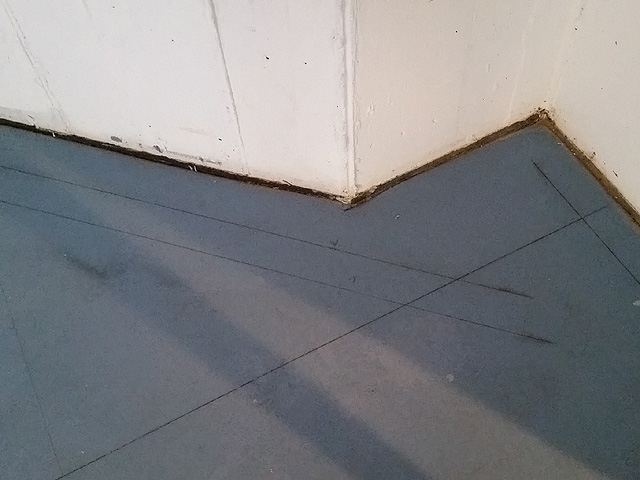

  Wall lines are marked on floor
•

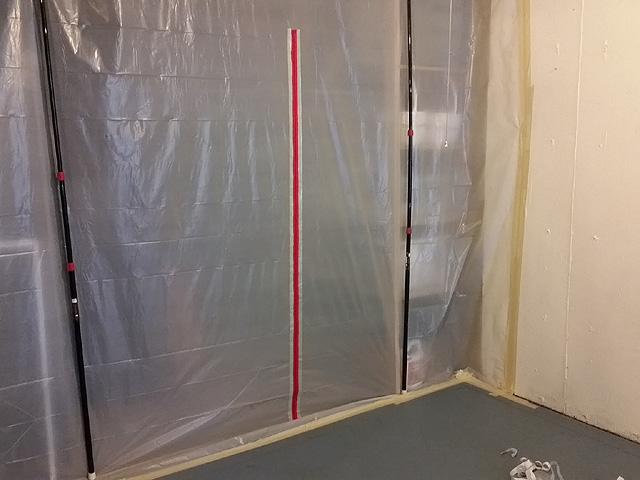

  Plastic barrier to protect storage room
